STEERING HEAD

4-64

EAS23090

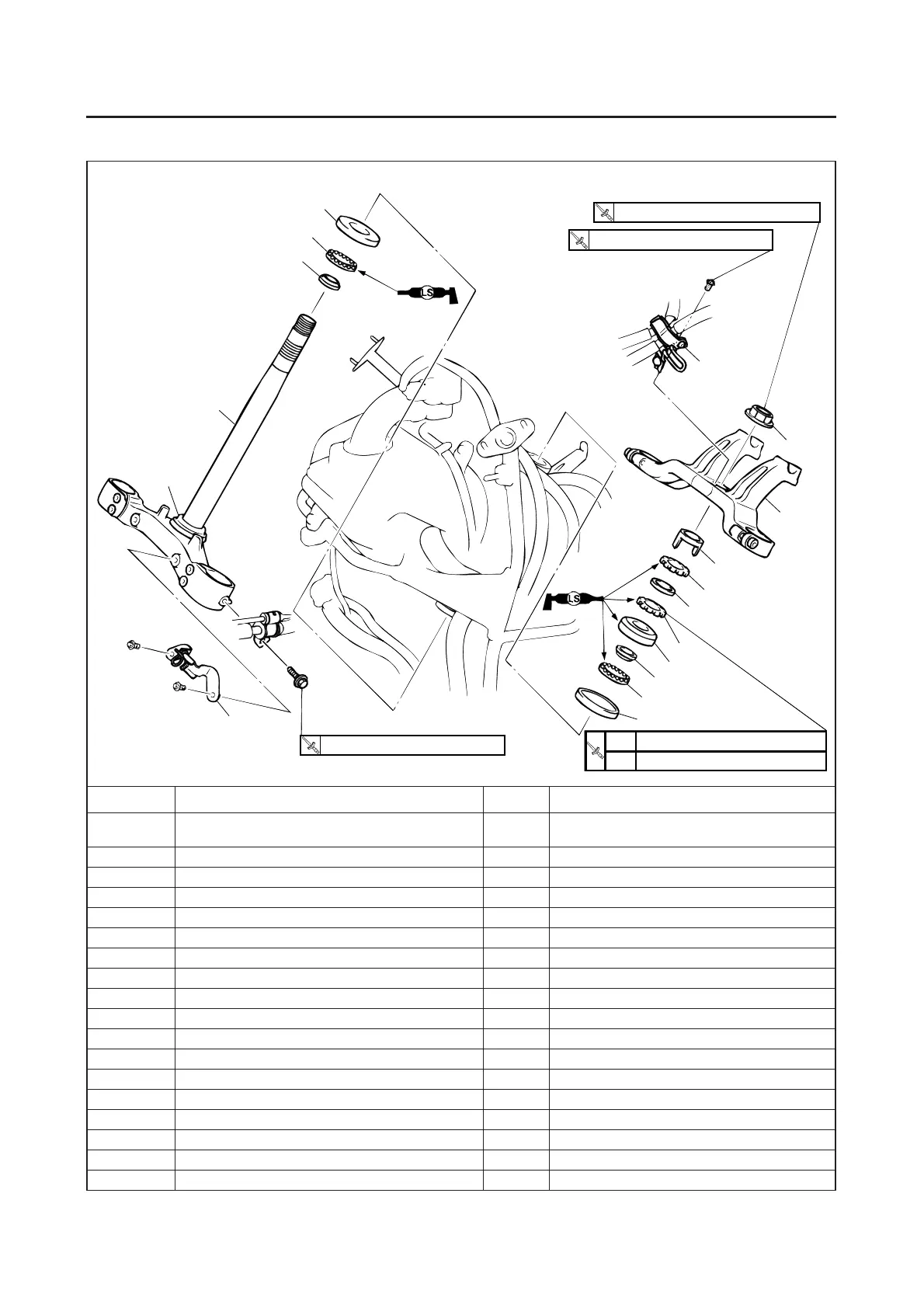

STEERING HEAD

Removing the lower bracket

Order Job/Parts to remove Q’ty Remarks

Front cowling

Refer to “GENERAL CHASSIS” on page

4-1.

Front wheel Refer to “FRONT WHEEL” on page 4-6.

Front fork legs Refer to “FRONT FORK” on page 4-57.

Handlebar Refer to “HANDLEBAR” on page 4-53.

1 Horn bracket 1

2 Brake hose holder 1

3 Steering stem nut 1

4 Upper bracket 1

5 Lock washer 1

6 Upper ring nut 1

7 Rubber washer 1

8 Lower ring nut 1

9 Bearing cover 1

10 Bearing outer race 1

11 Upper bearing 1

12 Bearing inner race 1

13 Bearing outer race 1

14 Lower bearing 1

7 Nm (0.7 m • kg, 5.1 ft • Ib)

110 Nm (11.0 m • kg, 80 ft • Ib)

52 Nm (5.2 m • kg, 38 ft • Ib)

20 Nm (2.0 m • kg, 15 ft • Ib)

1st

2nd
