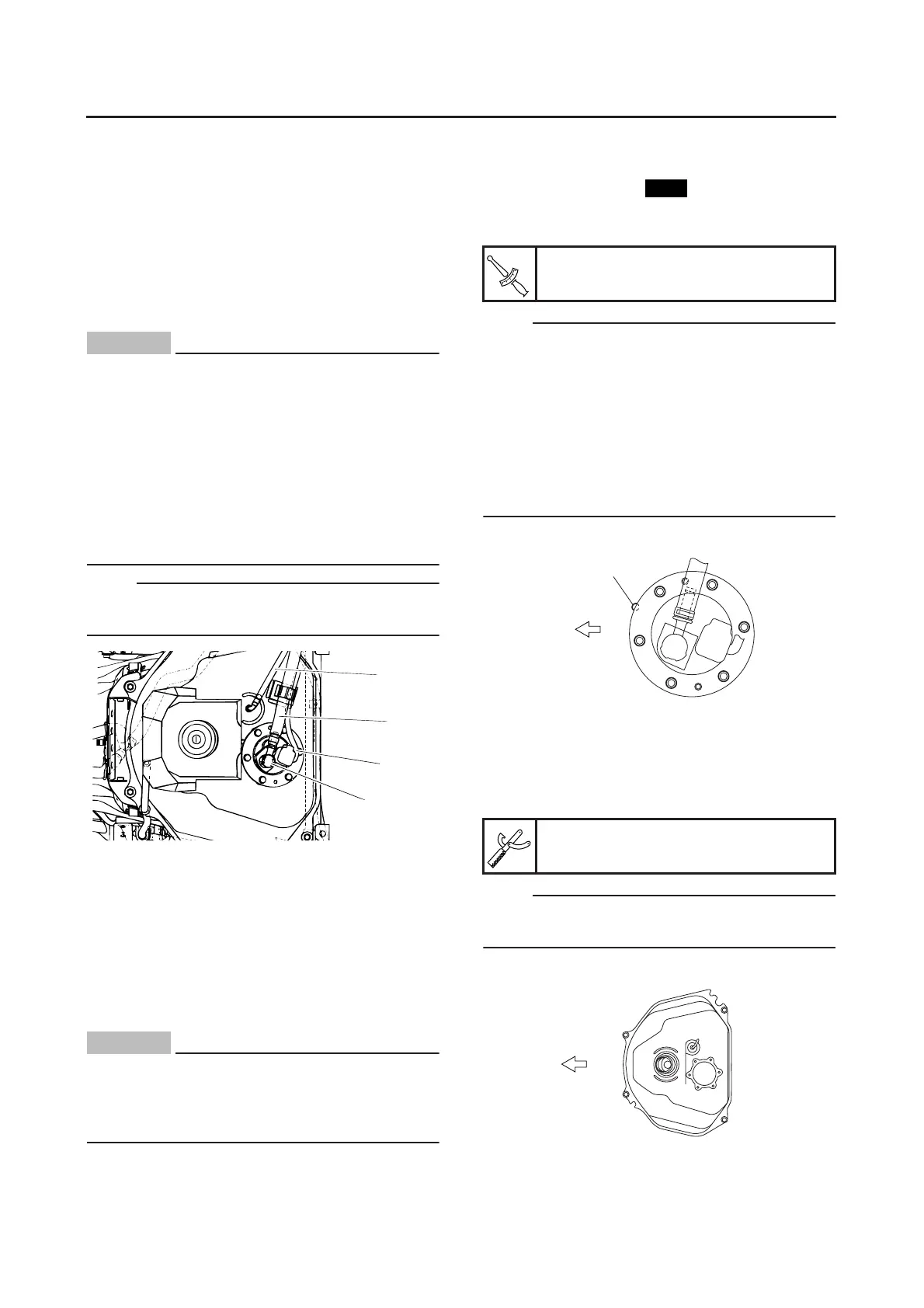

FUEL TANK
7-2
EAS26630
REMOVING THE FUEL TANK
1. Extract the fuel in the fuel tank through the
fuel tank cap with a pump.
2. Remove:
● Fuel hose connector cover “1”
3. Disconnect:
● Fuel hose “2”
● Fuel pump coupler “3”
● Fuel tank breather hose “4”
CAUTION:
ECA15B1031
● Be sure to disconnect the fuel hose by
hand. Do not forcefully disconnect the
hose with tools.
● Although the fuel has been removed from
the fuel tank, be careful when removing the
fuel hoses, since there may be fuel remain-
ing in it.
● Do not disconnect the fuel hose except the
fuel hose connector of the fuel pump feed-
ing side.
NOTE:
Before removing the hoses, place a few rags in
the area under where it will be removed.
4. Remove:
● Fuel tank
EAS26640
REMOVING THE FUEL PUMP
1. Remove:
● Fuel pump bracket
● Fuel pump
● Fuel pump gasket
CAUTION:
ECA14720
● Do not drop the fuel pump or give it a
strong shock.
● Do not touch the base section of the fuel
sender.
EAS26710
INSTALLING THE FUEL PUMP
1. Install:
● Fuel pump gasket
● Fuel pump
● Fuel pump bracket
NOTE:
● Do not damage the installation surfaces of the
fuel tank when installing the fuel pump.
● Always use a new fuel pump gasket.
● Align the projection “a” on the fuel pump with
the projection in the fuel tank.
● Tighten the bolts to the specified torque in the
proper tightening sequence as shown.
● Install the fuel pump in the direction shown in
the illustration.
EAS15B4013
INSTALLING THE FUEL TANK
1. Install:
● Fuel tank
NOTE:
Tighten the bolts to the specified torque in the
proper tightening sequence as shown.
2. Connect:
● Fuel hose
4
2
3
1
Fuel pump bracket bolt
4 Nm (0.4 m•kg, 2.9 ft • lb)
Fuel tank bolt
10 Nm (1.0 m•kg, 7.2 ft•lb)
New
T
R
.
.
1
2
3
4
5
6
FWD
a
1
2
3
4
FWD
To Next Page
