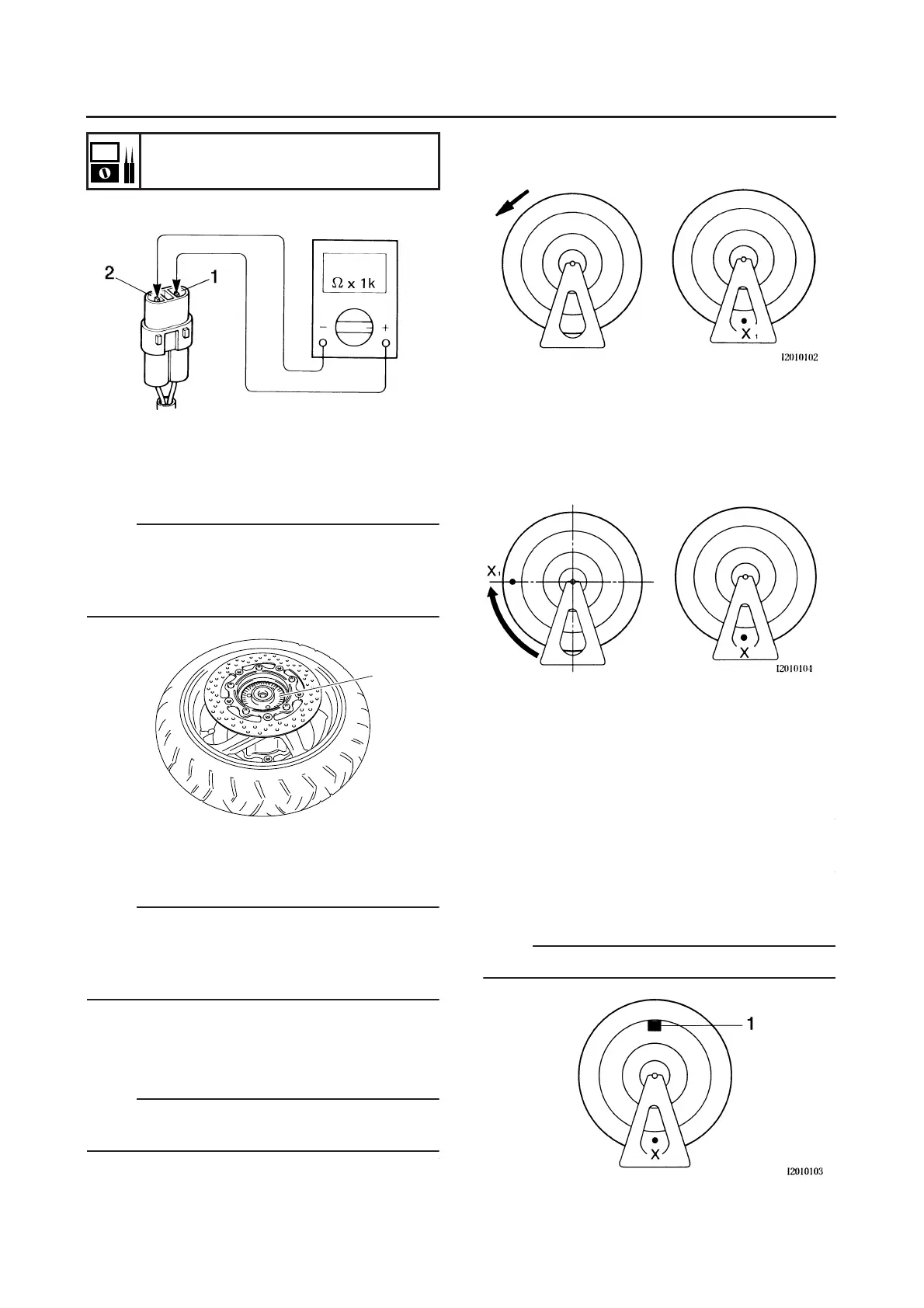

FRONT WHEEL
4-12
Out of specification → Replace.
3. Check:
● Front wheel sensor rotor “1”
Cracks/damage → Replace the front wheel
assembly.
NOTE:
The wheel sensor rotor of the vehicle is inserted
under pressure by a special process and cannot
be replaced as a single unit. To replace the sen-
sor rotor, replace the wheel assembly.
EAS21970
ADJUSTING THE FRONT WHEEL STATIC
BALANCE
NOTE:
● After replacing the tire, wheel or both, the front
wheel static balance should be adjusted.
● Adjust the front wheel static balance with the
brake disc installed.
1. Remove:
● Balancing weight(s)
2. Find:
● Front wheel’s heavy spot
NOTE:
Place the front wheel on a suitable balancing
stand.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Spin the front wheel.
b. When the front wheel stops, put an “X
1
” mark
at the bottom of the wheel.
c. Turn the front wheel 90° so that the “X
1
” mark
is positioned as shown.
d. Release the front wheel.
e. When the wheel stops, put an “X
2
” mark at
the bottom of the wheel.
f. Repeat steps (d) through (f) several times un-
til all the marks come to rest at the same spot.
g. The spot where all the marks come to rest is
the front wheel’s heavy spot “X”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Adjust:
● Front wheel static balance
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install a balancing weight “1” onto the rim ex-
actly opposite the heavy spot “X”.
NOTE:
Start with the lightest weight.
Regulated resistance
1.2–1.6 kΩ at 20°C (68°F)
1
To Next Page
