STEERING HEAD

4-67

▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

▲

4. Check:

● Upper bracket

● Lower bracket

(along with the steering stem)

Bends/cracks/damage → Replace.

EAS23140

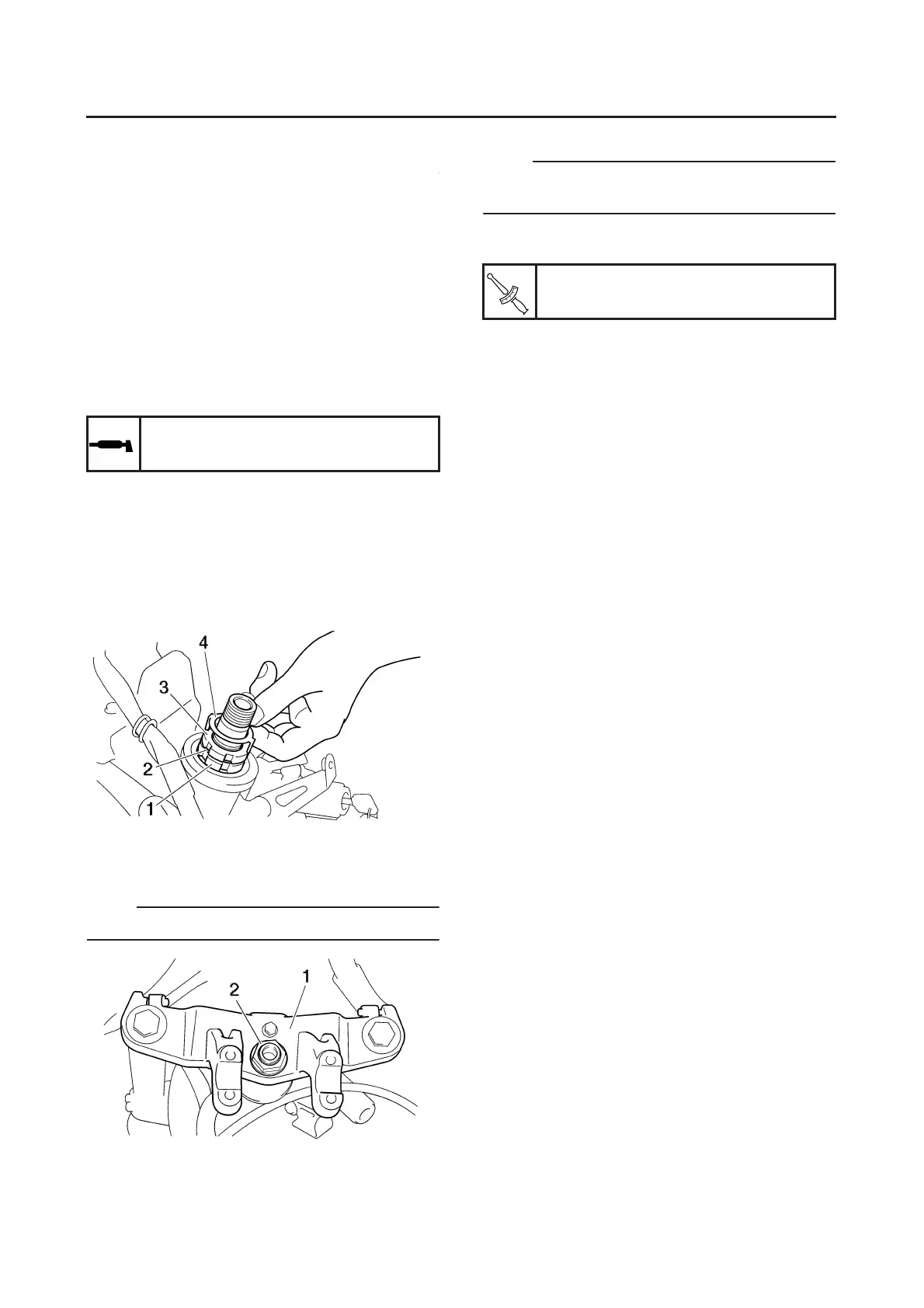

INSTALLING THE STEERING HEAD

1. Lubricate:

● Upper bearing

● Lower bearing

● Bearing races

2. Install:

● Lower ring nut “1”

● Rubber washer “2”

● Upper ring nut “3”

● Lock washer “4”

Refer to “CHECKING AND ADJUSTING

THE STEERING HEAD” on page 3-27.

3. Install:

● Upper bracket “1”

● Steering stem nut “2”

NOTE:

Temporarily tighten the steering stem nut.

4. Install:

● Front fork legs

Refer to “FRONT FORK” on page 4-57.

NOTE:

Temporarily tighten the upper and lower bracket

pinch bolts.

5. Tighten:

● Steering stem nut “2”

Recommended lubricant

Lithium-soap-based grease

Steering stem nut

110 Nm (11.0 m•kg, 80 ft•lb)
