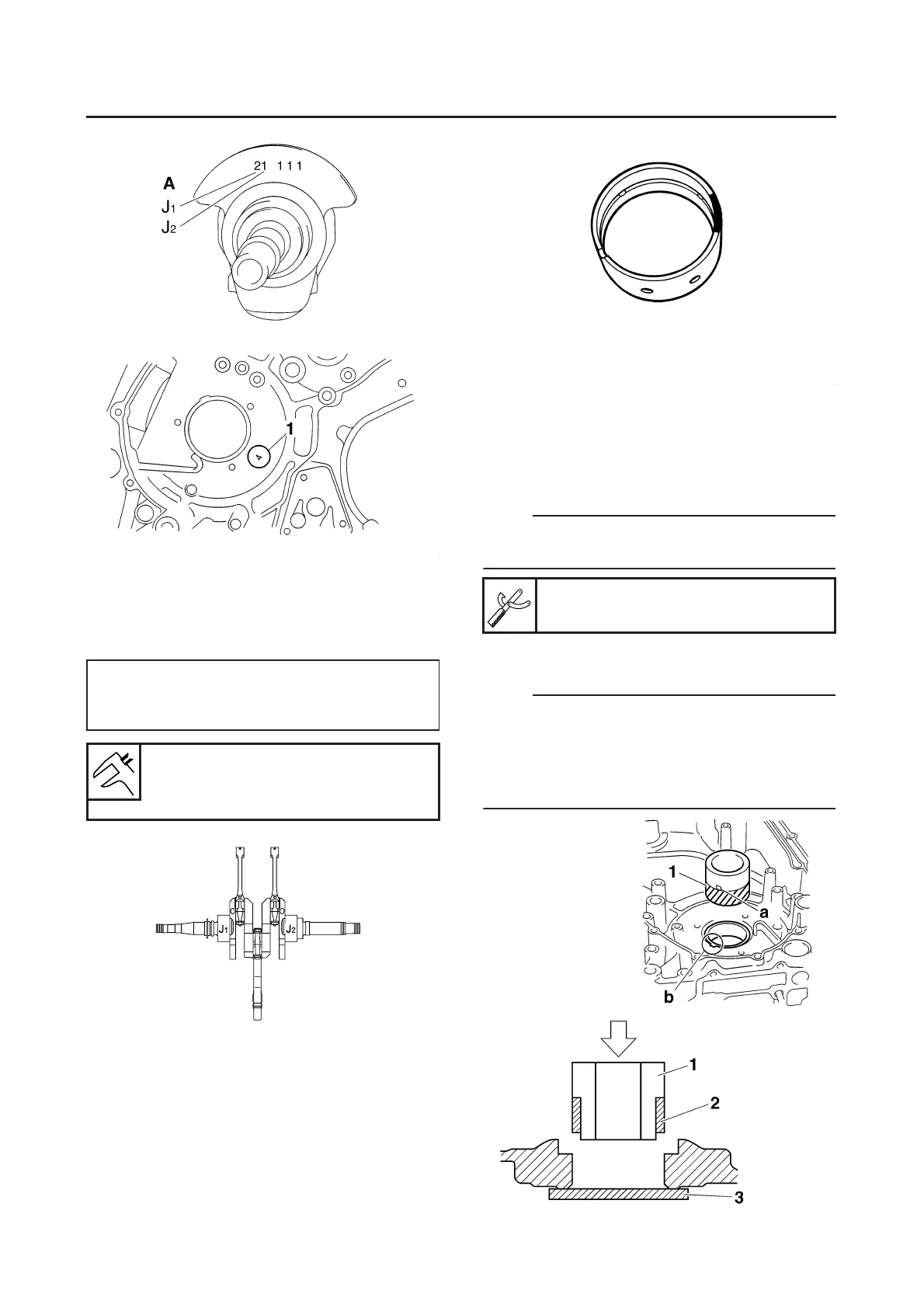

CRANKCASE AND CRANKSHAFT

5-66

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

▼

a. For example, if the crankcase “J1”and the

crankshaft web “J1” numbers are “4” and “2”

respectively, then the bearing size for “J1” is:

Bearing size for “J1”:

▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

▲

EAS25630

INSTALLING THE CRANKSHAFT MAIN

JOURNAL BEARING

1. Attach:

● Crankshaft main journal bearings

NOTE:

Attach the crankshaft main journal bearing to the

plane bearing installer “1”.

2. Install:

● Crankshaft main journal bearings “2”

NOTE:

● Align the projection “a” on the bearing with the

projection “b” on the crankcase.

● Place an iron “3” plate beneath the crankcase

and press fit until the end of the plain bearing

installer touches the iron plate.

“J1” (crankcase)–

“J1” (crankshaft web) =

4–2 = (black)

Bearing color code

1.Blue, 2.Black, 3.Brown,

4.Green

Plane bearing installer

90890-04139
