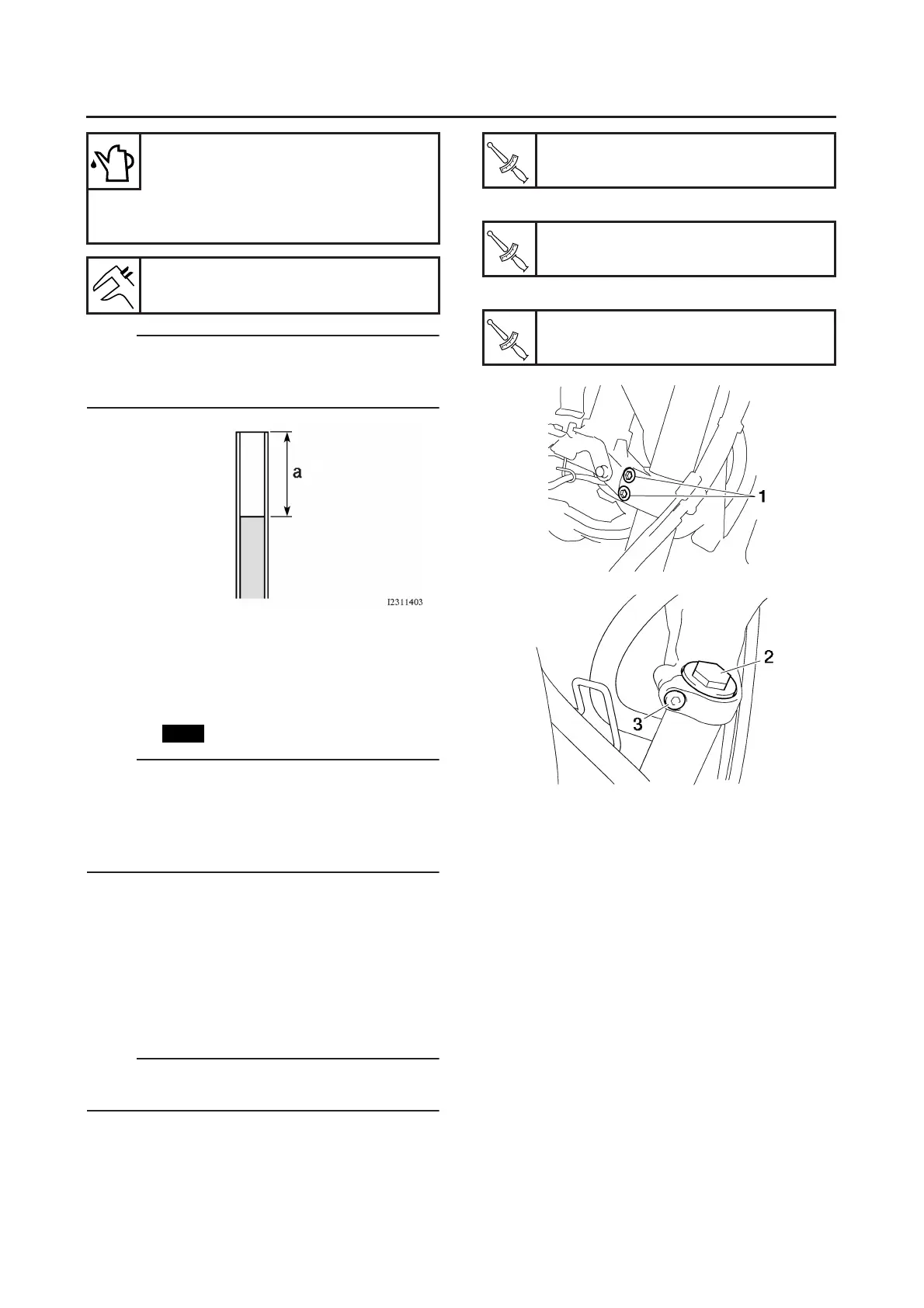

FRONT FORK
4-63
NOTE:
● While filling the front fork leg, keep it upright.
● After filling, slowly pump the front fork leg up
and down to distribute the fork oil.
11.Install:
● Spring
● Spring seat
● Spacer
● Cap bolt
● O-ring
NOTE:
● Install the spring with the smaller pitch facing
down.
● Before installing the cap bolt, lubricate its
O-ring with grease.
● Temporarily tighten the cap bolt.
EAS23050
INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Install:
● Front fork leg
Temporarily tighten the upper and lower
bracket pinch bolts.
NOTE:
Make sure the inner fork tube is flush with the top
of the handlebar holder.
2. Tighten:
● Lower bracket pinch bolt “1”
● Cap bolt “2”
● Upper bracket pinch bolt “3”
Quantity
512.0 cm
3
(17.31 US oz) (18.06
Imp.oz)
Recommended oil
Fork oil 7.5W or equivalent
Level
109.0 mm (4.29 in)
New
Lower bracket pinch bolt
23 Nm (2.3 m•kg, 17 ft•lb)
Cap bolt
24 Nm (2.4 m•kg, 17 ft•lb)
Upper bracket pinch bolt
30 Nm (3.0 m•kg, 22 ft•lb)
T
R
.
.
T
R
.
.
T
R
.
.
