GENERATOR AND STARTER CLUTCH
5-30
EAS24480
GENERATOR AND STARTER CLUTCH

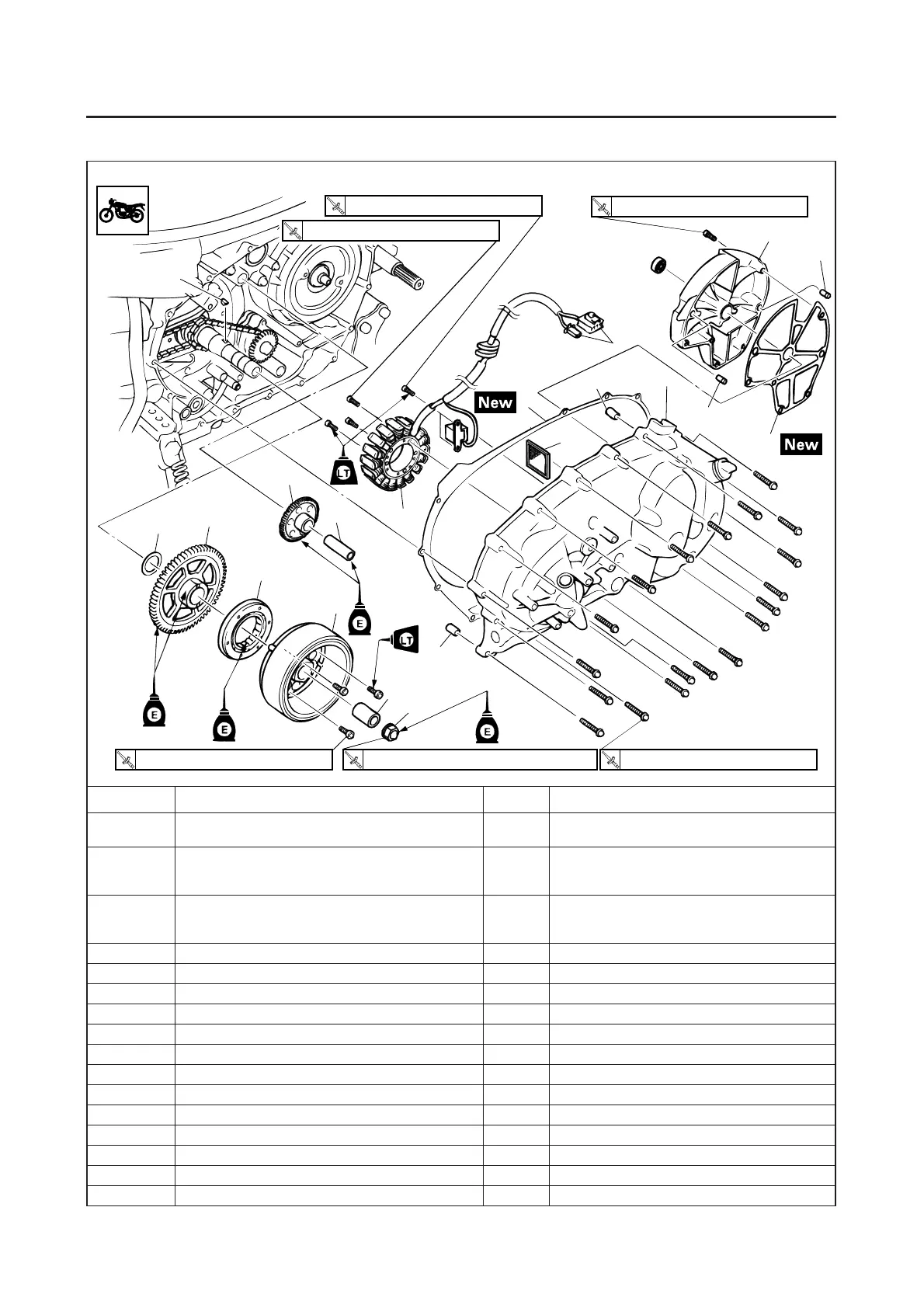

Removing the starter clutch and A.C. magneto rotor
Order Job/Parts to remove Q’ty Remarks
Left side panel/lower side cover moulding/foot-
rest board
Refer to “GENERAL CHASSIS” on page
4-1.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-19.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-13.
Water pump assembly Refer to “WATER PUMP” on page 6-7.
1 Starter coil assembly coupler 2 Disconnect.
2 A.C. magneto cover 1
3 A.C. magneto cover gasket 1
4 Dowel pin 2
5 Oil tank 1
6 Gasket 1
7 Dowel pin 2
8 Oil strainer 1
9 Starter coil assembly 1
10 A.C. magneto rotor nut 1
11 Spacer 1
12 A.C. magneto rotor 1
18
17
13
16
15
12
11
10
4
9
3
8
4
1
2
7
6
5
7
(7)
14
10 Nm (1.0 m • kg, 7.2 ft • Ib)
60 Nm (6.0 m • kg, 43 ft • Ib) + 120˚
30 Nm (3.0 m • kg, 22 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
7 Nm (0.7 m • kg, 5.1 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
