FRONT FORK
4-59
EAS22960

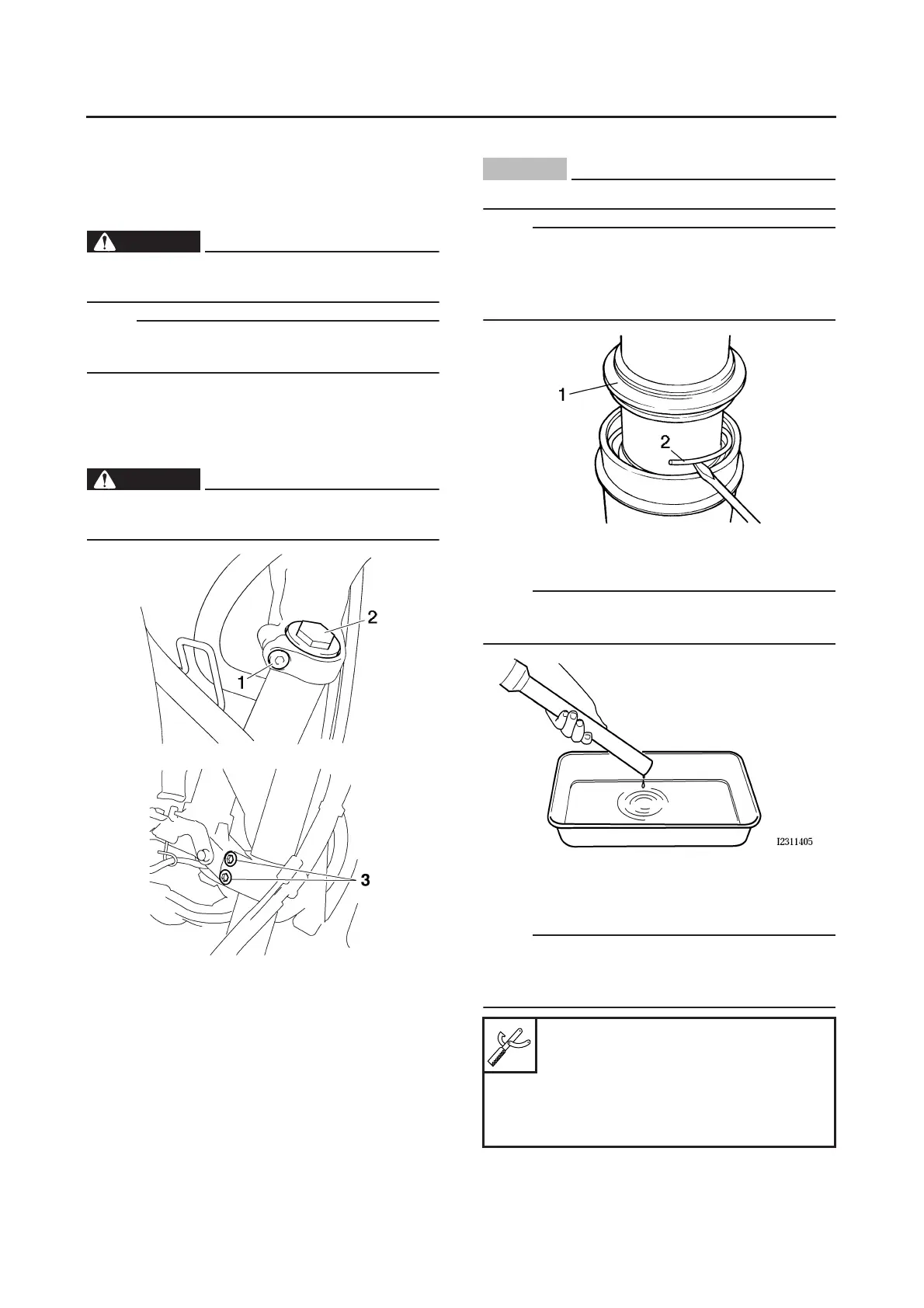

REMOVING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
front wheel is elevated.
2. Loosen:
● Upper bracket pinch bolt “1”
● Cap bolt “2”
● Lower bracket pinch bolt “3”
WARNING
EWA13640
Before loosening the upper and lower brack-
et pinch bolts, support the front fork leg.
3. Remove:
● Front fork leg
EAS22980
DISASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Remove:
● Dust seal “1”
● Oil seal clip “2”
(with a flat-head screwdriver)
CAUTION:
ECA14180
Do not scratch the inner tube.
NOTE:
● Do not remove the fork leg protector from the
outer tube.
● If the front fork leg protector must be removed,
always install a new one.
2. Drain:
● Fork oil
NOTE:
Stroke the outer tube several times while drain-
ing the fork oil.
3. Remove:
● Damper rod assembly bolt
● Copper washer
NOTE:
While holding the damper rod assembly with the
damper rod holder “1” and T-handle “2”, loosen
the damper rod assembly bolt.
Damper rod holder
90890-01460
T-handle
90890-01326
T-handle 3/8" drive 60 cm long
YM-01326
