FUEL TANK

7-1

EAS26620

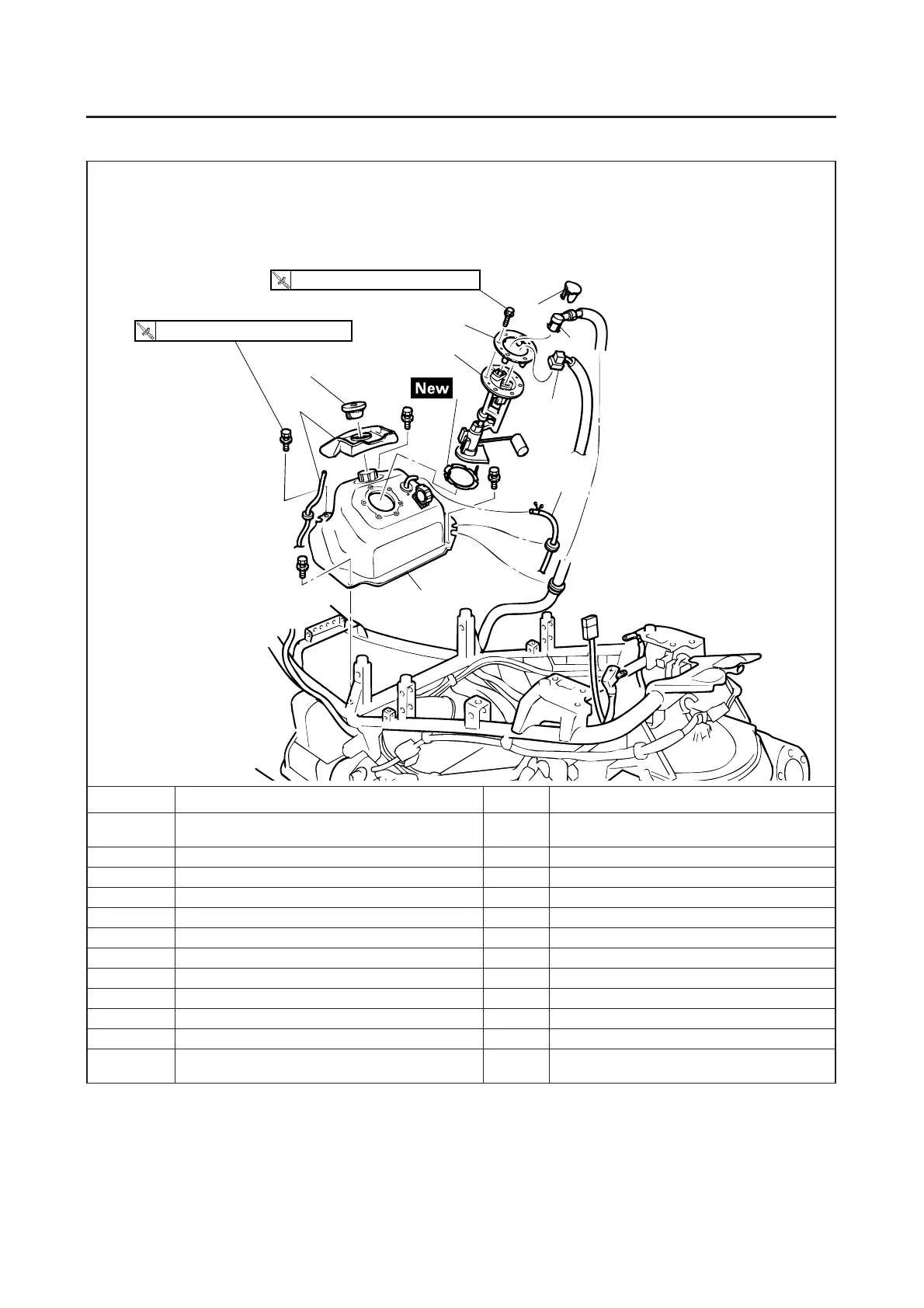

FUEL TANK

Removing the fuel tank

Order Job/Parts to remove Q’ty Remarks

Strage box

Refer to “GENERAL CHASSIS” on page

4-1.

1 Fuel pump coupler 1

2 Fuel hose connector cover 1

3 Fuel hose 1

4 Fuel tank breather hose 1

5 Fuel pump bracket 1

6 Fuel pump 1

7 Fuel pump gasket 1

8 Fuel tank cap 1

9 Fuel overﬂow tray/fuel over ﬂow hose 1/1

10 Fuel tank 1

For installation, reverse the removal proce-

dure.

10 Nm (1.0 m • kg, 7.2 ft • Ib)

4 Nm (0.4 m • kg, 2.9 ft • Ib)
