FRONT FORK

4-57

EAS22950

FRONT FORK

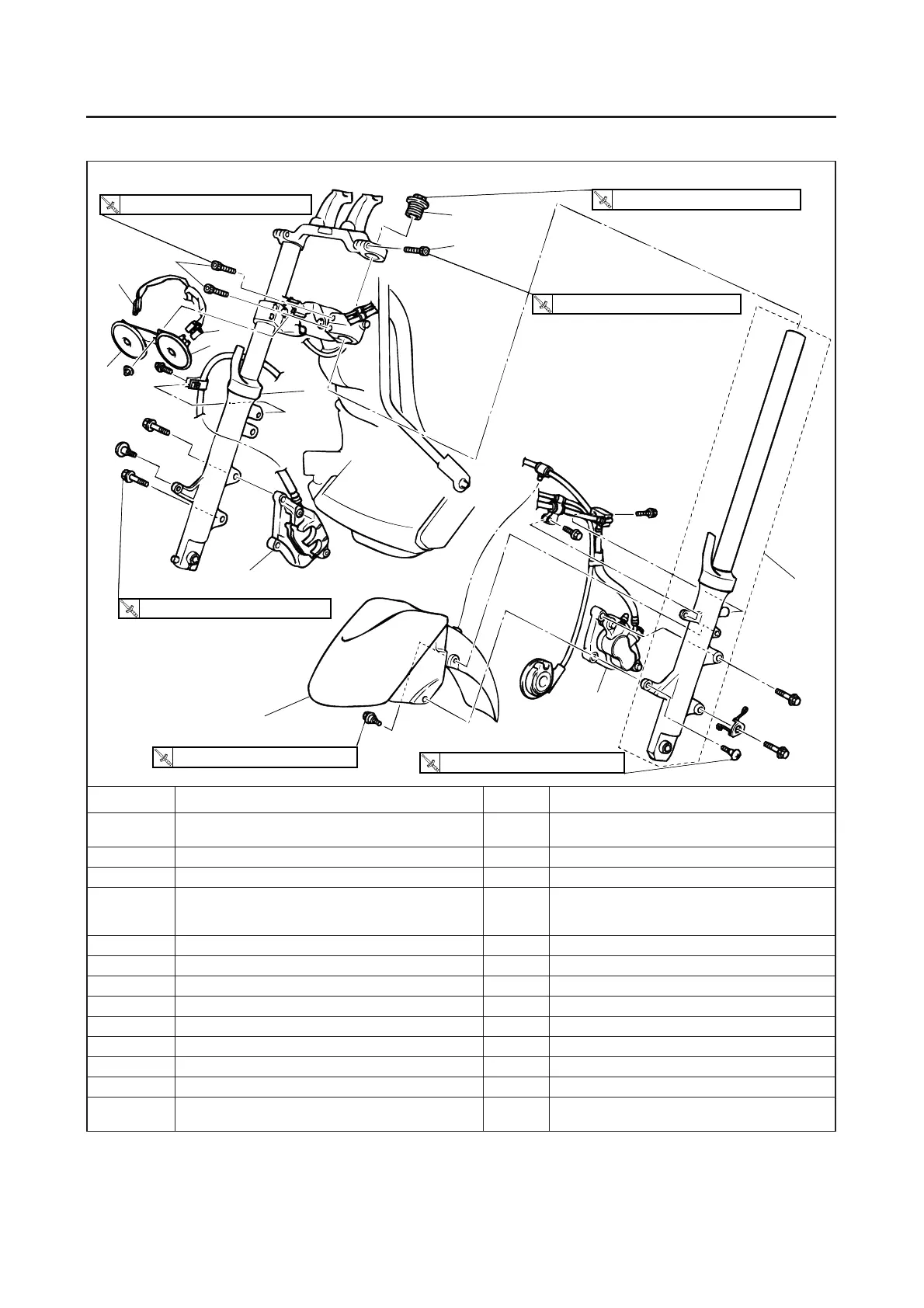

Removing the front fork legs

Order Job/Parts to remove Q’ty Remarks

Front cowling/leg shield

Refer to “GENERAL CHASSIS” on page

4-1.

Handlebar cover (upper and lower) Refer to “HANDLEBAR” on page 4-53.

Front wheel Refer to “FRONT WHEEL” on page 4-6.

ECU (ABS)

For XP500A

Refer to “ABS (ANTI-LOCK BRAKE SYS-

TEM) (XP500A)” on page 8-65.

1 Front fender 1

2 Front brake caliper 2

3 Horn coupler 2 Disconnect.

4 Horn 2

5 Upper bracket pinch bolt 2 Loosen.

6 Cap bolt 1 Loosen.

7 Lower bracket pinch bolt 4 Loosen.

8 Front fork leg 2

For installation, reverse the removal proce-

dure.

23 Nm (2.3 m • kg, 17 ft • Ib)

40 Nm (4.0 m • kg, 29 ft • Ib)

7 Nm (0.7 m • kg, 5.1 ft • Ib)

24 Nm (2.4 m • kg, 17 ft • Ib)

30 Nm (3.0 m • kg, 22 ft • Ib)
