FRONT WHEEL
4-13

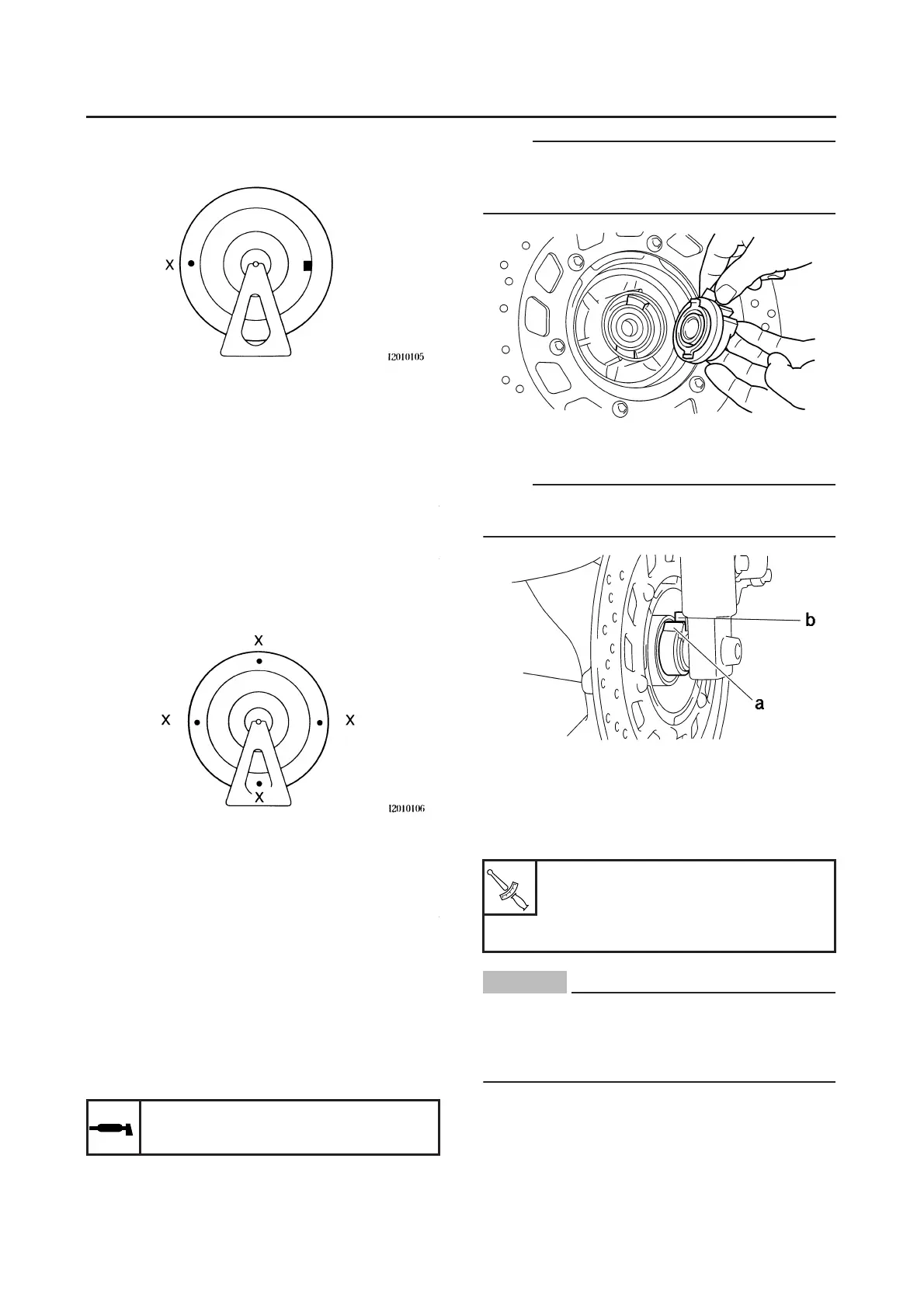

b. Turn the front wheel 90° so that the heavy
spot is positioned as shown.
c. If the heavy spot does not stay in that posi-
tion, install a heavier weight.
d. Repeat steps (b) and (c) until the front wheel
is balanced.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Check:
● Front wheel static balance
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the front wheel and make sure it stays at
each position shown.
b. If the front wheel does not remain stationary
at all of the positions, rebalance it.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS21990
INSTALLING THE FRONT WHEEL (XP500)
1. Lubricate:
● Wheel axle
● Wheel bearings
● Oil seal lips
● Speedometer drive gear
● Speedometer driven gear
2. Install:
● Speed sensor (to front wheel)
NOTE:
Make sure the speed sensor and the wheel hub
are installed with the two projections meshed
into the two slots respectively.
3. Install:
● Front wheel
NOTE:
Make sure the slot “a” in the speedometer gear
unit fits over the stopper “b” on the outer tube.
4. Tighten:
● Wheel axle “1”
Use the damper rod holder “2”
● Wheel axle pinch bolt “3”
● Brake caliper bolts
CAUTION:
ECA14140
Before tightening the wheel axle nut, push
down hard on the handlebar(s) several times
and check if the front fork rebounds smooth-
ly.
Recommended lubricant
Lithium-soap-based grease
Wheel axle
59 Nm (5.9 m•kg, 43 ft•lb)
Wheel axle pinch bolt
23 Nm (2.3 m•kg, 17 ft•lb)
T
R
.
.
