ABS (ANTI-LOCK BRAKE SYSTEM) (XP500A)

8-94

7. Turn the main switch off.

8. Disconnect the test coupler adaptor from the test coupler and install the protective cap onto the test

coupler.

NOTE:

Do not forget to install the protective cap onto the test coupler.

CAUTION:

ECA15B3027

Since the ECU (ABS) remains in the memory until the malfunction code is deleted, always delete

the malfunction code when the service work is finished.

EAS15B3038

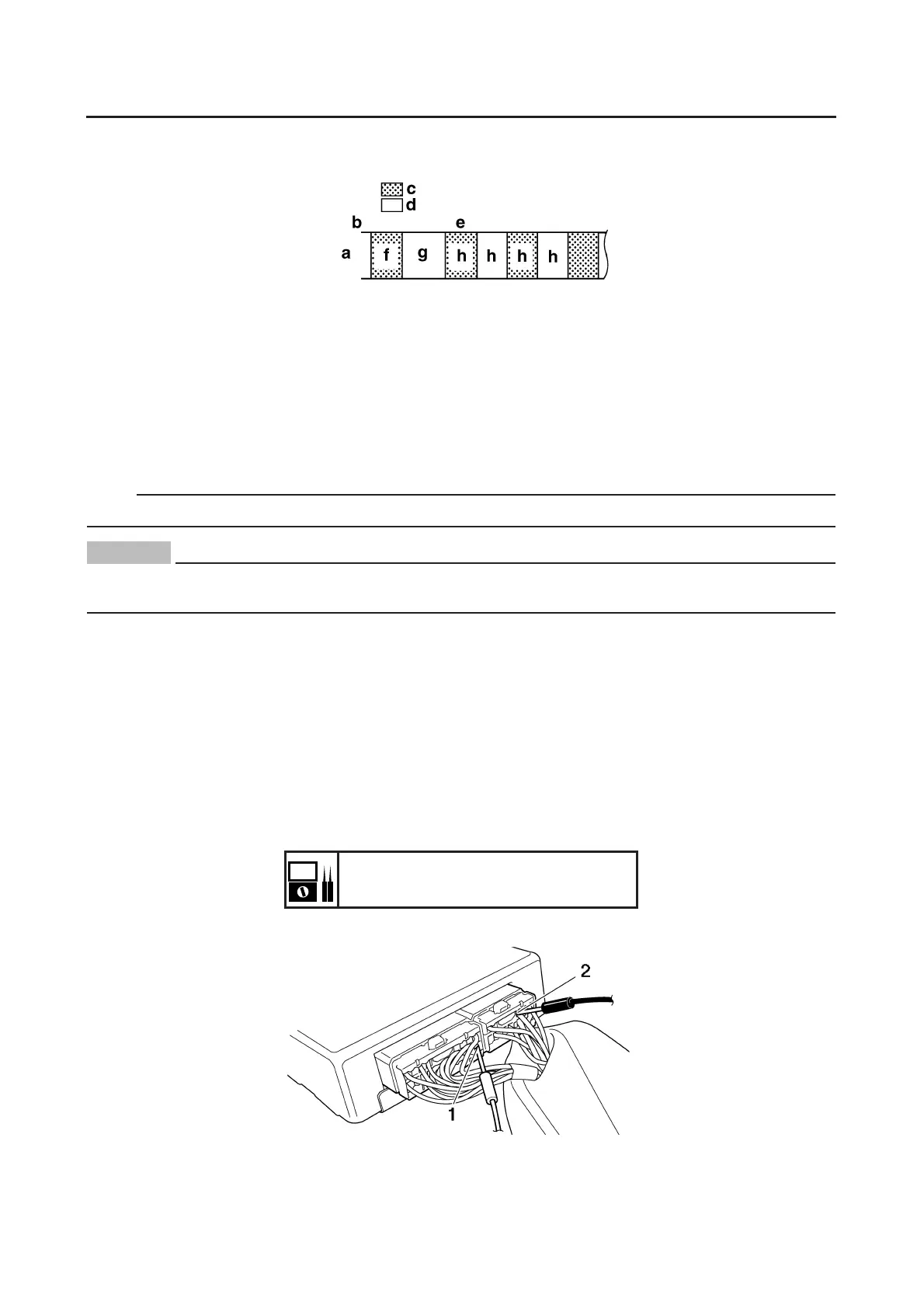

[D-6-6] DELETE FUNCTION TEST

1. Place the vehicle on the centerstand.

2. Set the main switch to “OFF”.

3. Connect the test coupler adapter to the test coupler.

4. Set the main switch to “ON”.

5. Check:

● ECU (ABS) voltage

Connect the pocket tester (DC 20 V) to the ECU (ABS) coupler.

Tester positive probe → Brown/White “1”

Tester negative probe → Black “2”

Lower than 12.8 V → Charge or replace the battery.

a. ABS warning light

b. ON

c. Main switch on

d. Main switch off

e. Flashing

f. 2 seconds

g. 3 seconds

h. 0.5 seconds

Battery voltage

Higher than 12.8 V
