Yamaha 2007 XP500 User Manual

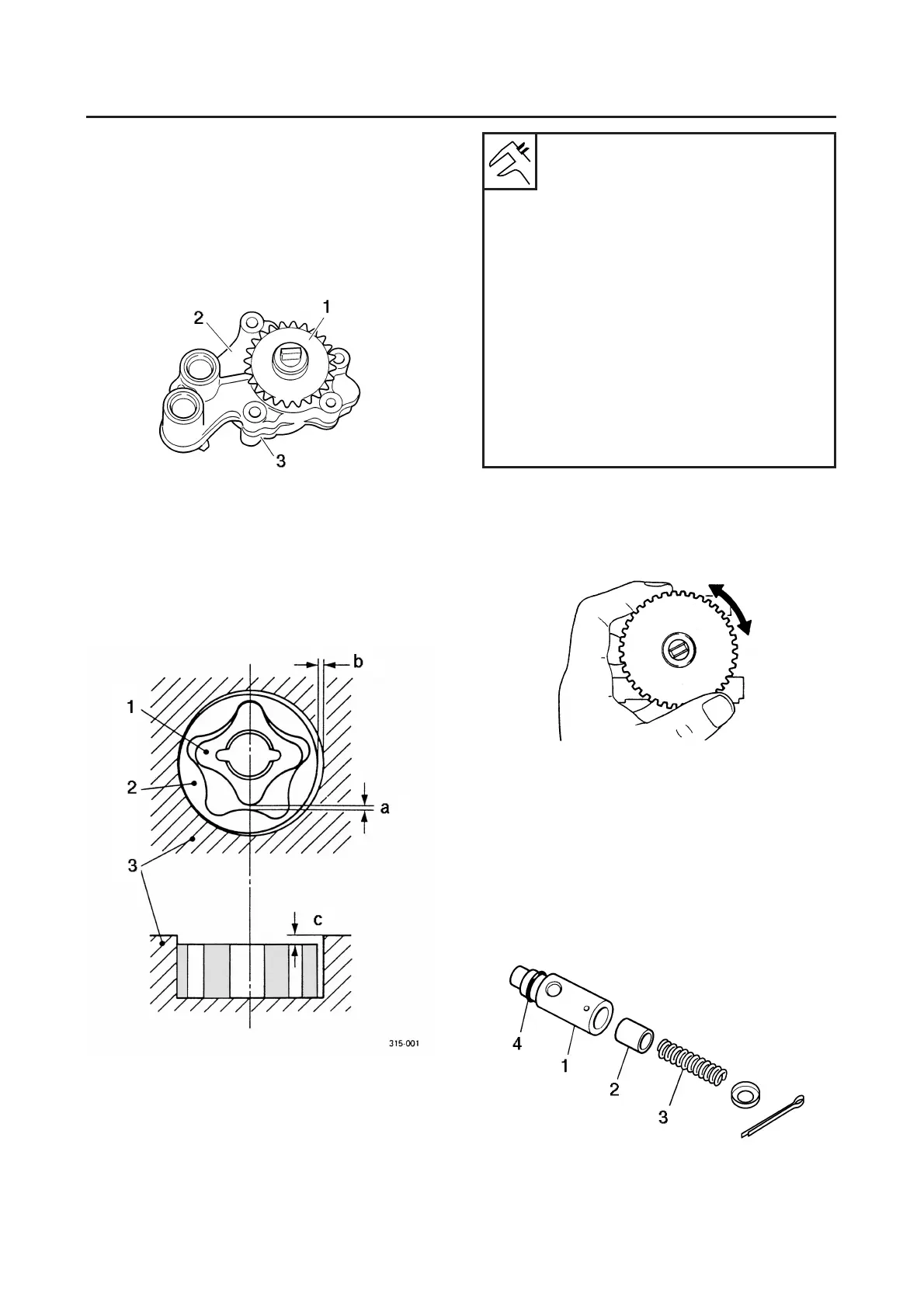

OIL PUMP
5-41
EAS24960
CHECKING THE OIL PUMP
1. Check:
● Oil pump drive gear “1”
● Oil pump housing “2”
● Oil pump cover “3”
Cracks/damage/wear → Replace the defec-
tive part(s).
2. Measure:
● Inner-rotor-to-outer-rotor-tip clearance “a”
● Outer-rotor-to-oil-pump-housing clearance
“b”
● Oil-pump-housing-to-inner-rotor-and-out-
er-rotor clearance “c”
Out of specification → Replace the oil pump.
3. Check:
● Oil pump operation
Rough movement → Repeat steps (1) and
(2) or replace the defective part(s).
EAS24970
CHECKING THE RELIEF VALVE
1. Check:
● Relief valve body “1”
● Relief valve “2”
● Spring “3”
● O-ring “4”
Damage/wear → Replace the defective
part(s).
1. Inner rotor
2. Outer rotor
3. Oil pump housing
Inner-rotor-to-outer-rotor-tip
clearance
0.040–0.120 mm (0.0016–0.0047
in)
Limit
0.20 mm (0.0079 in)
Outer-rotor-to-oil-pump-housing
clearance
0.045–0.085 mm (0.0018–0.0033
in)
Limit
0.155 mm (0.0061 in)
Oil-pump-housing-to-in-
ner-and-outer-rotor clearance
0.11–0.23 mm (0.0043–0.0091 in)
Limit
0.30 mm (0.0118 in)

Yamaha 2007 XP500 Specifications

General

Displacement	499 cc
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	120/70-15
Rear Tire	160/60-15
Seat Height	800mm
Wheelbase	1, 580 mm
Length	2, 230mm
Width	775 mm
Engine Type	Liquid-cooled, 4-stroke
Transmission	Automatic
Front Brake	Dual disc
Rear Brake	Single disc
Fuel Tank Capacity	15 liters
