ABS (Anti-Lock Brake System)
4-47
EAS22760
ABS (Anti-Lock Brake System)

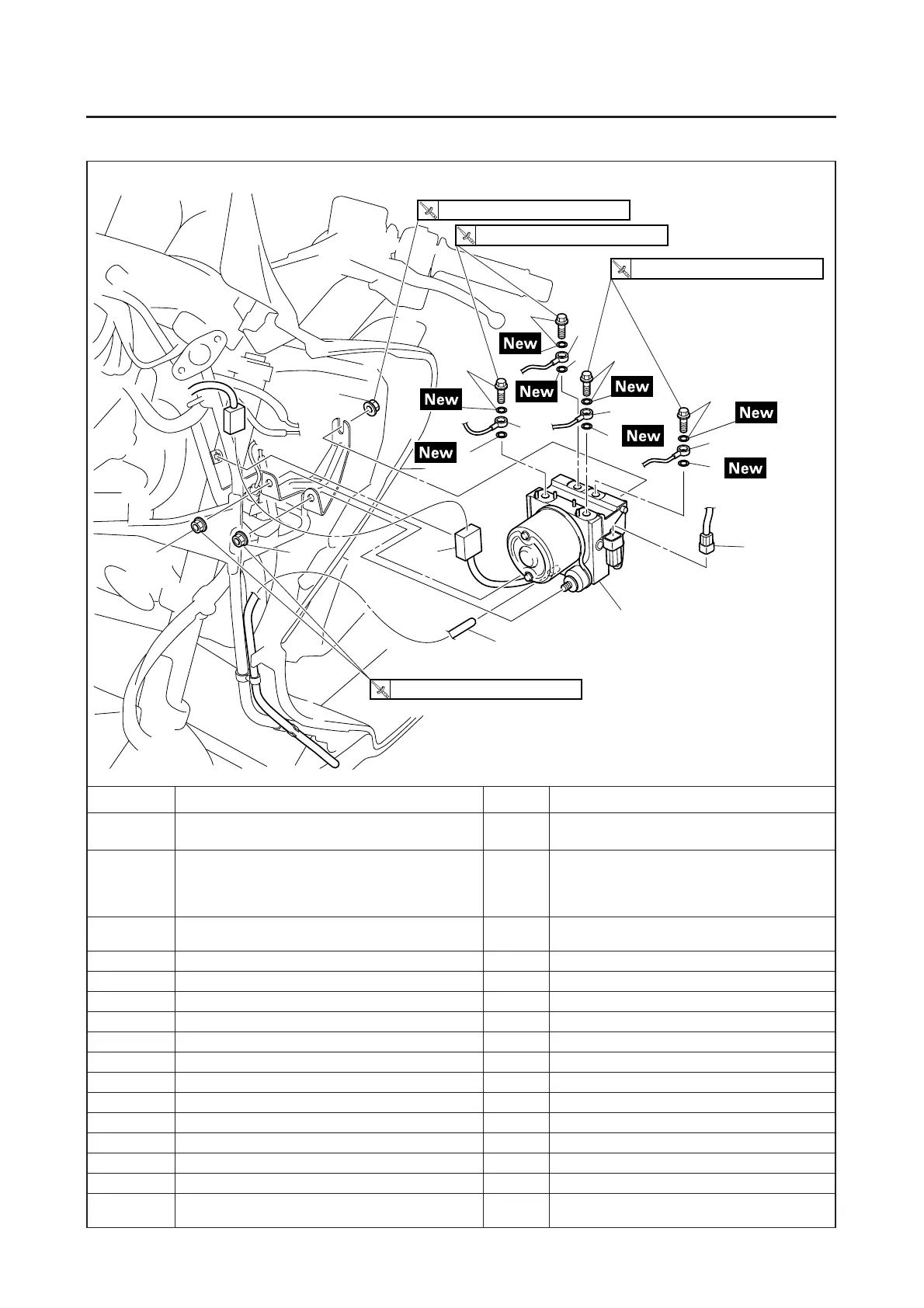

Removing the hydraulic unit
Order Job/Parts to remove Q’ty Remarks
Front cowling
Refer to
“GENERAL CHASSIS” on page
4-1.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (XP500)” on page
3-24.
1
Hydraulic unit solenoid coupler (wire harness
side)
1
2 ABS motor coupler 1
3 Union bolt/Copper washer 1/2
4 Front brake hose 1
5 Union bolt/Copper washer 1/2
6 Front brake hose 1
7 Union bolt/Copper washer 1/2
8 Rear brake hose 1
9 Union bolt/Copper washer 1/2
10 Rear brake hose 1
11 ABS motor breather hose 1
12 Nut 3
13 Hydraulic unit 1
For installation, reverse the removal proce-
dure.
5
6
5
3
4
3
7
8
7
9
10
9
1
13
11
2
12
12
12
30 Nm (3.0 m • kg, 22 ft • Ib)
16 Nm (1.6 m • kg, 12 ft • Ib)
30 Nm (3.0 m • kg, 22 ft • Ib)
16 Nm (1.6 m • kg, 12 ft • Ib)
