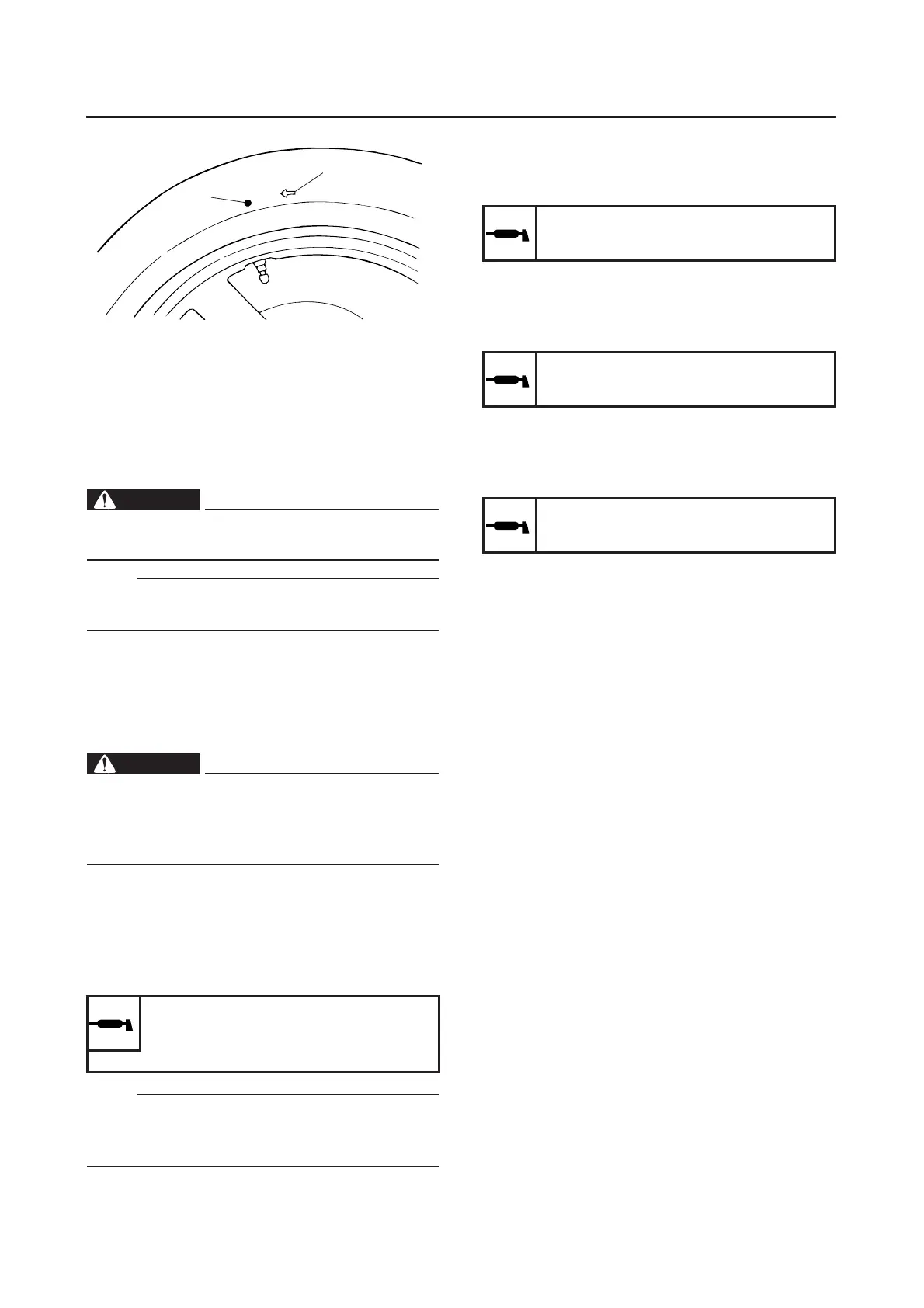

CHASSIS
3-31
EAS21670
CHECKING THE WHEELS
The following procedure applies to both of the
wheels.
1. Check:
● Wheel
Damage/out-of-round → Replace.
WARNING
EWA13260
Never attempt to make any repairs to the
wheel.
NOTE:
After a tire or wheel has been changed or re-
placed, always balance the wheel.
EAS21690
CHECKING AND LUBRICATING THE
CABLES
The following procedure applies to all of the in-
ner and outer cables.
WARNING
EWA13270
Damaged outer cable may cause the cable to
corrode and interfere with its movement. Re-
place damaged outer cable and inner cables
as soon as possible.
1. Check:
● Outer cable
Damage → Replace.
2. Check:
● Cable operation
Rough movement → Lubricate.
NOTE:
Hold the cable end upright and pour a few drops
of lubricant into the cable sheath or use a suit-
able lubricating device.
EAS21700
LUBRICATING THE LEVERS
Lubricate the pivoting point and metal-to-metal
moving parts of the levers.
EAS21720
LUBRICATING THE SIDESTAND
Lubricate the pivoting point and metal-to-metal
moving parts of the sidestand.
EAS21730
LUBRICATING THE CENTERSTAND
Lubricate the pivoting point and metal-to-metal
moving parts of the centerstand.
Recommended lubricant
Engine oil or a suitable cable lu-
bricant
2
1
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
