ELECTRICAL COMPONENTS
8-112
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS28050

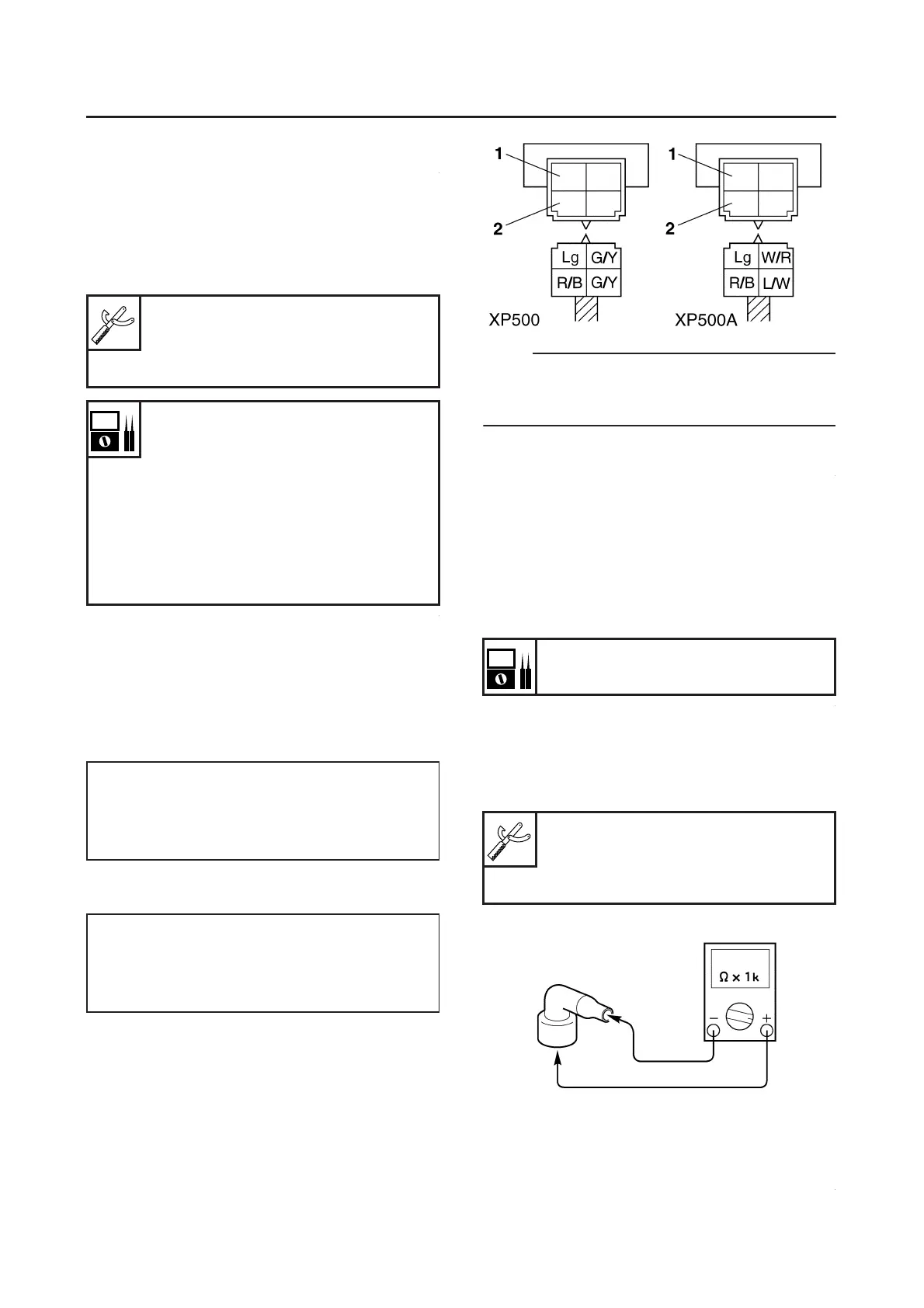

CHECKING THE DIODE
1. Check:
● Starting circuit cut-off relay 1 diode
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Disconnect the starting circuit cut-off relay 1
from the wire harness.
b. Connect the pocket tester (Ω× 1) to the start-
ing circuit cut-off relay 1 as shown.
c. Check the starting circuit cut-off relay 1 diode
for continuity.
d. Check the starting circuit cut-off relay diode
for no continuity.
NOTE:
When you switch the positive and negative
tester probes, the readings in the above chart
will be reversed.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS28070
CHECKING THE SPARK PLUG CAPS
The following procedure applies to all of the
spark plug caps.
1. Check:
● Spark plug cap resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the spark plug cap from the spark
plug lead.
b. Connect the pocket tester (Ω × 1k) to the
spark plug cap as shown.
c. Measure the spark plug cap resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
Continuity
Positive tester probe → Red/
Black “1”
Negative tester probe → Light
green “2”
No continuity
Positive tester probe → Red/
Black “2”
Negative tester probe → Light
green “1”
Positive tester probe
Light green “1”
Negative tester probe
Red/Black “2”
Positive tester probe
Red/Black “1”
Negative tester probe
Light green “2”
Resistance
10.0 kΩ
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
