ELECTRICAL COMPONENTS
8-120
abruptly → Replace the throttle position sen-
sor.
The slot is worn or broken → Replace the
throttle position sensor.
NOTE:
Check mainly that the resistance changes grad-
ually when turning the throttle, since the read-
ings (from closed to wide-open throttle) may
differ slightly from those specified.
g. Install the throttle position sensor.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS28410

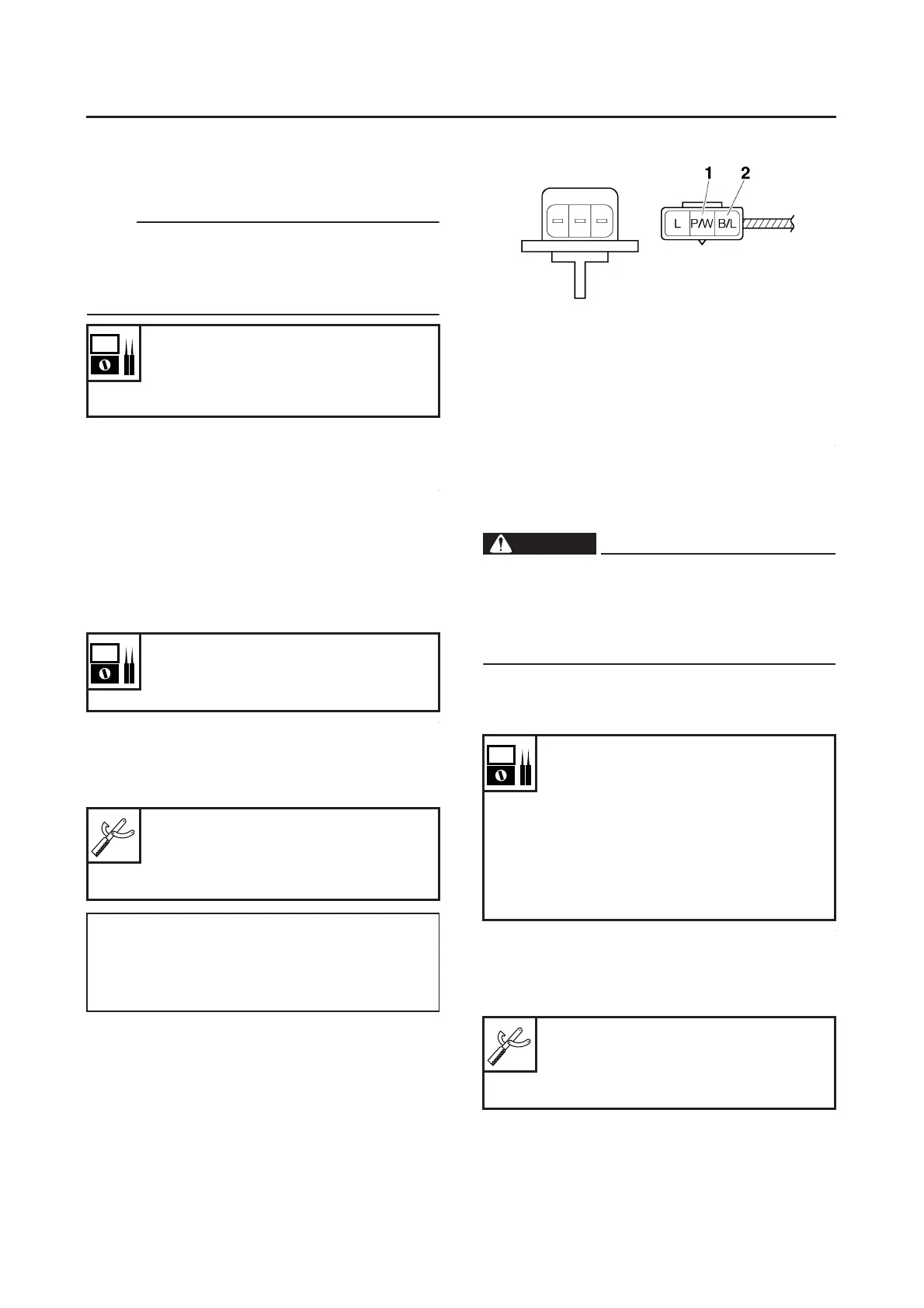

CHECKING THE INTAKE AIR PRESSURE
SENSOR
1. Check:
● Intake air pressure sensor output voltage
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (DC 20 V) to the in-
take air pressure sensor coupler (wire har-
ness side) as shown.
b. Turn the main switch to “ON”.
c. Measure the intake air pressure sensor out-
put voltage.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS28420
CHECKING THE INTAKE AIR
TEMPERATURE SENSOR
WARNING
EWA14110
● Handle the intake air temperature sensor
with special care.
● Never subject the intake air temperature
sensor to strong shocks. If the intake air
temperature sensor is dropped, replace it.
1. Check:
● Intake air temperature sensor voltage
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (DC 20V) to the in-
take air temperature sensor terminal as
shown.
Throttle position sensor resis-
tance
(0.52–0.9)–(4.0–6.0) kΩ at 20 °C
(68 °F) (Yellow–Black/Blue )
Intake air pressure sensor output
voltage
2.21–2.69 V at 20°C (68°F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
Tester positive probe
Brown/White “1”
Negative tester probe
Black/Blue “2”
Intake air temperature sensor
voltage
13.3kPa (0.13 kgf/cm
2
, 1.85 psi):
1.0 V
Intake air temperature sensor
voltage
120.0kPa (1.2 kgf/cm
2
, 17.1S
psi):
4.2 V
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
