RADIATOR
6-1
EAS26380
RADIATOR

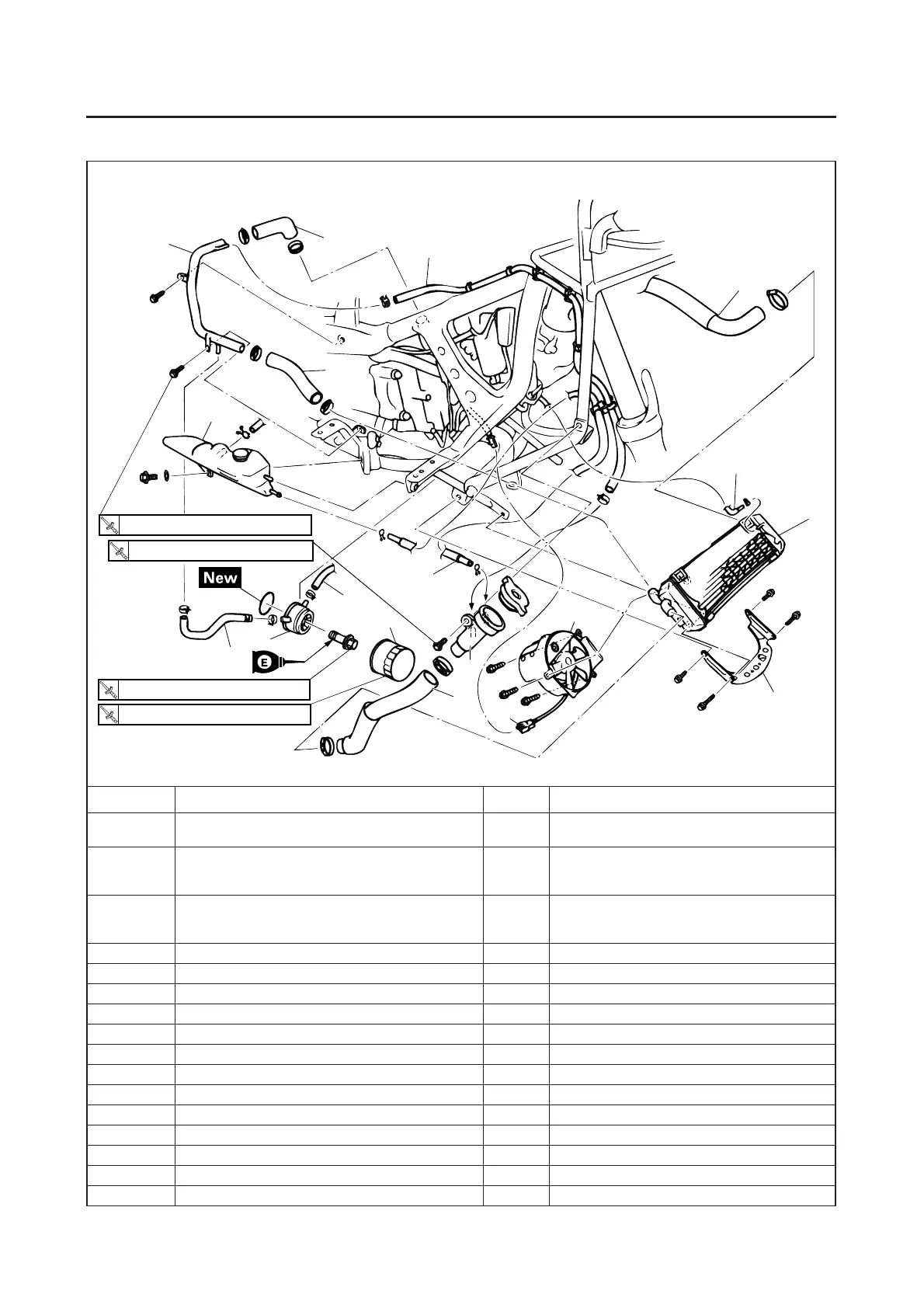

Removing the radiator
Order Job/Parts to remove Q’ty Remarks
Leg shield/footrest board/inner fender
Refer to “GENERAL CHASSIS” on page
4-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-13.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-19.
1 Coolant reservoir hose 1
2 Coolant reservoir 1
3 Cooling system air bleed hose 1
4 Oil cooler outlet hose 1
5 Radiator inlet hose 1
6 Thermostat outlet hose 1 Disconnect.
7 Coolant pipe 1
8 Fast idle outlet hose 1 Disconnect.
9 Radiator outlet hose 1 Disconnect.
10 Radiator fan motor coupler 1 Disconnect.
11 Radiator filler neck 1
12 Radiator filler hose 1
13 Stay 1
1
16
17
4
18
2
5
7
6
3
9
8
14
13
15
10
11
12
17 Nm (1.7 m • kg, 12 ft • Ib)
63 Nm (6.3 m • kg, 45 ft • Ib)
10 Nm (1.0 m • kg, 7.2 ft • Ib)
7 Nm (0.7 m • kg, 5.1 ft • Ib)

Yamaha 2007 XP500 Specifications

General

Displacement	499 cc
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	120/70-15
Rear Tire	160/60-15
Seat Height	800mm
Wheelbase	1, 580 mm
Length	2, 230mm
Width	775 mm
Engine Type	Liquid-cooled, 4-stroke
Transmission	Automatic
Front Brake	Dual disc
Rear Brake	Single disc
Fuel Tank Capacity	15 liters
