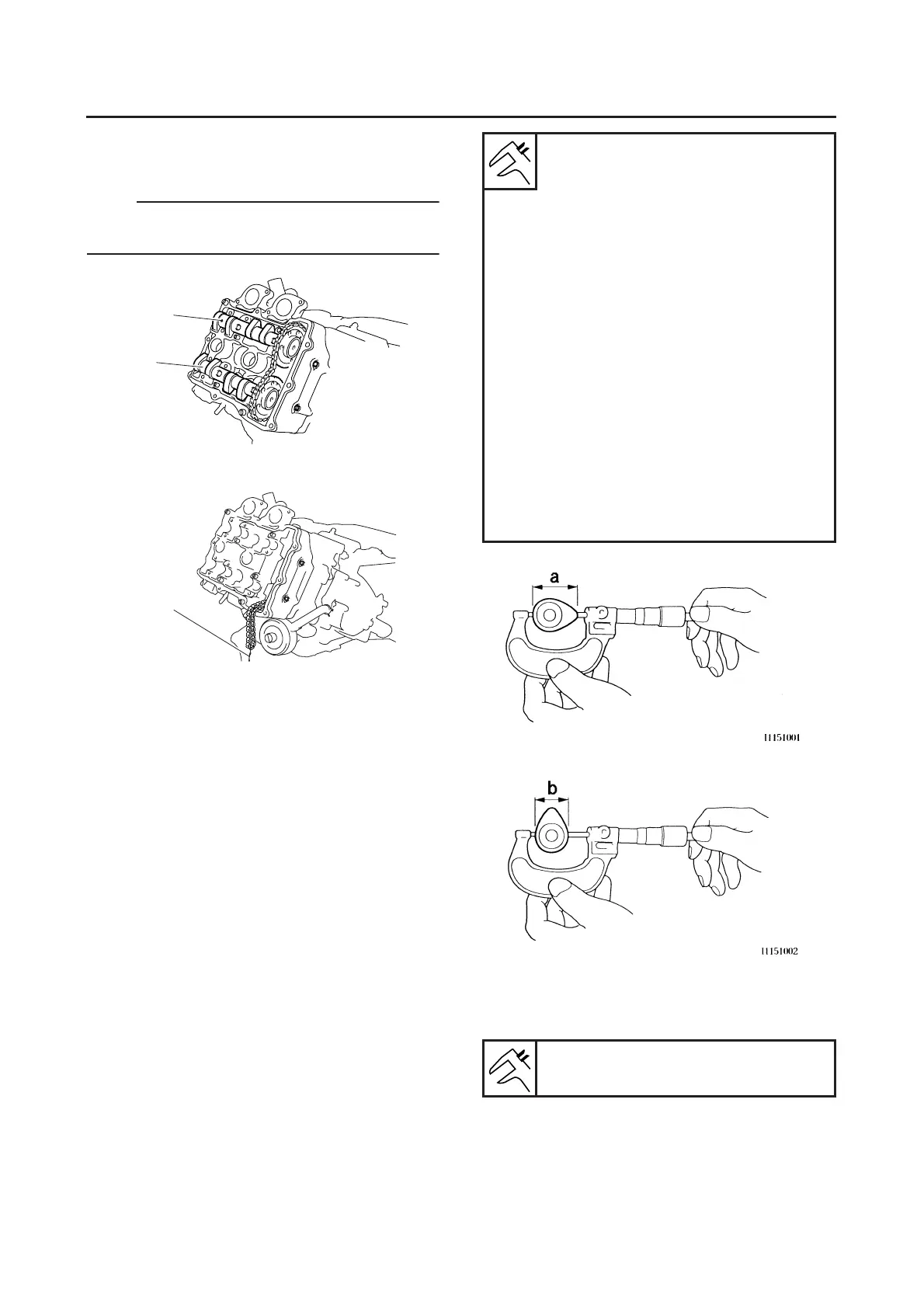

CAMSHAFTS
5-9
5. Remove:
● Intake camshaft “1”
● Exhaust camshaft “2”
NOTE:
To prevent the timing chain from falling into the
crankcase, faster it with a wire “3”.
6. Remove:
● Timing chain guide (exhaust side)
EAS23850
CHECKING THE CAMSHAFTS
1. Check:
● Camshaft lobes
Blue discoloration/pitting/scratches → Re-
place the camshaft.
2. Measure:
● Camshaft lobe dimensions “a” and “b”
Out of specification → Replace the camshaft.
3. Measure:
● Camshaft runout
Out of specification → Replace.
1
2
3
Camshaft lobe dimension limit
Intake A
33.252–33.352 mm
(1.3091–1.3131 in)
Limit
33.152 mm (1.3052 in)
Intake B
24.956–25.056 mm
(0.9825–0.9865 in)
Limit
24.856 mm (0.9786 in)
Exhaust A
33.252–33.352 mm
(1.3091–1.3131 in)
Limit
33.152 mm (1.3052 in)
Exhaust B
24.956–25.056 mm
(0.9825–0.9865 in)
Limit
24.856 mm (0.9786 in)
Camshaft runout limit
0.030 mm (0.0012 in)

Yamaha 2007 XP500 Specifications

General

Displacement	499 cc
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	120/70-15
Rear Tire	160/60-15
Seat Height	800mm
Wheelbase	1, 580 mm
Length	2, 230mm
Width	775 mm
Engine Type	Liquid-cooled, 4-stroke
Transmission	Automatic
Front Brake	Dual disc
Rear Brake	Single disc
Fuel Tank Capacity	15 liters
