FEATURES
1-15
EAS15B1001
MULTI-FUNCTION DISPLAY
WARNING
EWA12311
Be sure to stop the vehicle before making
any setting changes to the multi-function
display.

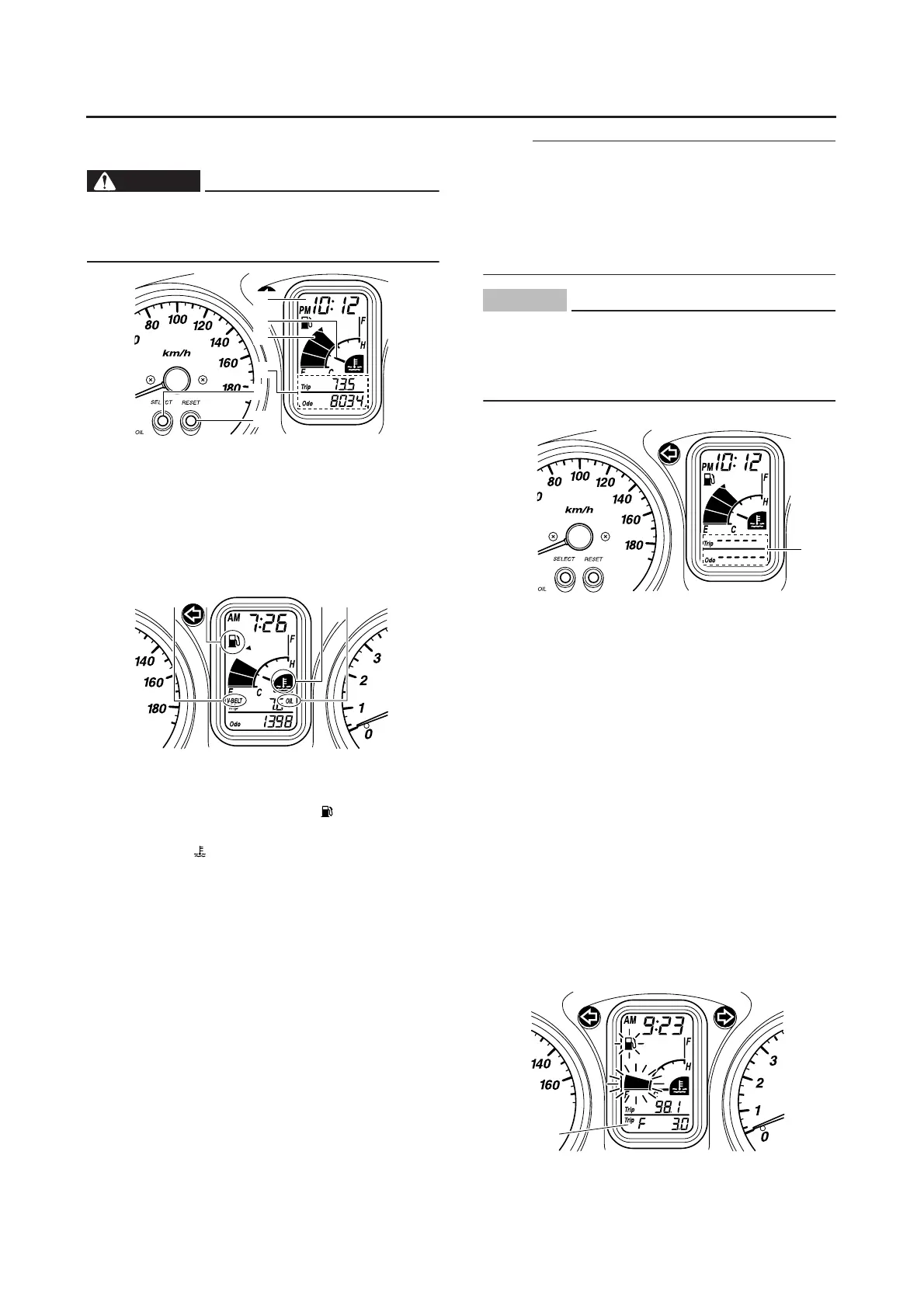

The multi-function display is equipped with the
following:
● a fuel meter
● a coolant temperature meter
● an odometer (which shows the total distance
traveled), two tripmeters (which show the dis-
tance traveled since they were last set to zero)
a fuel reserve tripmeter (which shows the dis-
tance traveled since the bottom segment of the
fuel meter and fuel level warning indicator
started flashing), a self-diagnosis device (en-
gine and ABS)
● a clock
● an oil change indicator
● a V-belt replacement indicator
NOTE:
● Be sure to turn the key to “ON” before using the
“SELECT” and “RESET” buttons.
● When the key is turned to “ON”, all of the dis-
play segments of the multi-function display will
appear one after the other and then disappear,
in order to test the electrical circuit.
CAUTION:
ECA15B1001
If bars “1” appear where the odometer and
tripmeters are normally displayed, the
multi-function display is malfunctioning.Re-
place the entire multi-function display.
Odometer and tripmeter modes
Pushing the “SELECT” button switches the dis-
play between the odometer mode “ODO” and
the tripmeter modes “TRIP” in the following or-
der:
ODO → TRIP (top) → TRIP (bottom) → ODO
When approximately 2.8 L (0.74 US gal) (0.62
Imp.gal) of fuel remains in the fuel tank, the bot-
tom segment of the fuel meter and fuel level
warning indicator will start flashing, and the dis-
play will automatically change to the fuel reserve
tripmeter mode “TRIP F” and start counting the
distance traveled from that point. In that case,
pushing the “SELECT” button switches the dis-
play between the various tripmeter and odome-
ter modes in the following order:
TRIP F → TRIP (top) → TRIP (bottom) → ODO
→ TRIP F
1. Clock
2. Coolant temperature meter
3. Fuel meter
4. Odometer/tripmeters
5. “SELECT” button
6. “RESET” button
1. V-belt replacement indicator
“V-BELT”
2. Fuel level warning indicator “”
3. Coolant temperature warning
indicator “”
4. Oil change indicator “OIL”
1
2
3
4
5
6
1
2
4
3
1. Fuel reserve tripmeter
1
1
To Next Page
