Dell PowerConnect 6224 User Manual

128 Configuring System Information
• If more than one Unicast device responds, synchronization information is preferred from the device
with the lowest stratum.
• If the servers have the same stratum, synchronization information is accepted from the SNTP server
that responded first.
MD5 (Message Digest 5) Authentication safeguards device synchronization paths to SNTP servers. MD5
is an algorithm that produces a 128-bit hash. MD5 is a variation of MD4, and increases MD4 security.
MD5 verifies the integrity of the communication, authenticates the origin of the communication.
The SNTP menu page contains links to pages that allow you to configure SNTP parameters.
To display the SNTP page, click System
→ SNTP in the tree view.
Use this page to go to the following features:
•SNTP Global Settings
• SNTP Authentication
•SNTP Server
SNTP Global Settings
Use the SNTP Global Settings page to view and adjust SNTP parameters.
To display the SNTP Global Settings
page, click System → SNTP → Global Settings in the tree view.

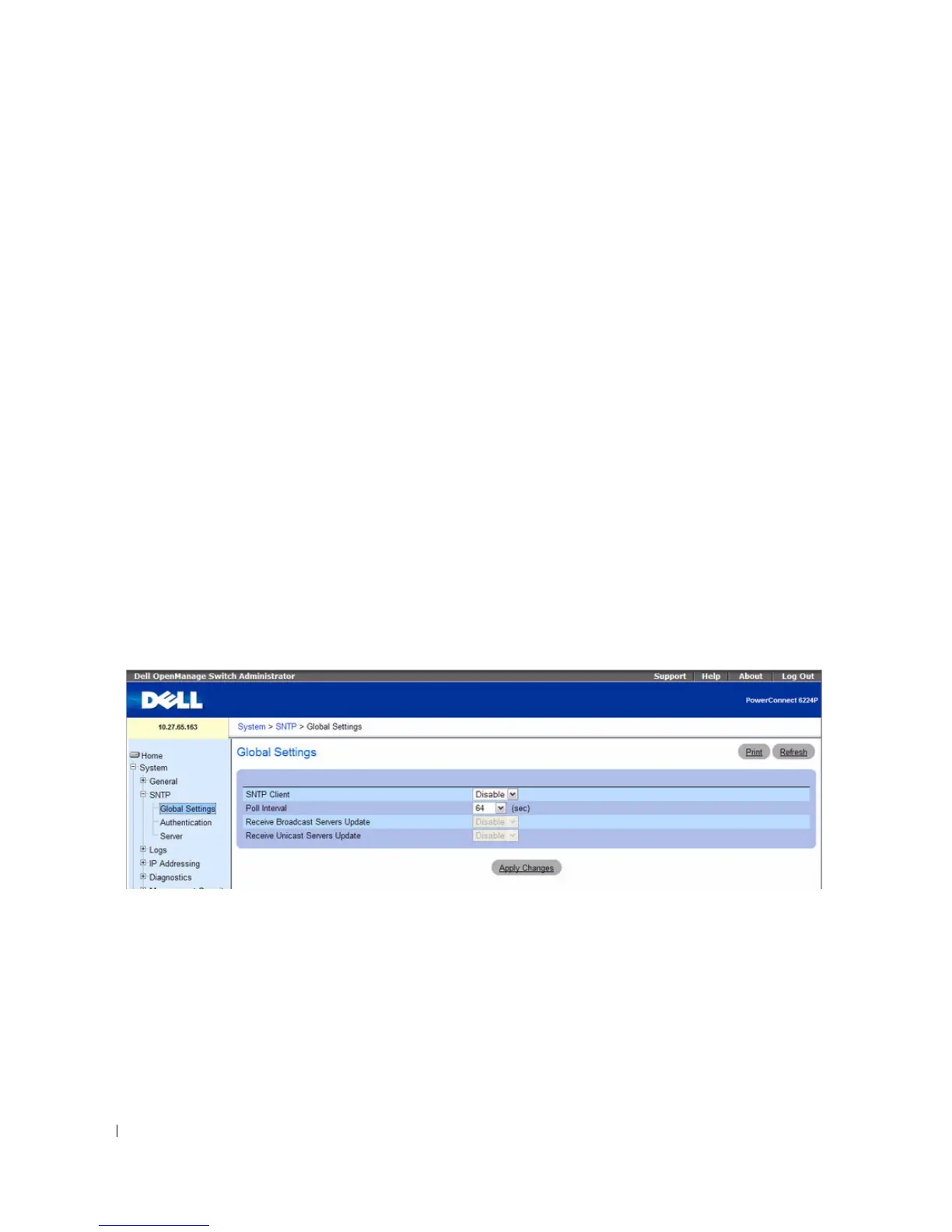

Figure 6-9. SNTP Global Settings
The SNTP Global Settings page contains the following fields:
• SNTP Client — Use drop-down list to enable or disable the client. If the client is disabled, some of the
fields below are also disabled.
•
Poll Interval — Defines the interval (in seconds) at which the SNTP server is polled for Unicast
information. The range is 60–1024 seconds.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
