Dell PowerConnect 6224 User Manual

Configuring Routing 563
RIP Interface Configuration
Use the RIP Interface Configuration page to enable and configure or to disable RIP on a specific
interface.
To display the page, click Routing
→ RIP → Interface Configuration in the tree view.

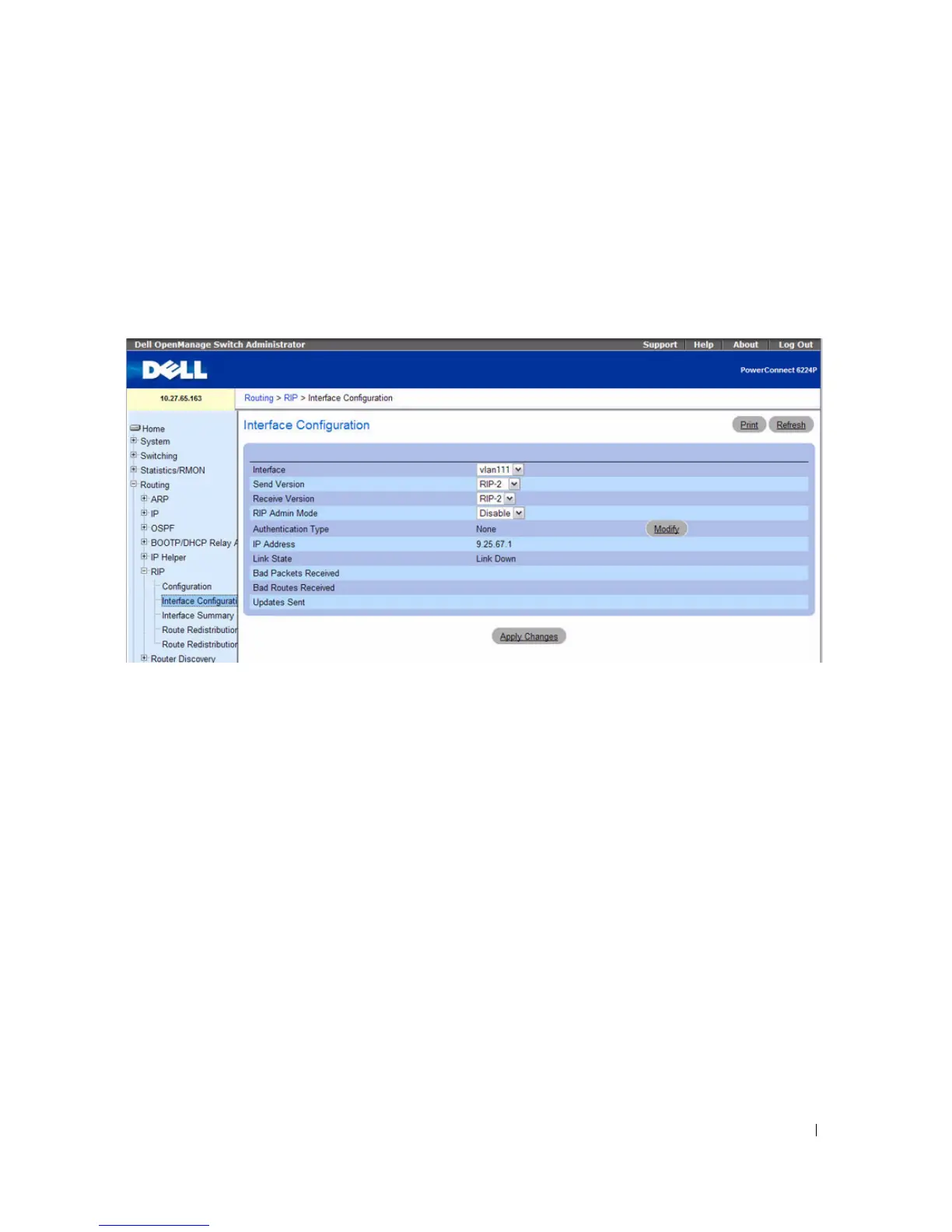

Figure 9-29. RIP Interface Configuration
The RIP Interface Configuration page contains the following fields:
• Interface — Select the interface for which data is to be configured from the drop-down menu.
•
Send Version — RIP Version that router sends with its routing updates. The default is RIP-2. Possible
values are:
–
RIP-1 — send RIP version 1 formatted packets through broadcast.
–
RIP-1c — RIP version 1 compatibility mode. Send RIP version 2 formatted packets through
broadcast.
–
RIP-2 — send RIP version 2 packets using multicast.
–
None — no RIP control packets are sent.
•
Receive Version — RIP Version of the routing updates that the router must accept. The default is
Both. Possible values are:
–
RIP-1 — accept only RIP version 1 formatted packets.
–
RIP-2 — accept only RIP version 2 formatted packets.
–
Both — accept packets in either format.
•
None — no RIP control packets is accepted.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
