Configuring System Information 225

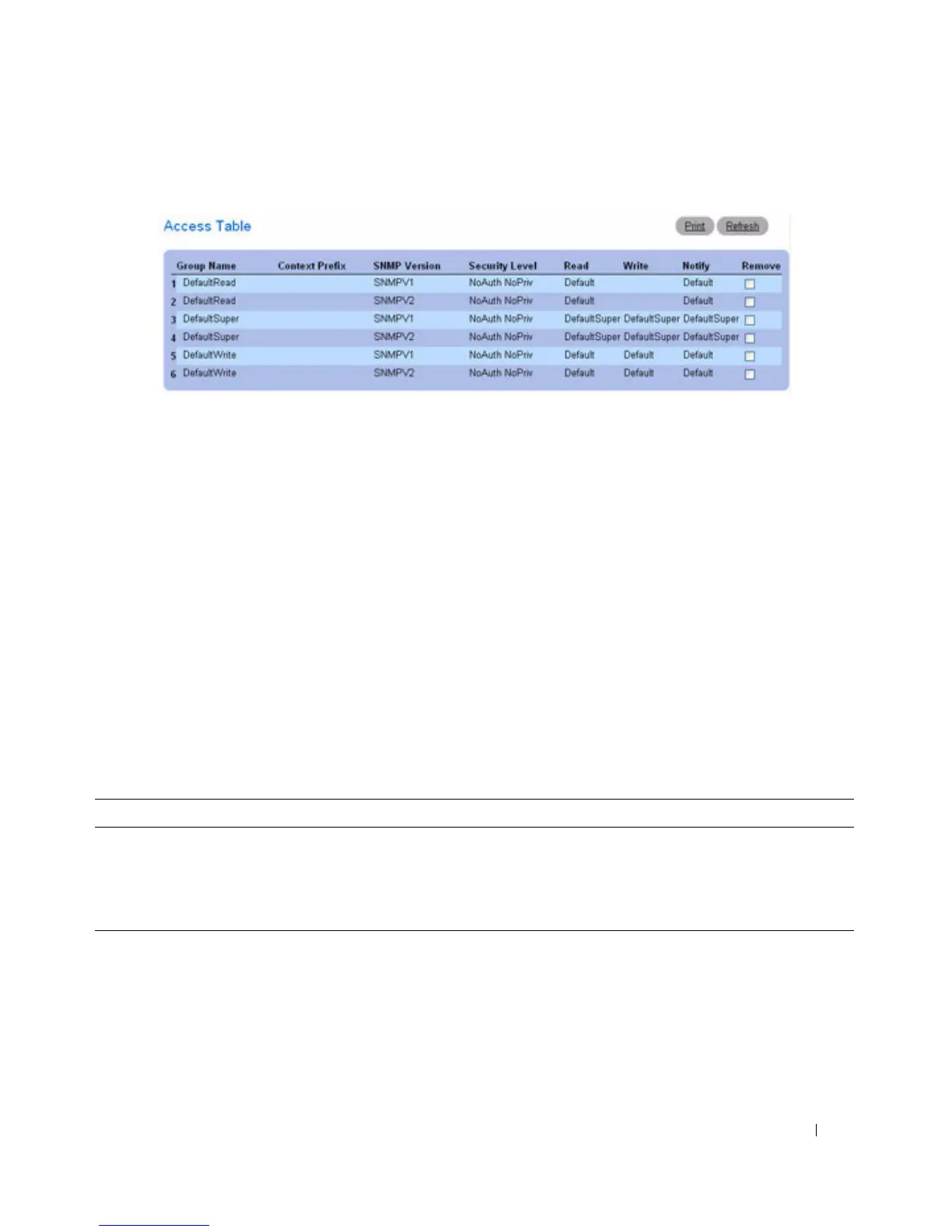

Figure 6-91. Access Table
Removing a Group
1. Open the Access Control Configuration page.
2. Click Show All .
The
Access Table opens.
3. Select a group.
4. Check Remove .
5. Click Apply Changes .
The group is removed, and the device is updated.
Defining SNMP Access Control Using CLI Commands
For information about the CLI commands that perform this function, see the SNMP Commands chapter
in the
CLI Reference Guide . The following table summarizes the equivalent CLI commands you use to
define SNMP Access Control.
SNMPv3 User Security Model (USM)
Use the SNMPv3 User Security Model (USM) page to assign system users to SNMP groups and to
define the user authentication method.
To display the SNMPv3 User Security Model (USM) page, click System
→ SNMP → User Security
Model in the
tree view.
Table 6-42. SNMP Access Control Commands
CLI Command Description
snmp-server group Configures a new SNMP group or a table that maps SNMP users to
SNMP views.
snmp-server community-group Maps SNMP v1 and v2 security models to the group name.
show snmp groups Displays the configuration of groups.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
