Dell PowerConnect 6224 User Manual

Configuring System Information 273
Configuring and Viewing sFlow Settings Using CLI Commands
For information about the CLI commands that perform this function, see the Flow Commands chapter
in the
CLI Reference Guide . The following table summarizes the equivalent CLI commands you use to
configure and view sFlow settings.
sFlow Receiver Configuration
Use the sFlow Receiver Configuration page to configure the sFlow Receiver.
To access the sFlow Receiver Configuration page, click System
→ sFlow → Receiver Configuration in the
navigation tree.

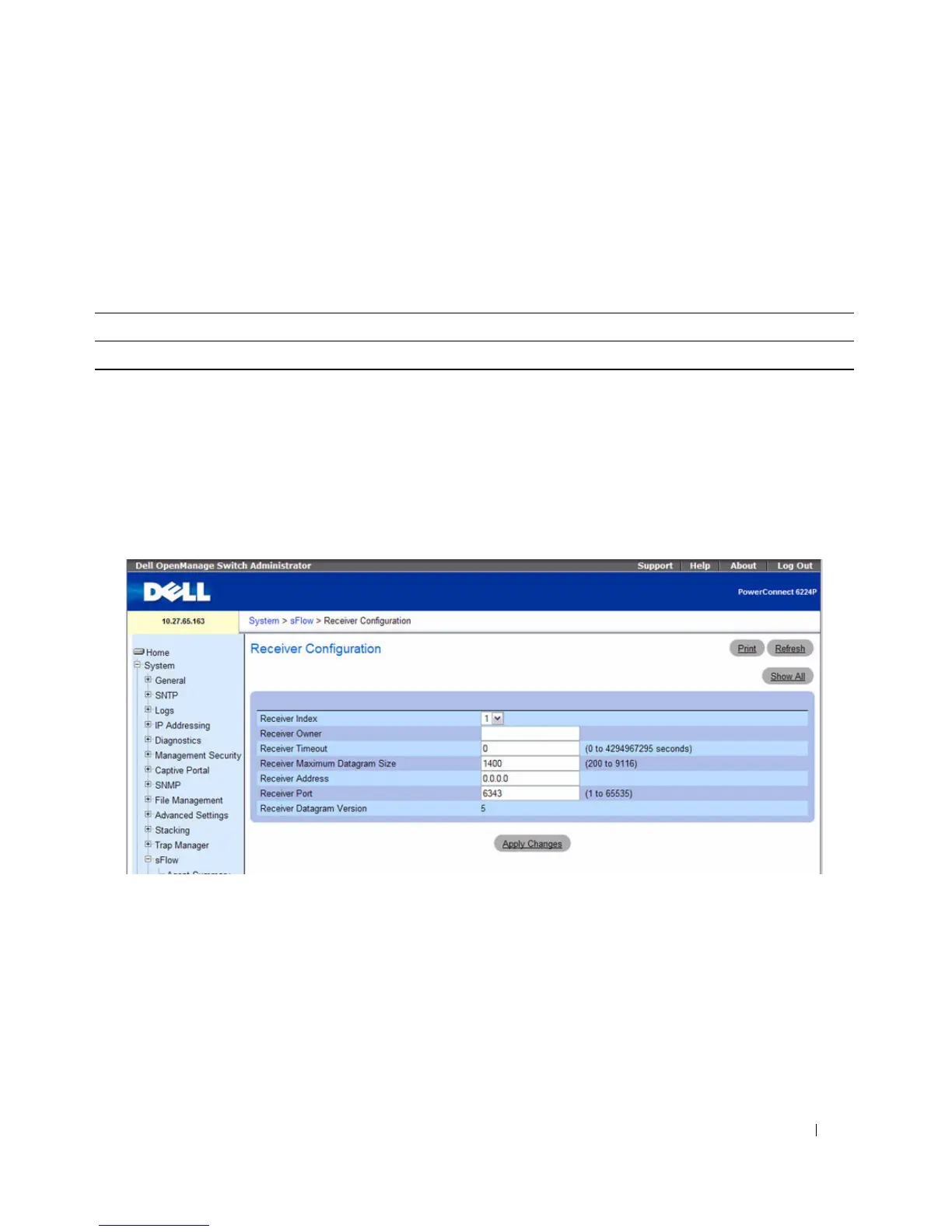

Figure 6-123. sFlow Receiver Configuration
The sFlow Receiver Configuration page contains the following fields:
• Receiver Index — Selects the receiver for which data is to be displayed or configured. The allowed
range is 1 to 8.
Table 6-63. sFlow Settings Commands
CLI Command Description
show sflow agent Displays the sflow agent information.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
