• Register Threshold Rate — If PIM-SM is selected as the protocol, enter the minimum source data rate
in K bits/second above which the Rendezvous Point router switches to a source-specific shortest path
tree. The valid values are from 0 to 2000 K bits/sec. The default value is 0. This field is not available for
PIM-DM.
Configuring PIM Using CLI Commands
For information about the CLI command that performs this function, see the following chapters in the
CLI Reference Guide:
• PIM-DM Commands
• PIM-SM Commands
The following table summarizes the equivalent CLI commands for this feature.
PIM Global Status
Use the PIM Global Status page to view the administrative status of PIM-DM or PIM-SM on the
switch.
To display the page, click IPv4 Multicast
→ PIM → Global Status or IPv6 Multicast → PIM → Global
Status in the tree view.

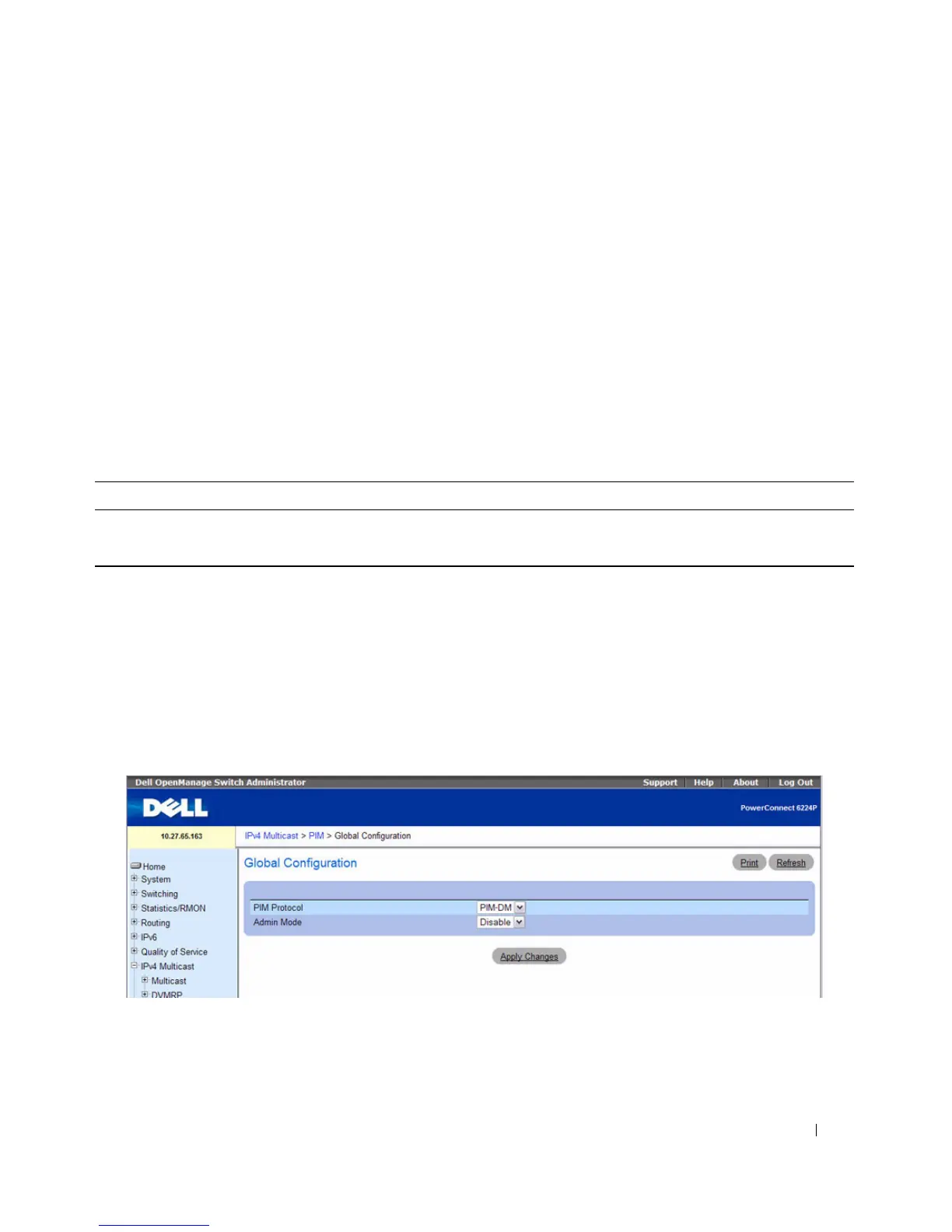

Figure 12-34. PIM Global Status
The PIM Global Status page contains the following fields:
• PIM Protocol — Select PIM-DM or PIM-SM. Only one PIM protocol can be enabled on the switch at
a time. If you select PIM-SM, additional fields appear.
Table 12-32. PIM Global Configuration Commands
CLI Command Description
ip pimdm Enables the administrative mode of PIM-DM in the router.
ip pimsm Enables the administrative mode of PIM-SM in the router.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
