Dell PowerConnect 6224 User Manual

474 Viewing Statistics and Remote Monitoring
EAP Statistics
Use the EAP Statistics page to display information about EAP packets received on a specific port. For
more information about EAP, see "Dot1x Authentication."
To display the EAP Statistics page, click Statistics/RMON
→ Table Views → EAP Statistics in the tree
view
.

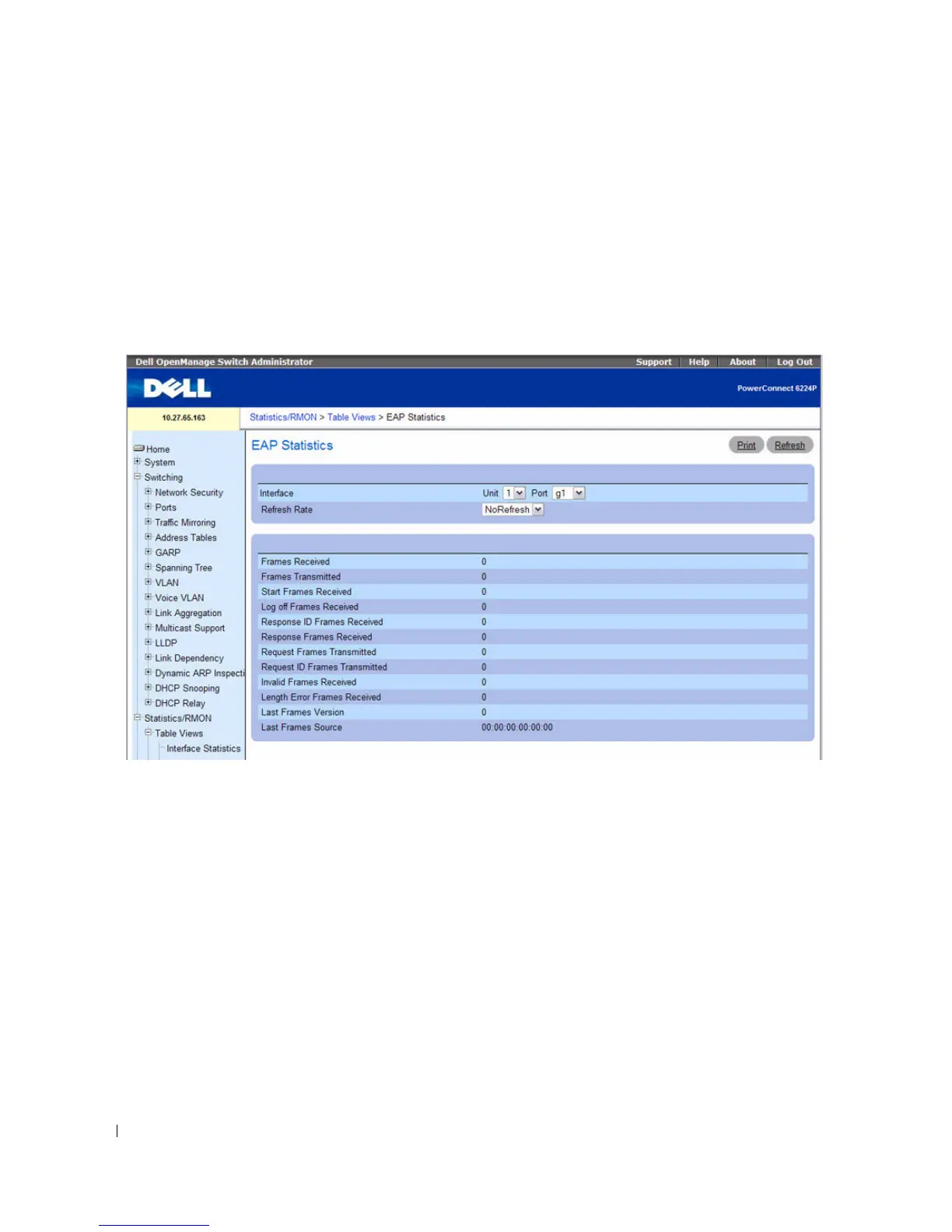

Figure 8-4. EAP Statistics
The EAP Statistics page contains the following fields:
• Interface — Specifies the interface which is polled for statistics.
•
Refresh Rate — Specifies amount of time that passes before statistics are refreshed. The possible field
values are No Refresh, 15, 30, and 60 seconds. Default is No Refresh.
•
Frames Received — Displays the number of valid EAPOL frames received on the port.
•
Frames Transmitted — Displays the number of EAPOL frames transmitted through the port.
•
Start Frames Received — Displays the number of EAPOL Start frames received on the port.
•
Log off Frames Received — Displays the number of EAPOL Log off frames that have been received
on the port.
•
Respond ID Frames Received — Displays the number of EAP Respond ID frames that have been
received on the port.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
