Dell PowerConnect 6224 User Manual

Viewing Statistics and Remote Monitoring 489
The RMON Events Table entry is modified, and the device is updated.
Displaying the RMON Event Control Table
1. Open the RMON Event Control page.
2. Click Show All .
The
Event Control Table displays.

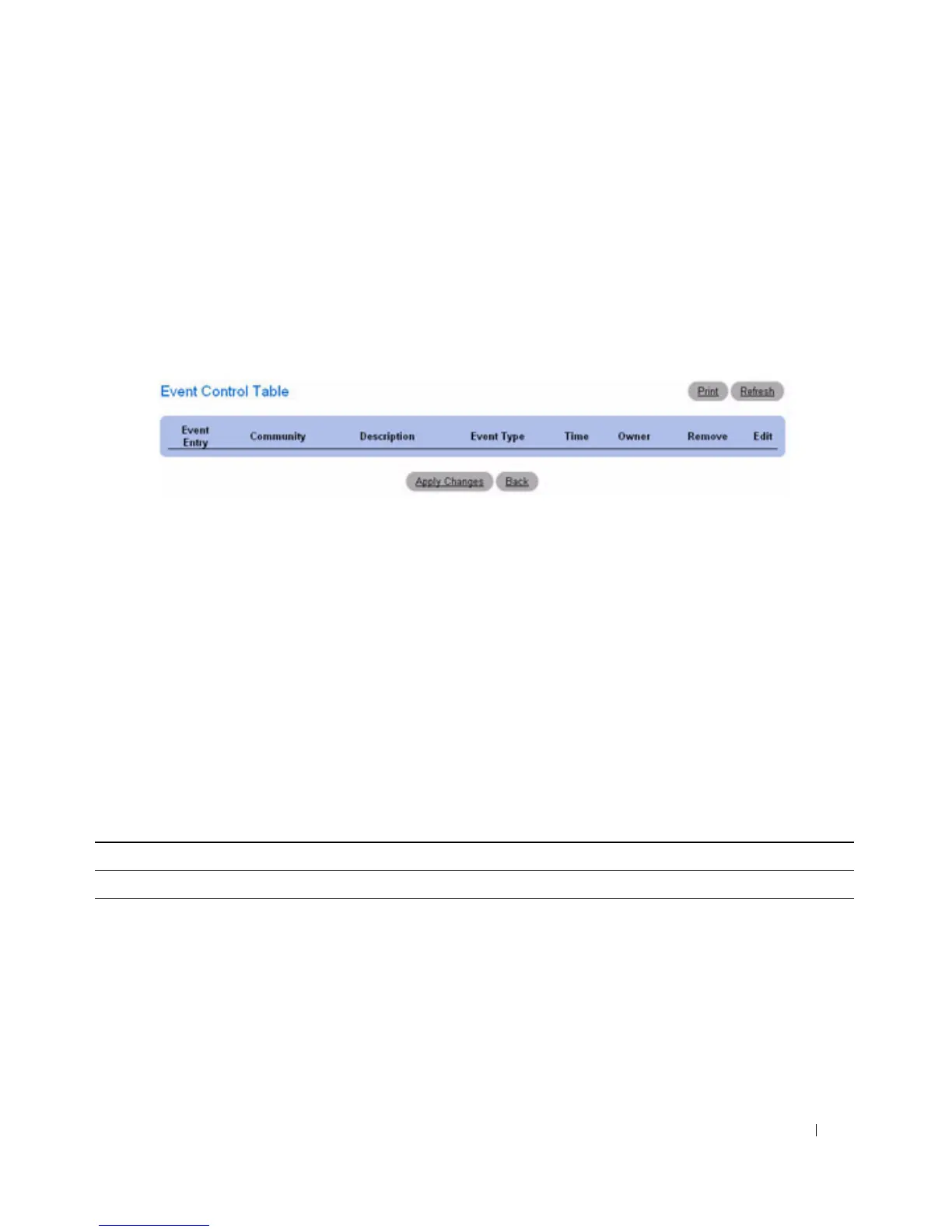

Figure 8-14. Event Control Table
Removing RMON Event Entries
1. Open the RMON Event Control page.
2. Choose the event to remove from the drop-down menu in the Event Entry field and check Remove.
3. Click Apply Changes .
The table entry is removed, and the device is updated.
Defining Switch Events Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide :
• RMON Commands
The following table summarizes the equivalent CLI commands for this feature.
RMON Event Log
Use the RMON Event Log page to display a list of RMON events.
To display the page, click Statistics/RMON
→ RMON → Events Log in the tree view.
Table 8-10. RMON Event Control Command
CLI Command Description
rmon event Configures events.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
