Configuring IP Multicast 761
MLD Proxy Configuration Summary
Use the MLD Proxy Configuration Summary page to view configuration and statistics on MLD proxy-
enabled interfaces. To display this page, click IPv6 Multicast
→ MLD → Proxy Interface → Configuration
Summary in the navigation tree.

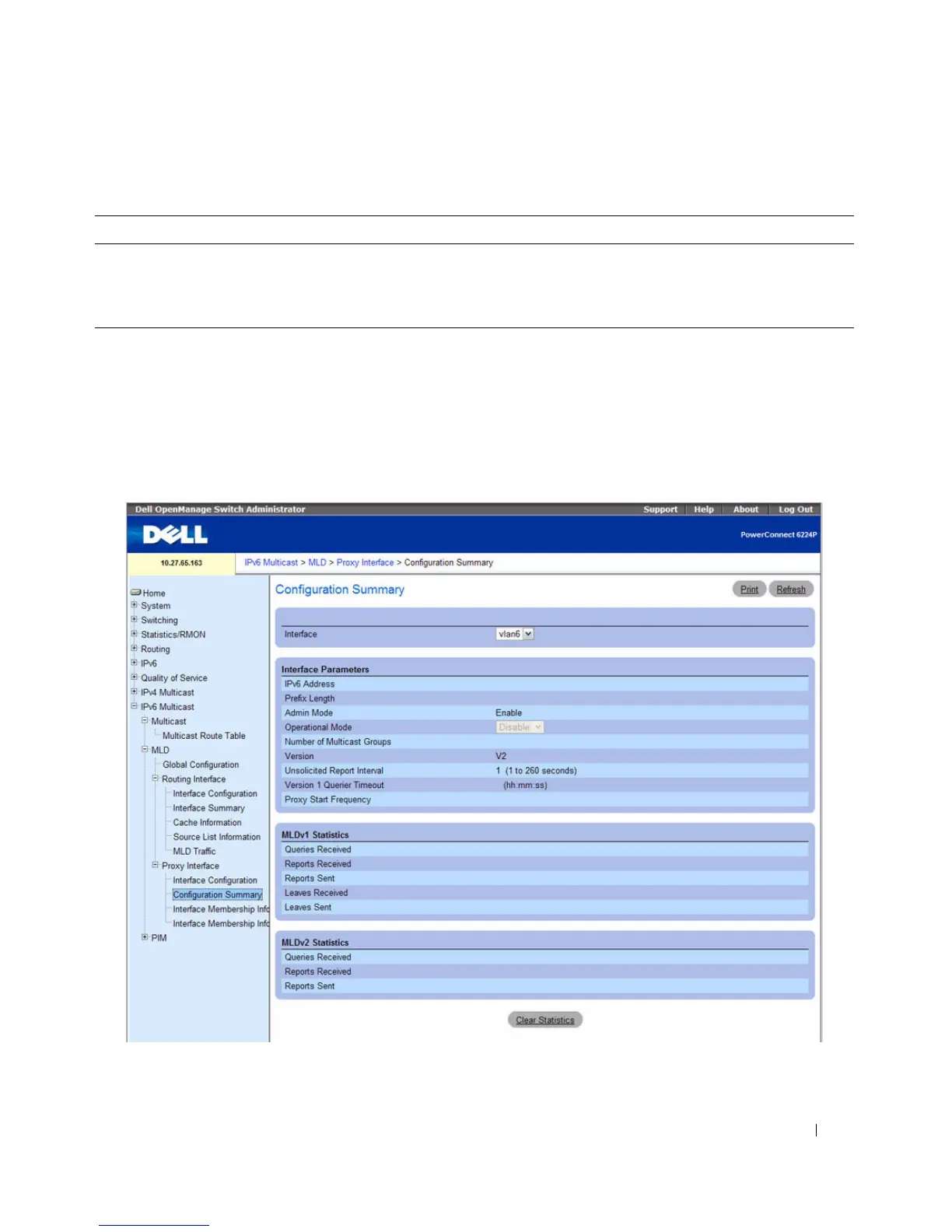

Figure 12-30. MLD Proxy Configuration Summary
The MLD Proxy Configuration Summary page contains the following fields:
Table 12-28. IPv6 MLD Proxy Global Commands
CLI Command Description
ipv6 mld-proxy Enables MLD Proxy on the router.
ipv6 mld-proxy reset-status Resets the host interface status parameters of the MLD Proxy router.
ipv6 mld-proxy unsolicit-rprt-interval Sets the unsolicited report interval for the MLD Proxy router.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
