Dell PowerConnect 6224 User Manual

136 Configuring System Information
•RAM Log Table
•Log File
• Remote Log Server Settings
Global Settings
Use the Global Settings page to enable logs globally, and to define log parameters. The Severity log
messages are listed from the highest severity to the lowest.
To display the Global Settings page, click System
→ Logs → Global Settings in the tree view.

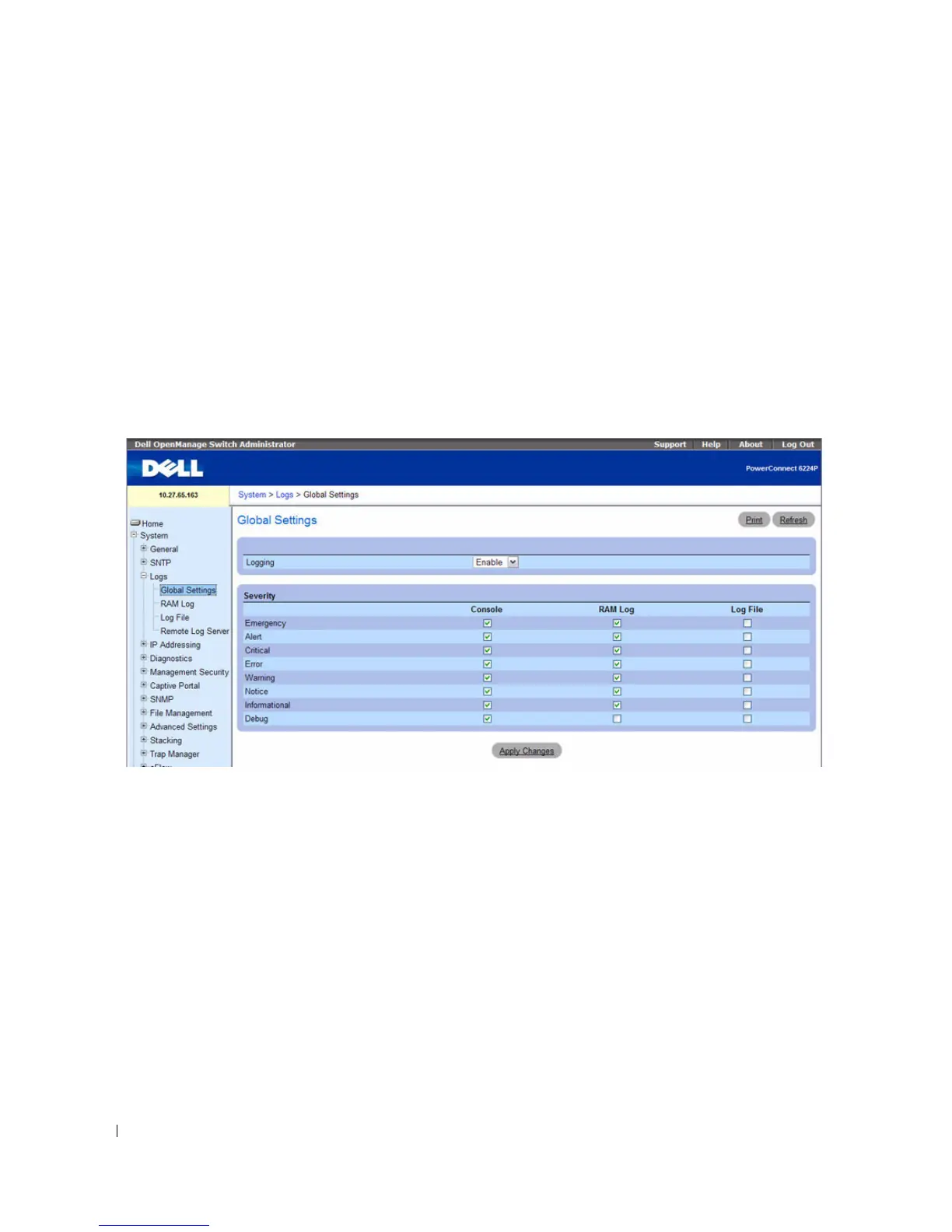

Figure 6-16. Global Settings
The Global Settings page contains the following fields:
• Logging — Enables device global logs for Cache, File, and Server Logs. All logs which are printed to
the console are saved to the log files. The possible field values are:
–
Enable — Enables saving logs in Cache (RAM), File (FLASH), and an External Server.
–
Disable — Disables saving logs. It is not possible to disable logging of logs that are printed to
console.
Severity
Use the check boxes in this section to adjust the sensitivity of the console, persistent memory, and log
files.
When you select a specific level, all of the levels above it are automatically selected. For example, if you
select Error, the system automatically selects Error, Critical, Alert, and Emergency. If you deselect Error,
all of the levels below (for example, Error, Warning, Notice, Informational, Debug) are deselected.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
