Configuring Switching Information 319
Port Configuration
Use the Port Configuration page to define port parameters.
To display the Port Configuration page, click Switching
→ Ports → Port Configuration in the tree view.

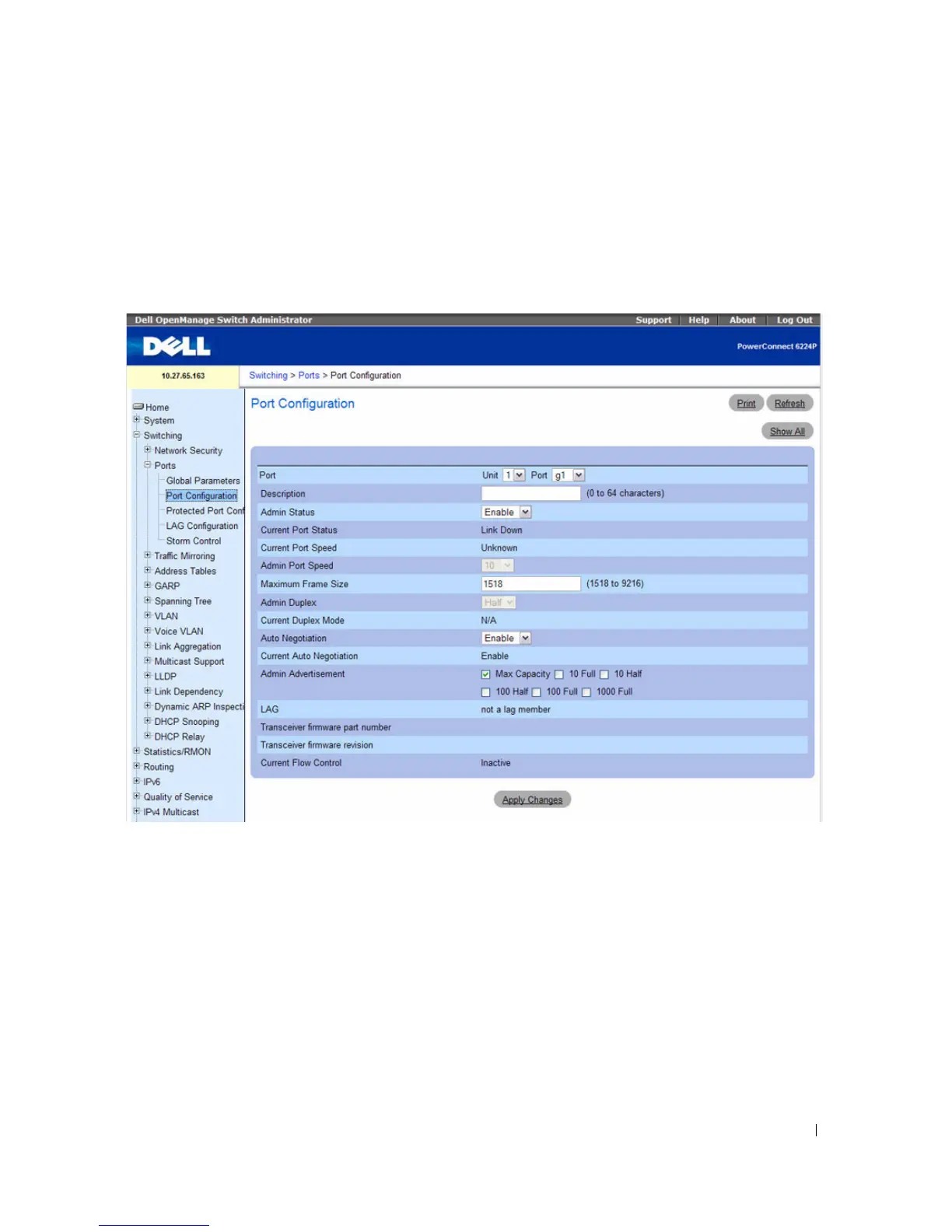

Figure 7-20. Port Configuration
The Port Configuration page contains the following fields:
• Port — Specifies the Unit and Port for which port parameters are defined.
•
Description (0–64 Characters) — Provides a brief interface description, such as Ethernet.
•
Admin Status — Enables (Up) or disables (Down) traffic forwarding through the port.
•
Current Port Status — Specifies whether the port is currently operational or non-operational.
•
Current Port Speed — Displays the actual synchronized port speed (bps).
•
Admin Port Speed — Forces the port speed to the selected 10M 100Mvalue.
•
Maximum Frame Size (1518–9216) — Specifies the threshold beyond which packets exceeding this
size are dropped. Default is 1518.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
