Configuring Switching Information 427
LLDP-MED Interface Configuration
Use the LLDP-MED Interface Configuration page to specify LLDP-MED parameters that affect a
specific interface.
To display the LLDP-MED Interface Configuration page, click Switching
→ LLDP → LLDP-MED →
LLDP-MED Interface Configuration in the tree view.

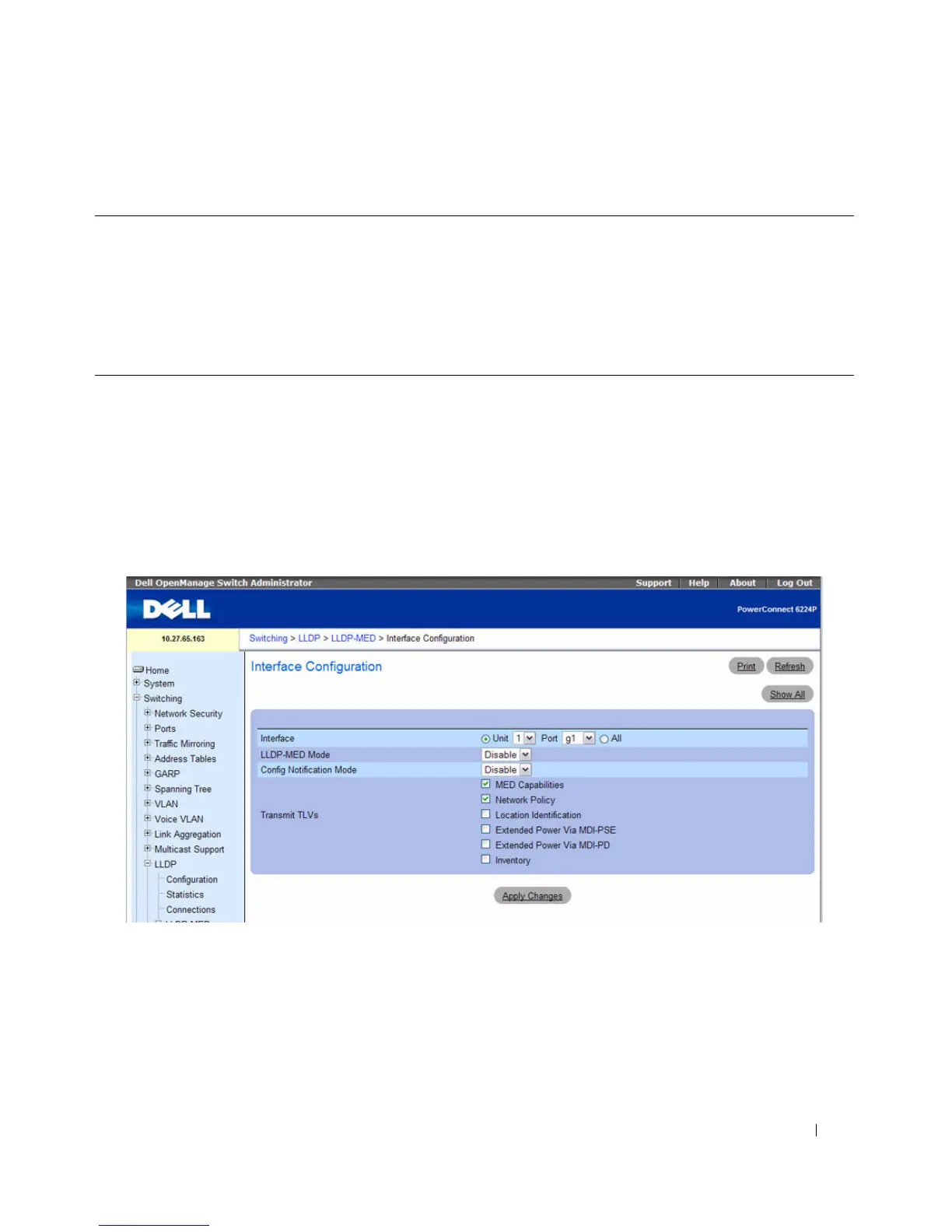

Figure 7-100. LLDP-MED Interface Configuration
The LLDP-MED Interface Configuration page contains the following fields:
• Interface — Specifies the list of ports on which LLDP-MED - 802.1AB can be configured. Select the
All option list to configure all interfaces on the system with the same LLDP-MED settings.
•
LLDP-MED Mode — Specifies the Link Layer Data Protocol-Media End Point (LLDP-MED) mode
for the selected interface. Enabling MED effectively enables the transmit and receive function of
LLDP.
Table 7-53. LLDP-MED Global Commands
CLI Command Description
lldp med faststartrepeatcount Sets the value of the fast start repeat count.
show lldp med Displays a summary of the current LLDP MED configuration.
lldp med confignotification Enables sending the topology change notifications.
lldp med transmit-tlv Spruciest which optional TLVs in the LLDP MED set are transmitted
in the LLDPDUs.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
