Dell PowerConnect 6224 User Manual

752 Configuring IP Multicast
Configuring MLD Global Settings Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• IPv6 Routing Commands
The following table summarizes the equivalent CLI commands for this feature.
MLD Routing Interface Configuration
Use the MLD Routing Interface Configuration page to enable selected IPv6 router interfaces to
discover the presence of multicast listeners, the nodes who wish to receive the multicast data packets, on
its directly attached interfaces. To access this page, click IPv6 Multicast
→ MLD → Routing Interface →
Interface Configuration in the navigation tree.

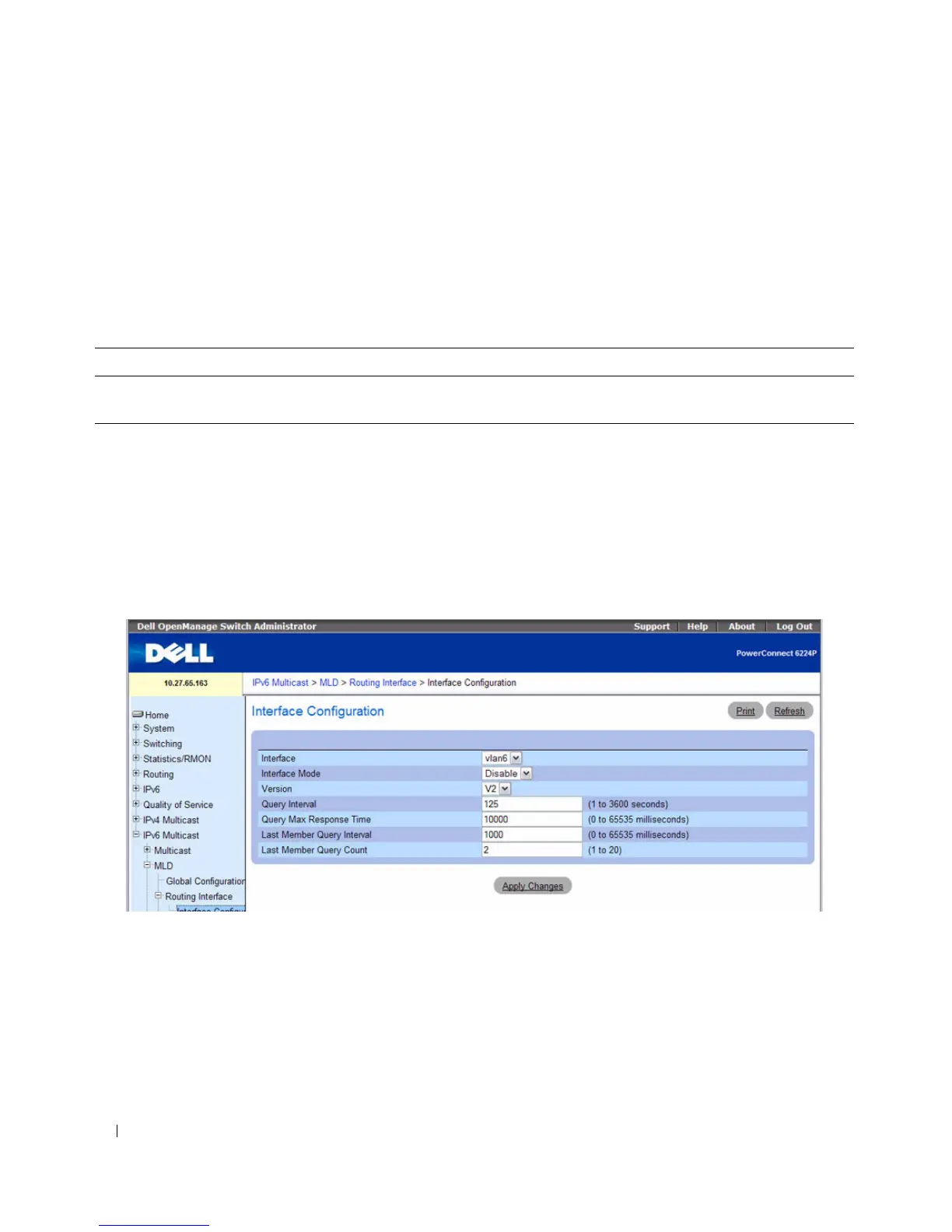

Figure 12-24. MLD Routing Interface Configuration
The MLD Routing Interface Configuration page contains the following fields:
• Interface — From the drop-down menu, select the VLAN routing interface to be configuration.
•
Interface Mode — Select Enable or Disable to set the administrative status of MLD on the selected
interface. The default is
Disable .
•
Version — Select the MLD version.
Table 12-23. IPv6 MLD Global Commands
CLI Command Description
ipv6 mld router Enables MLD in the router in global configuration mode and for a
specific interface in interface configuration mode.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
