Dell PowerConnect 6224 User Manual

Configuring Quality of Service 681
Diffserv Configuration
Use the Diffserv Configuration page to display DiffServ General Status Group information, which
includes the current administrative mode setting as well as the current and maximum number of rows in
each of the main DiffServ private MIB tables.
To display the
page, click Quality of Service → Differentiated Services → Diffserv Configuration in the
tree view.

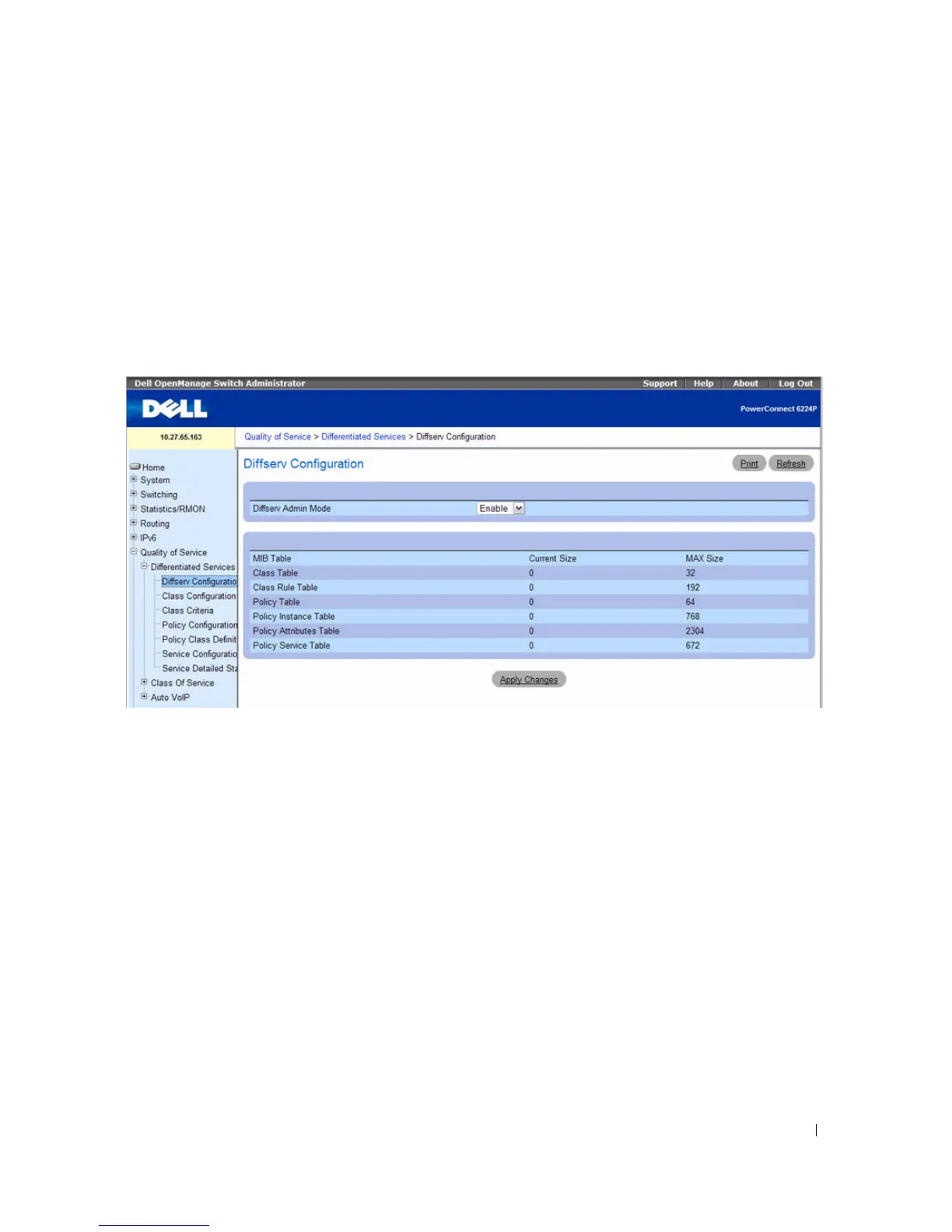

Figure 11-1. Diffserv Configuration
The Diffserv Configuration page contains the following fields:
Diffserv Admin Mode — Turns admin mode on and off. While disabled, the DiffServ configuration is
retained and can be changed, but it is not active. While enabled, Differentiated Services are active.
MIB Table
• Class Table — Displays the current and maximum number of rows of the class table.
•
Class Rule Table — Displays the current and maximum number of rows of the class rule table.
•
Policy Table — Displays the current and maximum number of rows of the policy table.
•
Policy Instance Table — Displays the current and maximum number of rows of the policy instance
table.
•
Policy Attributes Table — Displays the current and maximum number of rows of the policy attributes
table.
•
Service Table — Displays the current and maximum number of rows of the service table.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
