Configuring Switching Information 351

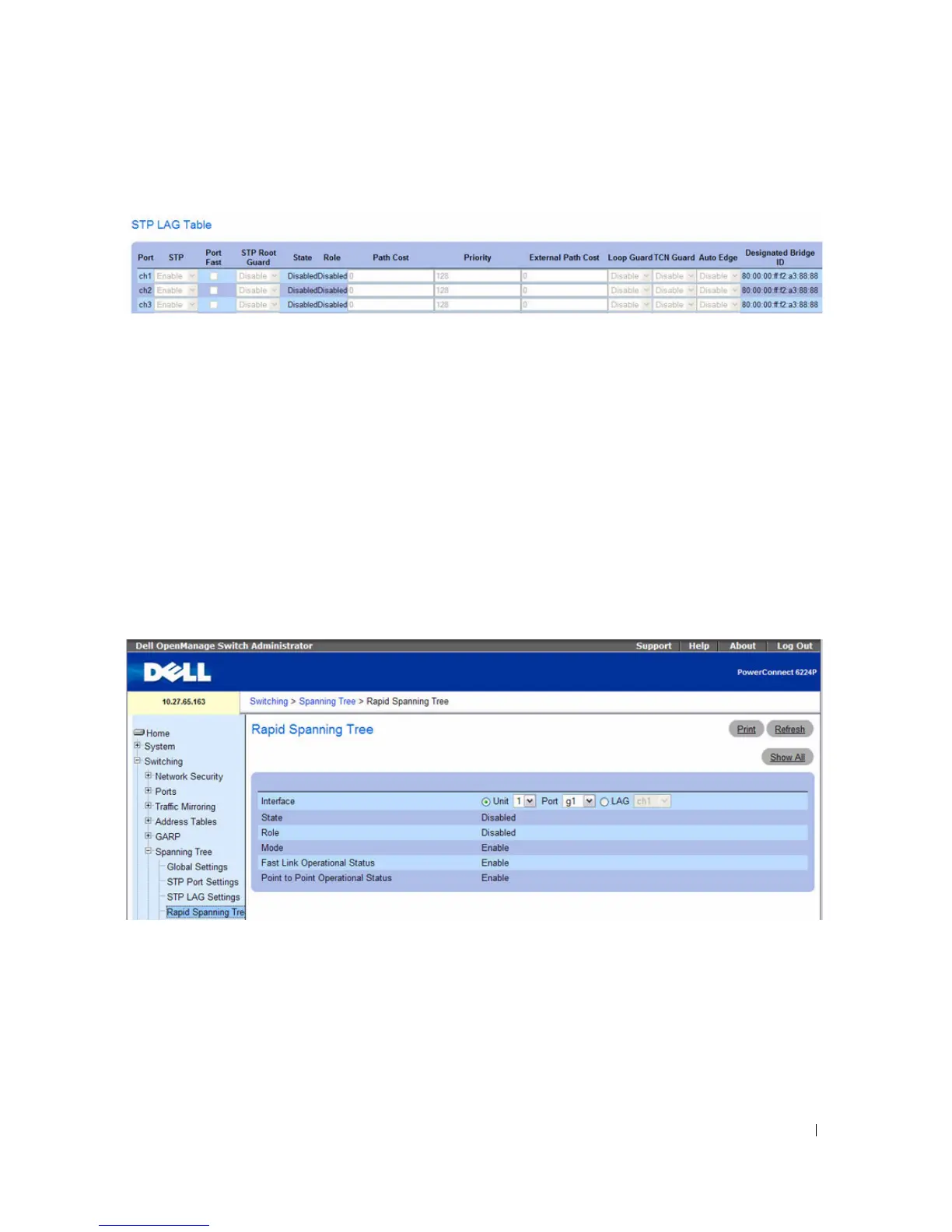

Figure 7-42. STP LAG Table
3. To change the STP settings for one or more LAGs, select the Edit option for the LAG(s), configure the
desired settings, and then click
Apply Changes .
Defining STP LAG Settings Using CLI Commands
See "Configuring Spanning Tree Port Settings Using CLI Commands" on page 348.
Rapid Spanning Tree
Rapid Spanning Tree Protocol (RSTP) detects and uses network topologies that allow a faster
convergence of the spanning tree without creating forwarding loops.
To display the Rapid Spanning Tree page, click Switching
→ Spanning Tree → Rapid Spanning Tree in
the tree view.
Figure 7-43. Rapid Spanning Tree
The Rapid Spanning Tree page contains the following fields:
• Interface — Determines if RSTP is enabled on a Unit/Port or on a LAG. Click Unit/Port or LAG to
specify the type of interface, then select the Unit/Port or LAG to configure from the drop-down menu.
•
State — Displays the spanning tree state for the port.
•
Role — Displays the spanning tree role for the port in the STP topology.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
