Dell PowerConnect 6224 User Manual

778 Configuring IP Multicast

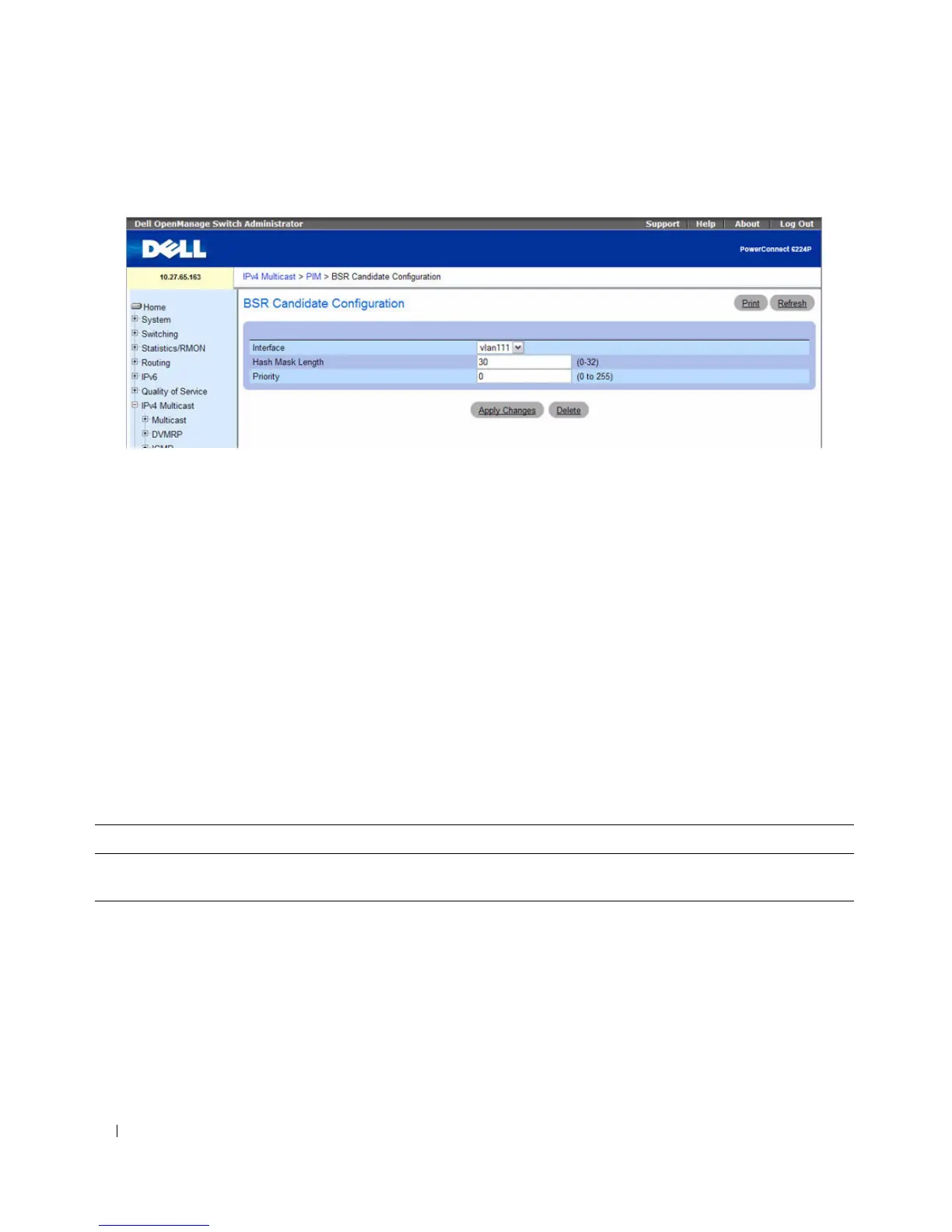

Figure 12-43. BSR Candidate Configuration
The BSR Candidate Configuration page contains the following fields:
• Interface — Select the interface for which data is to be displayed.
•
Hash Mask Length — The CBSR hash mask length to be advertised in bootstrap messages if this
interface is elected as the bootstrap router. This hash mask length will be used in the hash algorithm
for selecting the RP for a particular group. The valid values are from 0 to 128.The default value is 126.
•
Priority — The priority value for the local interface as a candidate bootstrap router. The valid values
are from 0 to 255.The default value is 0.
Configuring the BSR Candidate Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide:
• PIM Commands
The following table summarizes the equivalent CLI commands for this feature.
BSR Candidate Summary
Use this page to display information about the configured BSR candidates. To display this page, click
IPv4 Multicast
→ PIM → BSR Candidate Summary or IPv6 Multicast → PIM → BSR Candidate
Summary.
Table 12-39. PIM BSR Candidate Configuration Commands
CLI Command Description
ipv6 pimsm bsr-candidate Configures the router to announce its candidacy as a bootstrap router
(BSR).

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
