Dell PowerConnect 6224 User Manual

Viewing Statistics and Remote Monitoring 485
RMON History Table
Use the RMON History Table page to display interface-specific statistical network samplings. Each table
entry represents all counter values compiled during a single sample.
To display the RMON History Table page, click Statistics/RMON
→ RMON → History Table in the tree
view.

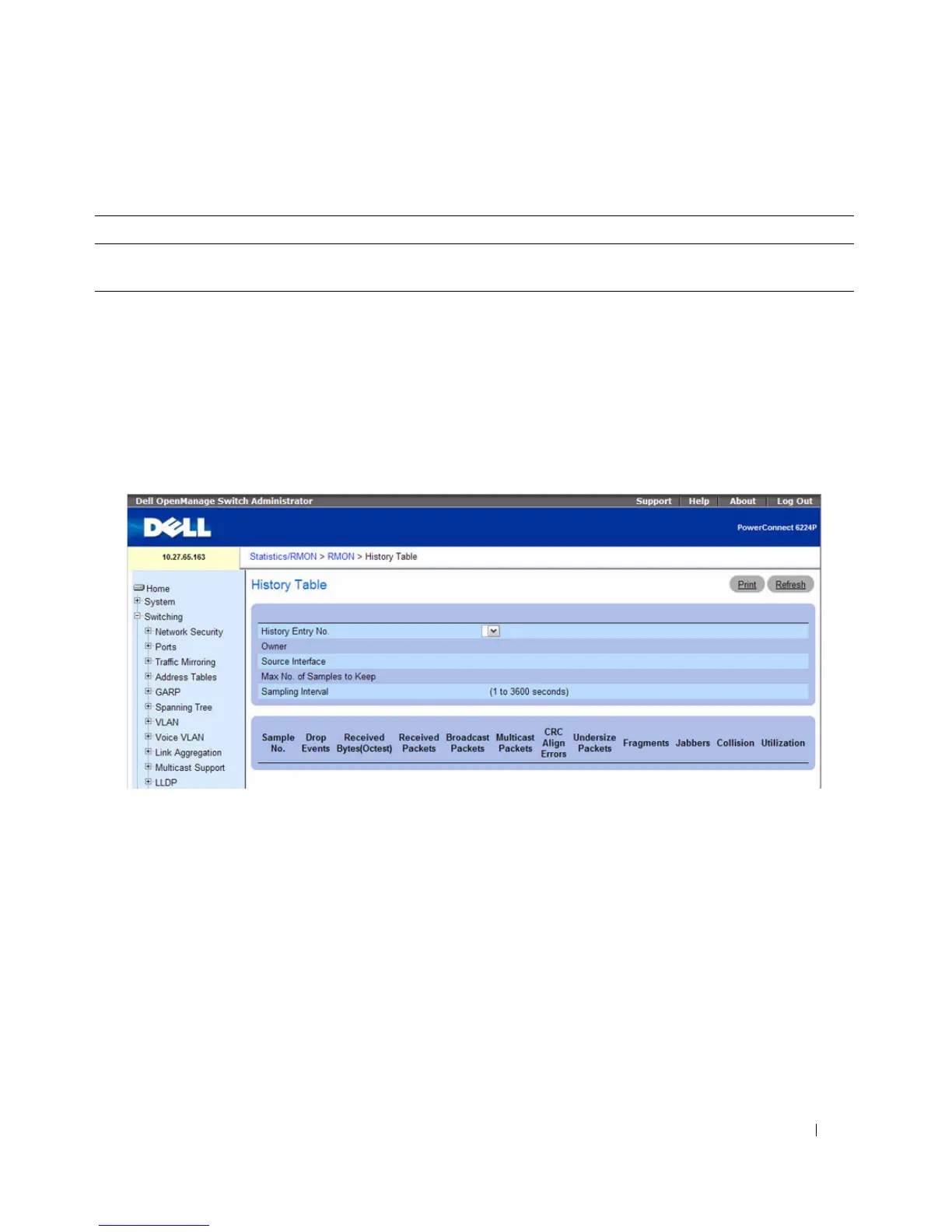

Figure 8-11. RMON History Table
The RMON History Table page contains the following fields:
• History Entry No. — Selects the history entry number to display on the RMON History Table .
•
Owner — Displays RMON statistics group owner name, if available.
•
Source Interface — Indicates the Interface or LAG where the statistics are being collected.
•
Max No. of Samples to Keep — Determines the length of the list in the History table for each History
Entry No.
•
Sampling Interval — Sets the time in seconds between successive samples.
•
Sample No. — Indicates the specific sample the information in the table reflects.
Table 8-8. RMON History Control Commands
CLI Command Description
rmon collection history Enables a Remote Monitoring (RMON) MIB history statistics group
on an interface.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
