Dell PowerConnect 6224 User Manual

Configuring IPv6 647
OSPFv3 Area Range Configuration
Use the OSPFv3 Area Range Configuration page to configure OSPFv3 area ranges.
To display the page, click IPv6
→ OSPFv3 → Area Range Configuration in the tree view.

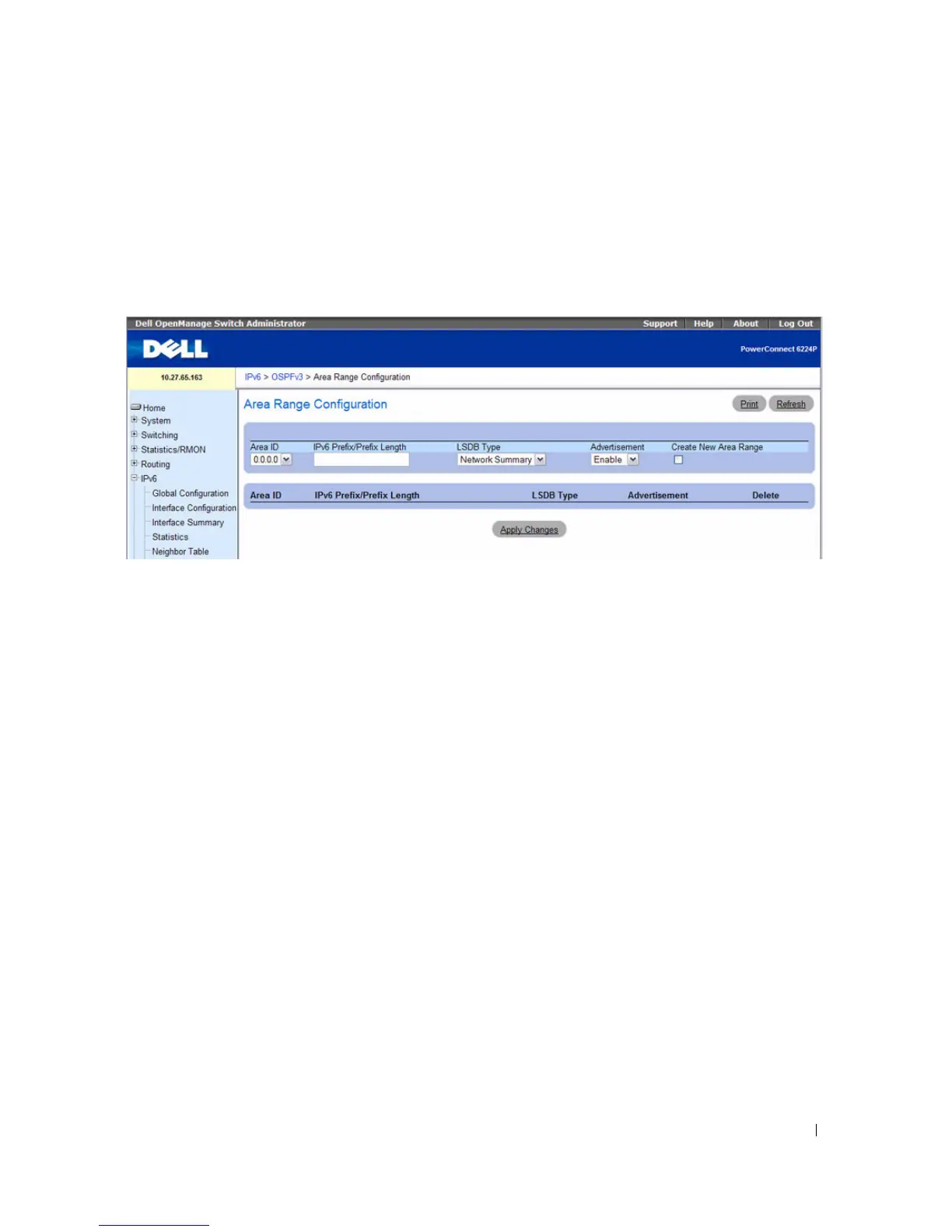

Figure 10-21. OSPFv3 Area Range Configuration
The OSPFv3 Area Range Configuration page contains the following fields:
• Area ID — Selects the area for which data is to be configured.
•
IPv6 Prefix/Prefix Length — Enter the IPv6 Prefix/Prefix Length for the address range for the selected
area.
•
LSDB Type — Select the type of Link Advertisement associated with the specified area and address
range. The default type is Network Summary.
•
Advertisement — Select Enable or Disable from the drop-down menu. If you selected Enable, the
address range is advertised outside the area through a Network Summary LSA. The default is Enable.
•
Create New Area Range — Click this check box to create a new OSPFv3 area range using the values
you specified.
•
Area ID — The OSPFv3 area.
•
IPv6 Prefix — The IPv6 Prefix of an address range for the area.
•
LSDB Type — The Link Advertisement type for the address range and area.
•
Advertisement — The Advertisement mode for the address range and area.
•
Delete — Click this check box to delete the specified OSPFv3 area range.
Configuring OSPFv3 Area Range
1. Open the OSPFv3 Area Range Configuration page.
2. Modify the fields as needed.
3. Click Apply Changes .

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
