Dell PowerConnect 6224 User Manual

Configuring System Information 211
• Authenticated Users — Shows the number of users that successfully authenticated to this captive
portal and are currently using the portal.
The following buttons are available on the CP Activation and Activity page:
• Block —Click Block to prevent users from gaining access to the network through the selected captive
portal.
•
Unblock —If the Blocked Status of the selected captive portal is Blocked, click Unblock to allow access
to the network through the captive portal.
Interface Activation Status
The Interface Activation Status page shows information for every interface assigned to a captive portal
instance.
To view interface activation status information, click System
→ Captive Portal → Interface Activation
Status.

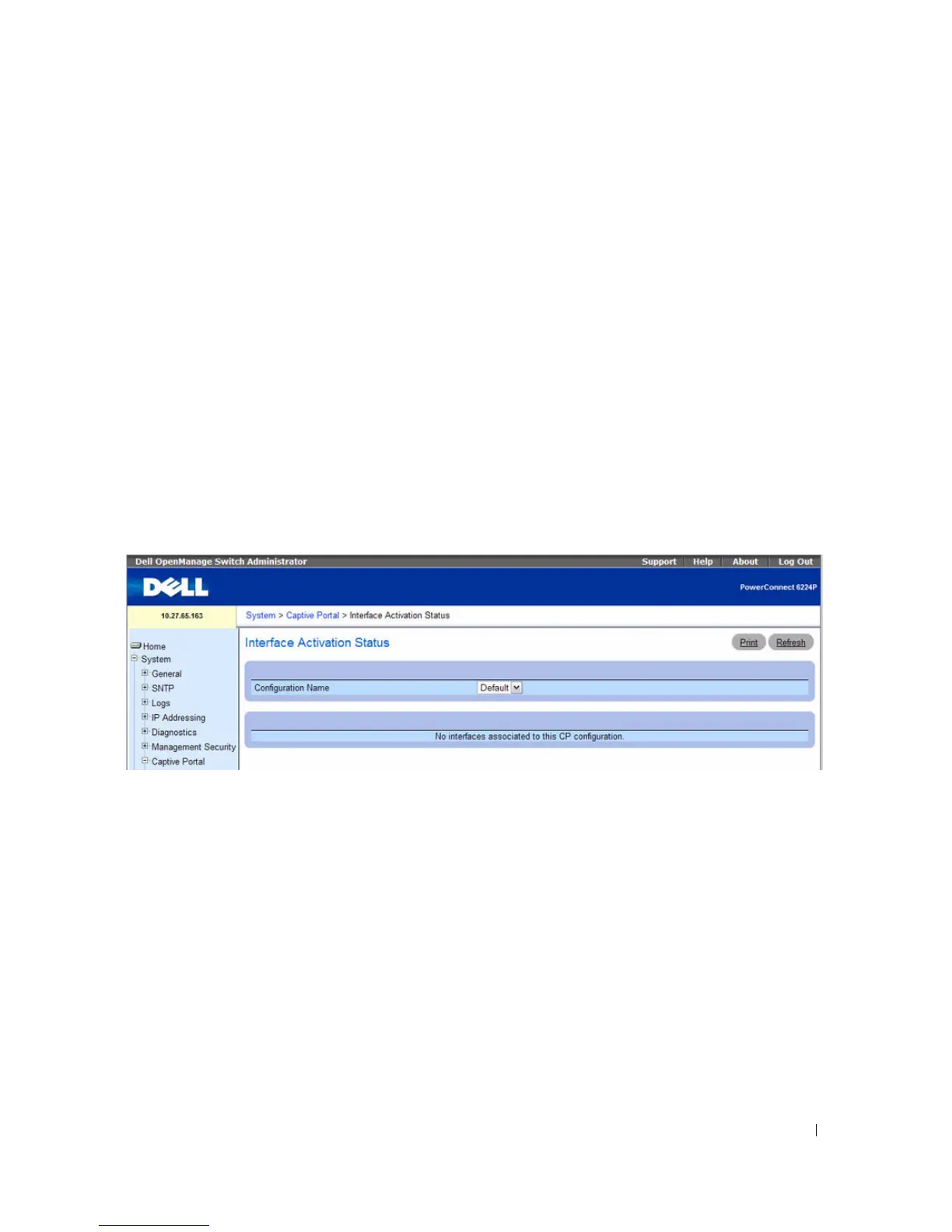

Figure 6-79. Interface Activation Status
The Interface Activation Status page contains the following fields:
• Configuration Name — Select the CP configuration with the information to view.
•
Operational Status — Shows whether the portal is active on the specified interface.
•
Disable Reason — If the selected CP is disabled on this interface, this field indicates the reason, which
can be one of the following:
– Interface Not Attached
– Disabled by Administrator
•
Blocked Status — Indicates whether the captive portal is temporarily blocked for authentications.
•
Authenticated Users — Displays the number of authenticated users using the captive portal instance
on this interface.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
