Configuring Quality of Service 705
The following table summarizes the equivalent CLI commands for this feature.
Interface Configuration
Use the
Interface Configuration page to specify ports individually for CoS configuration and to apply an
interface shaping rate to the selected ports.
To display the Interface Configuration page, click Quality of Service
→
Class of Service
→
Interface
Configuration in the tree view.

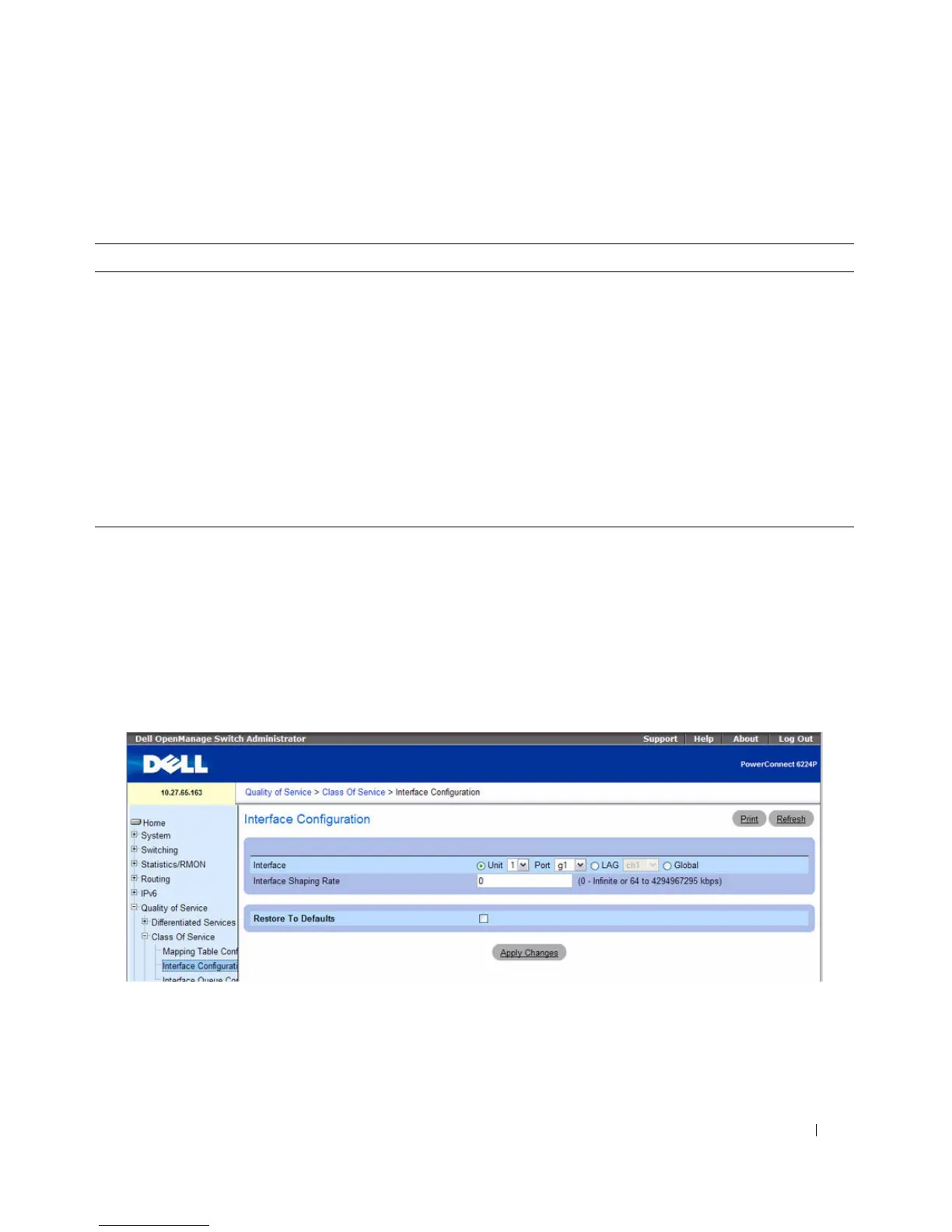

Figure 11-18. Interface Configuration
The Interface Configuration page contains the following fields:
•
Interface
— Selects the interface to be affected by the
Interface Shaping Rate
. Select
Unit/Port
, or
LAG
to be affected from the drop-down menu. Select
Global
to specify all interfaces.
Table 11-8. Mapping Table Configuration Commands
CLI Command Description
classofservice dotlp-mapping Maps an 802.1p priority to an internal traffic class for a switch.
classofservice ip-dscp-mapping Maps an IP DSCP value to an internal traffic class.
classofservice trust Sets the class of service trust mode of an interface.
show classofservice dotlp-mapping Displays the current Dot1p (802.1p) priority mapping to internal
traffic classes for a specific interface.
show classofservice ip-dscp-mapping Displays the current IP DSCP mapping to internal traffic classes for a
specific interface.
show classofservice trust Displays the current trust mode setting for a specific interface.
show interfaces cos-queue Displays the class-of-service queue configuration for the specified
interface.
