154 Configuring System Information
2.
Click
Show All
.
3.
Select the desired unit from the drop-down menu.
The web page displays the
Integrated Cable Test Results Table
page showing the results of previous
tests for every port on the selected unit.

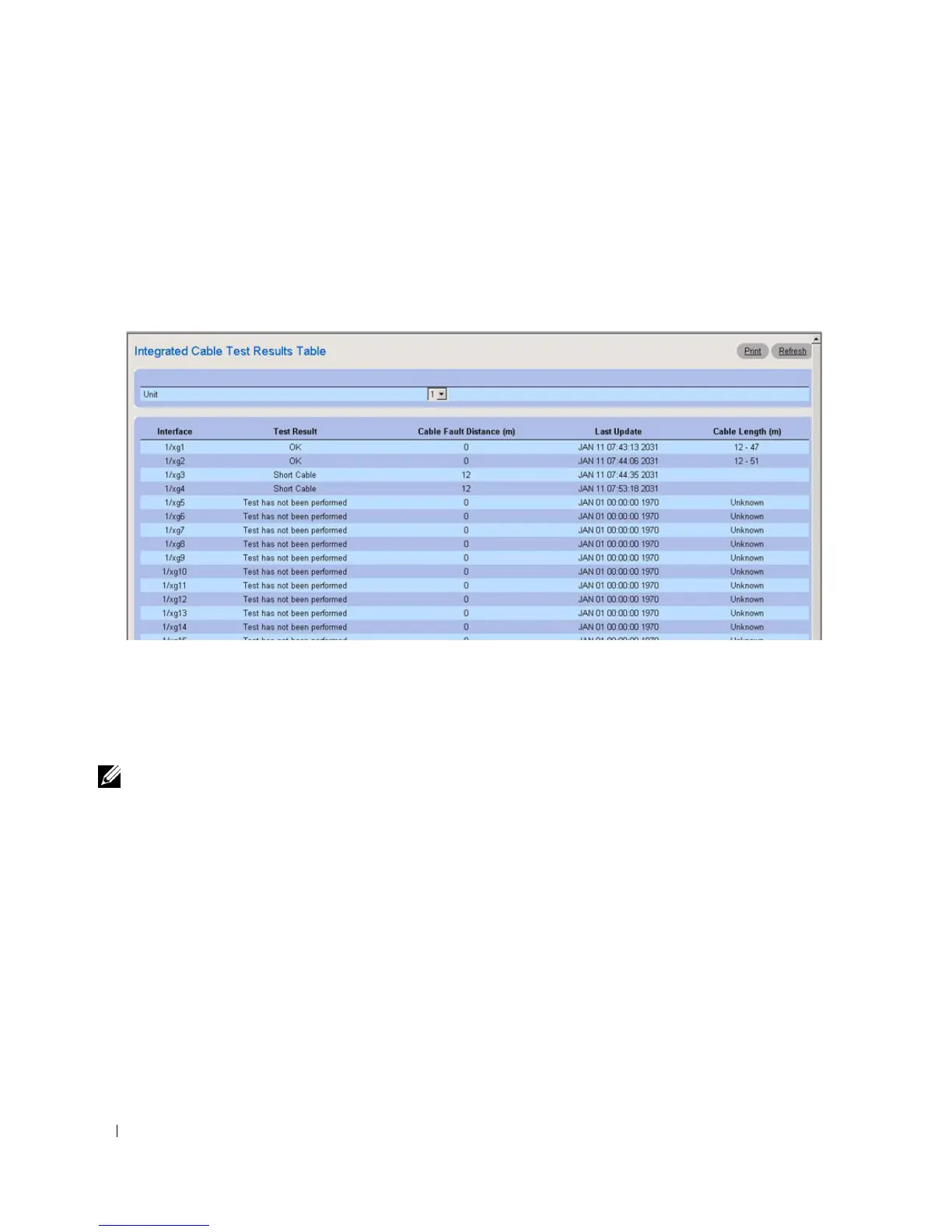

Figure 6-33. Integrated Cable Test Results Table
Optical Transceiver Diagnostics
Use the Optical Transceiver Diagnostics page to perform tests on Fiber Optic cables.
To display the Optical Transceiver Diagnostics page, click System
Diagnostics
Optical Transceiver
Diagnostics in the tree view.
NOTE: Optical transceiver diagnostics can be performed only when the link is present.
