Configuring System Information 207
Displaying the User Group Page
1. Open the User Group page.
2. Click Show All .
The
User Group Summary page displays:

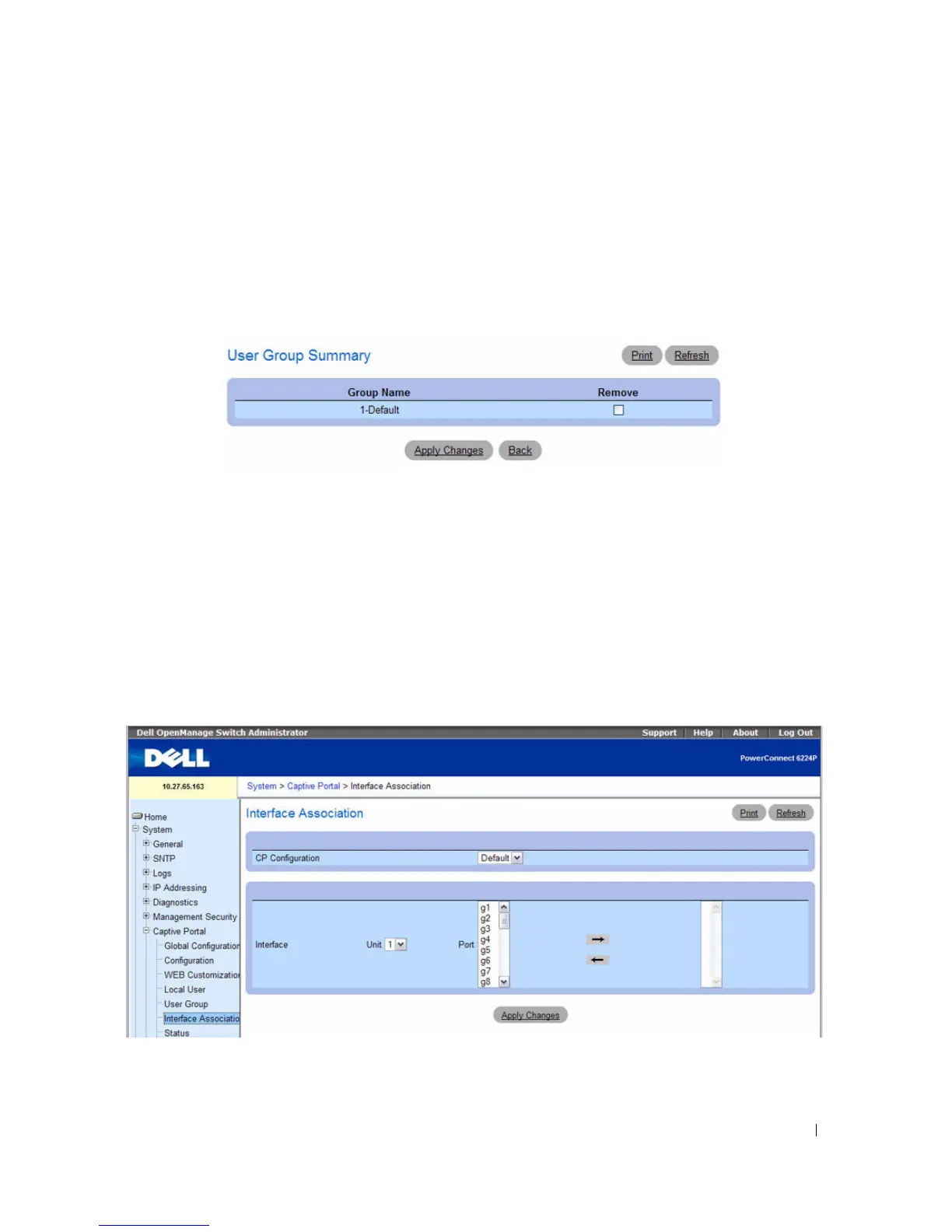

Figure 6-75. CP User Group Summary
3. To remove a configured group, select the Remove option in the appropriate row, and then click Apply
Changes
.
Interface Association
From the Interface Association page, you can associate a configured captive portal with specific
interfaces. The captive portal feature only runs on the interfaces that you specify. A captive portal can
have multiple interfaces associated with it, but an interface can be associated to only one CP at a time.
To view the Interface Association page, click System
→ Captive Portal → Interface Association.
Figure 6-76. CP Interface Association
The Interface Association page contains the following fields:

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
