Dell PowerConnect 6224 User Manual

Configuring Routing 505
IP
The IP menu page contains links to web pages that configure and display IP routing data. To display this
page, click Routing
→ IP in the tree view. Following are the web pages accessible from this menu page:
• IP Configuration
•IP Statistics
• IP Interface Configuration
IP Configuration
Use the IP Configuration page to configure routing parameters for the switch as opposed to an interface.
The IP configuration settings allow you to enable or disable the generation of various types of ICMP
messages.
To display the page, click Routing
→ IP → Configuration in the tree view.

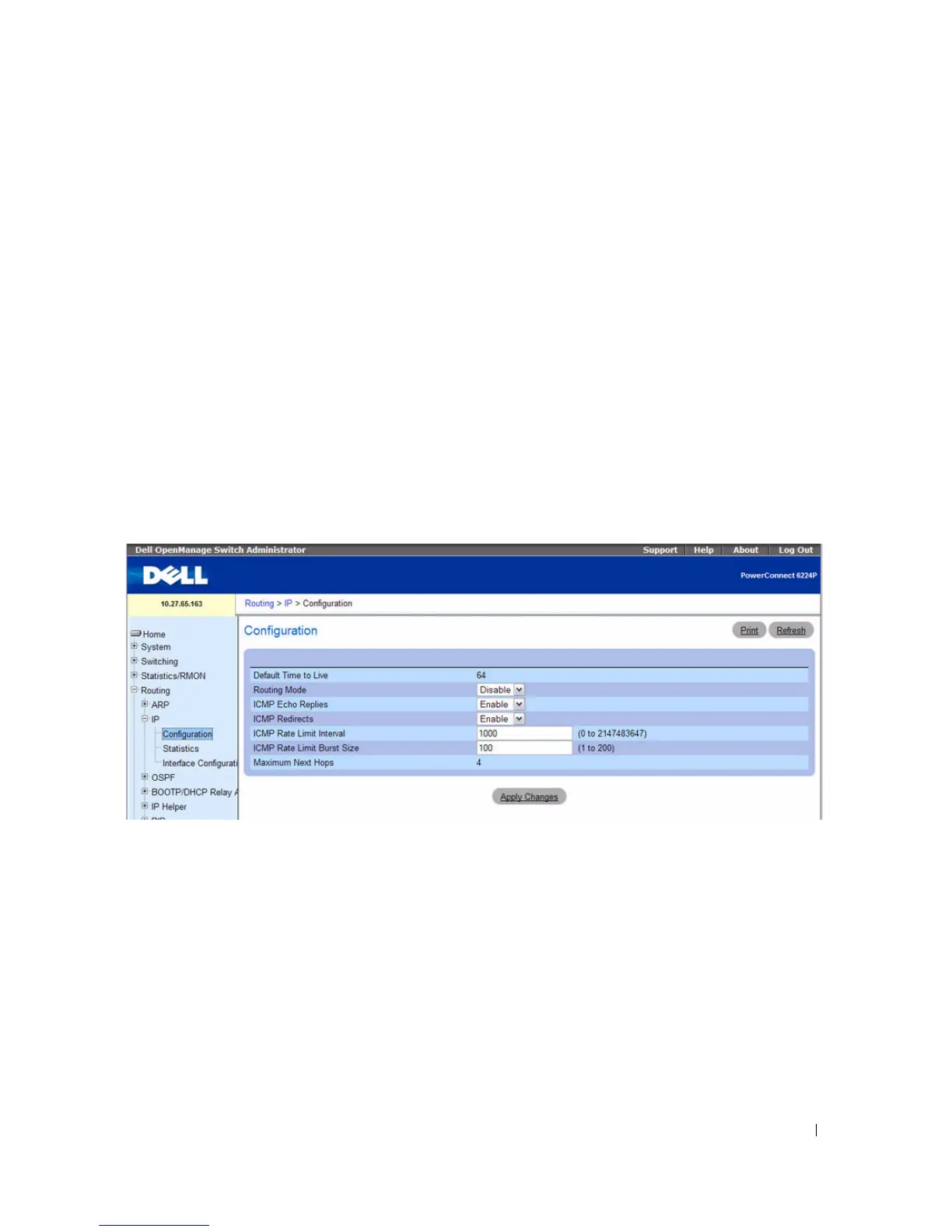

Figure 9-3. IP Configuration
The IP Configuration page contains the following fields:
• Default Time to Live — The default value inserted into the Time-To-Live field of the IP header of
datagrams originated by the switch, if a TTL value is not supplied by the transport layer protocol.
•
Routing Mode — Select Enable or Disable from the drop-down menu. You must enable routing for
the switch before you can route through any of the interfaces. Routing is also enabled or disabled per
VLAN interface. The default value is Disable.
•
ICMP Echo Replies —Select Enable to allow the switch to generate ECHO reply messages. Select
Disable to prevent the switch from generating ICMP echo replies.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
