Dell PowerConnect 6224 User Manual

580 Configuring Routing
Configured Routes
Use the Configured Routes page to display the routes that have been configured.
To display the page, click Routing
→ Router → Configured Routes in the tree view.

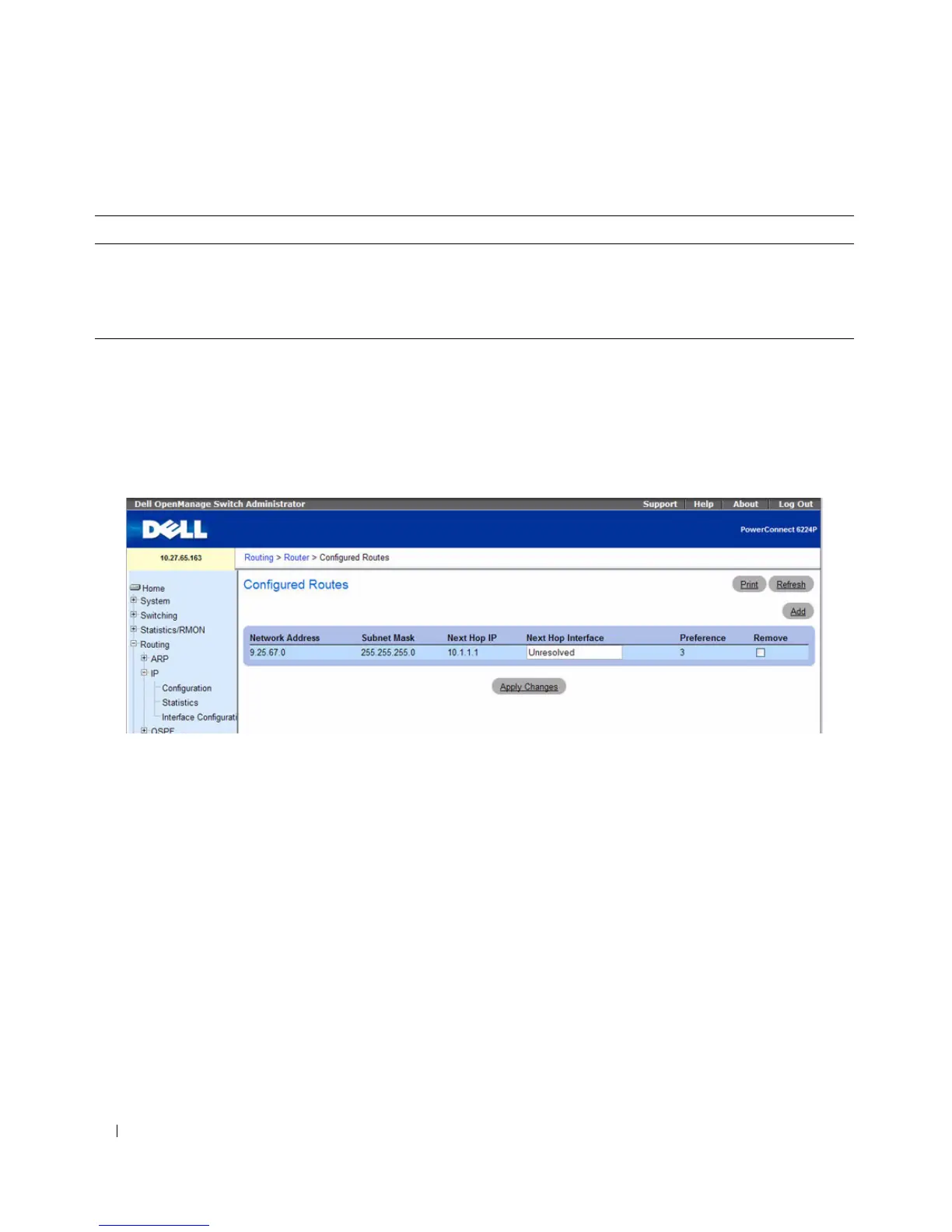

Figure 9-40. Configured Routes
The Configured Routes page displays the following fields:
• Network Address — The IP route prefix for the destination.
•
Subnet Mask — Also referred to as the subnet/network mask, this indicates the portion of the IP
interface address that identifies the attached network.
•
Next Hop IP — The outgoing router interface to use when forwarding traffic to the destination.
•
Preference — Displays the preferences configured for the added routes.
•
Remove — Use this check box to remove a configured route.
Adding a Router Route
1. Open the Configured Routes page.
2. Click Add .
The
Router Route Entry Configuration page displays, as Figure 9-38 shows.
3. Next to Route Type, use the drop-down box to add a Default route or a Static route.
Table 9-34. Router Route Configuration Commands
CLI Command Description
ip route Configures a static route. Use the no form of the command to delete
the static route.
ip route default Configures the default route. Use the no form of the command to
delete the default route.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
