Dell PowerConnect 6224 User Manual

718 Configuring IP Multicast
Multicast Route Table
Use the Multicast Route Table page is used to display MRoute data.
To display the page, click IPv4 Multicast
→ Multicast → Multicast Route Table or IPv6 Multicast →
Multicast
→ Multicast Route Table.

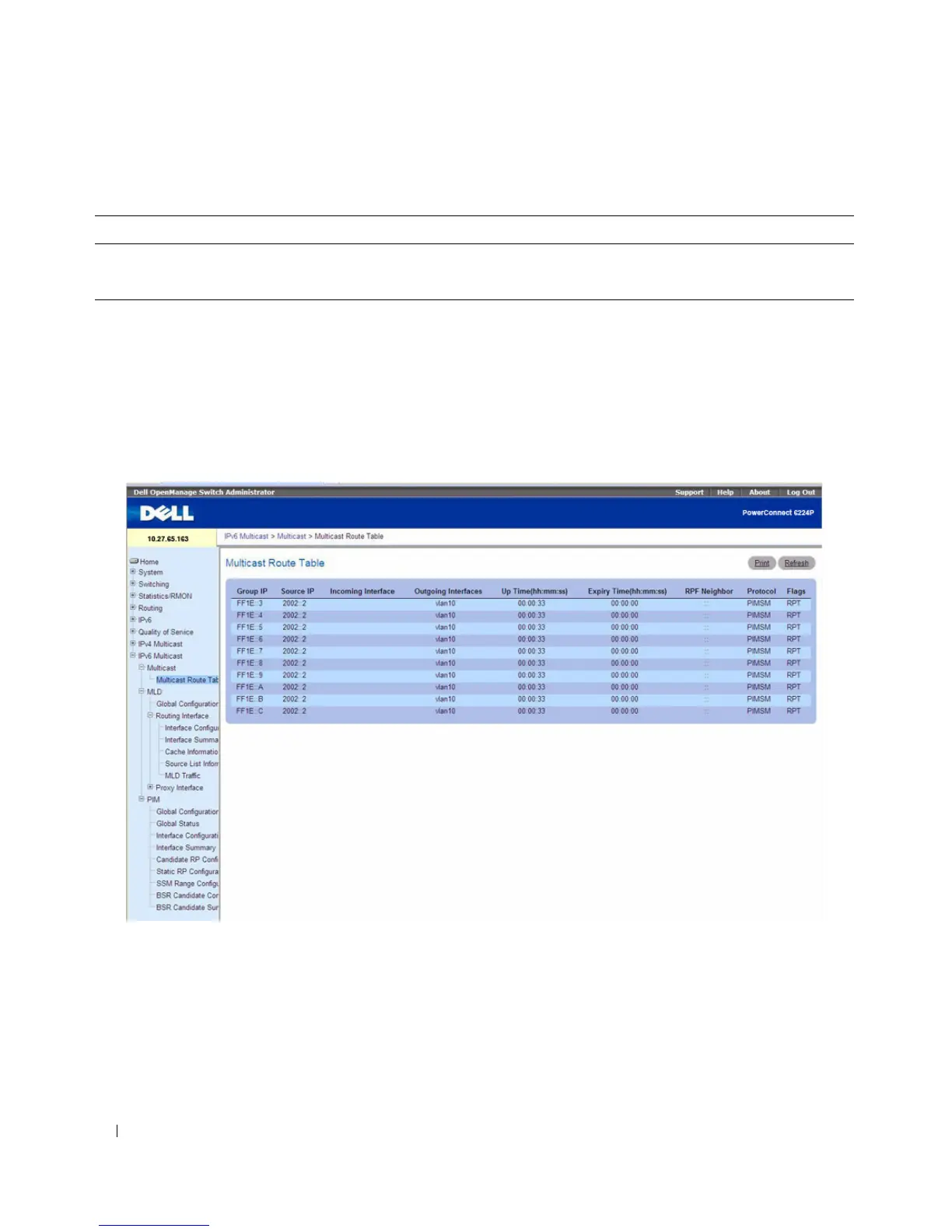

Figure 12-3. Multicast Route Table
The Multicast Route Table page contains the following fields:
• Group IP — The destination group IP address.
•
Source IP — The IP address of the multicast packet source that, combined with the Group IP,
identifies an multicast route table entry.
•
Incoming Interface — The incoming interface on which multicast packets for this source/group arrive.
Table 12-2. Multicast Interface Configuration Commands
CLI Command Description
ip multicast ttl-threshold Applies a ttlvalue to a routing interface.
show ip mcast interface Displays the multicast information for the specified interface.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
