Aggregating Ports
Link Aggregation allows one or more full-duplex (FDX) Ethernet links to be aggregated together to form
a Link Aggregation Group (LAG). This allows the networking switch to treat the LAG as if it is a single
link.
Static LAGs are supported. When a port is added to a LAG as a static member, it neither transmits nor
receives LACPDUs.
To display the Link Aggregation menu page, click Switching
→ Link Aggregation in the tree view. The
Link Aggregation page contains links to the following features:
• LACP Parameters
•LAG Membership
• LAG Hash Configuration
• LAG Hash Summary
LACP Parameters
Link Aggregation is initiated and maintained by the periodic exchanges of LACPDUs. Use the LACP
Parameters page to configure LACP LAGs.
To display the LACP Parameters page, click Switching
→ Link Aggregation → LACP Parameters in the
tree view.

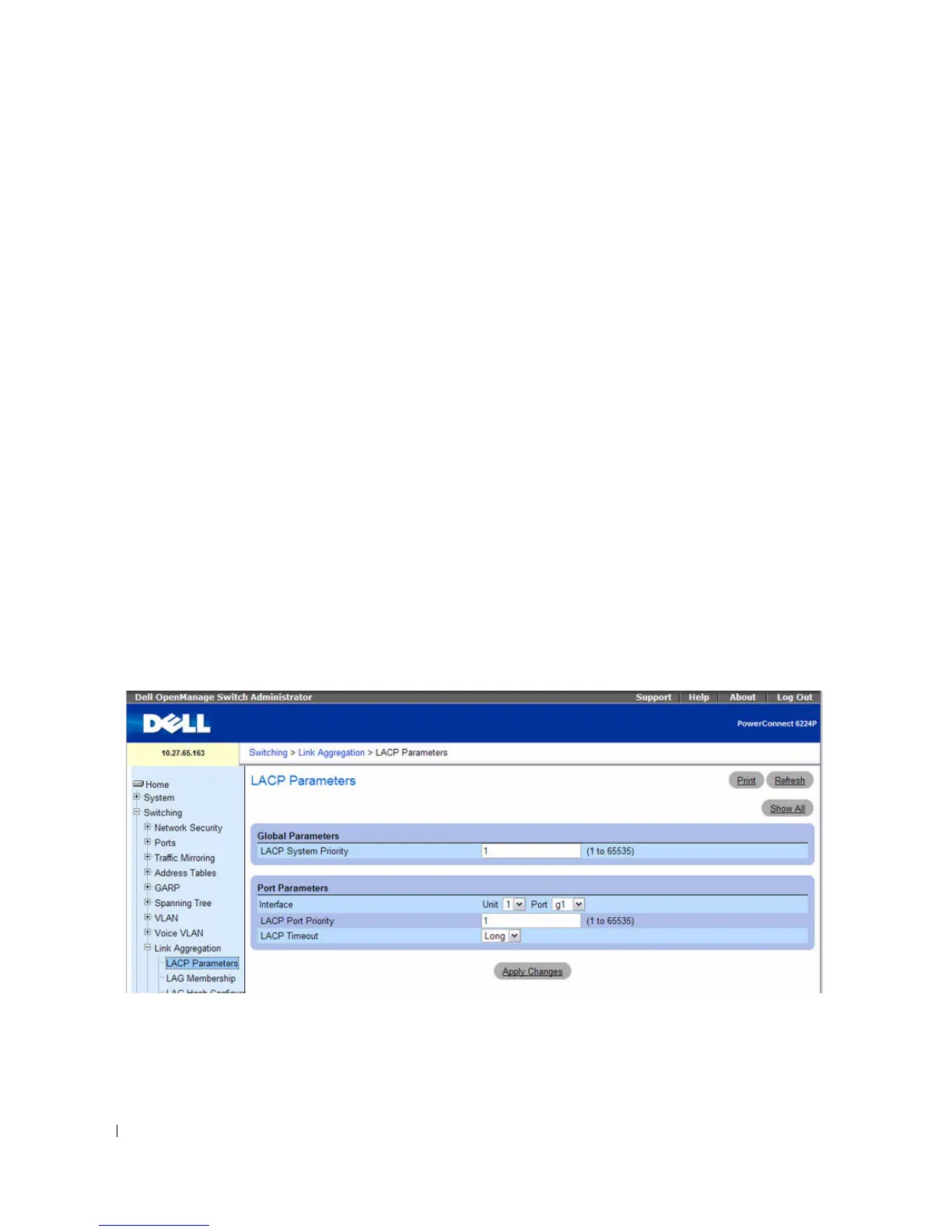

Figure 7-68. LACP Parameters
The LACP Parameters page is divided into two sections: Global Parameters and Port Parameters.
Following are the fields on this page:

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
