698 Configuring Quality of Service
Service Configuration
Use the Diffserv Service Configuration page to activate a policy on a port.
To display the
page, click Quality of Service → Differentiated Services → Service Configuration in the
tree view.

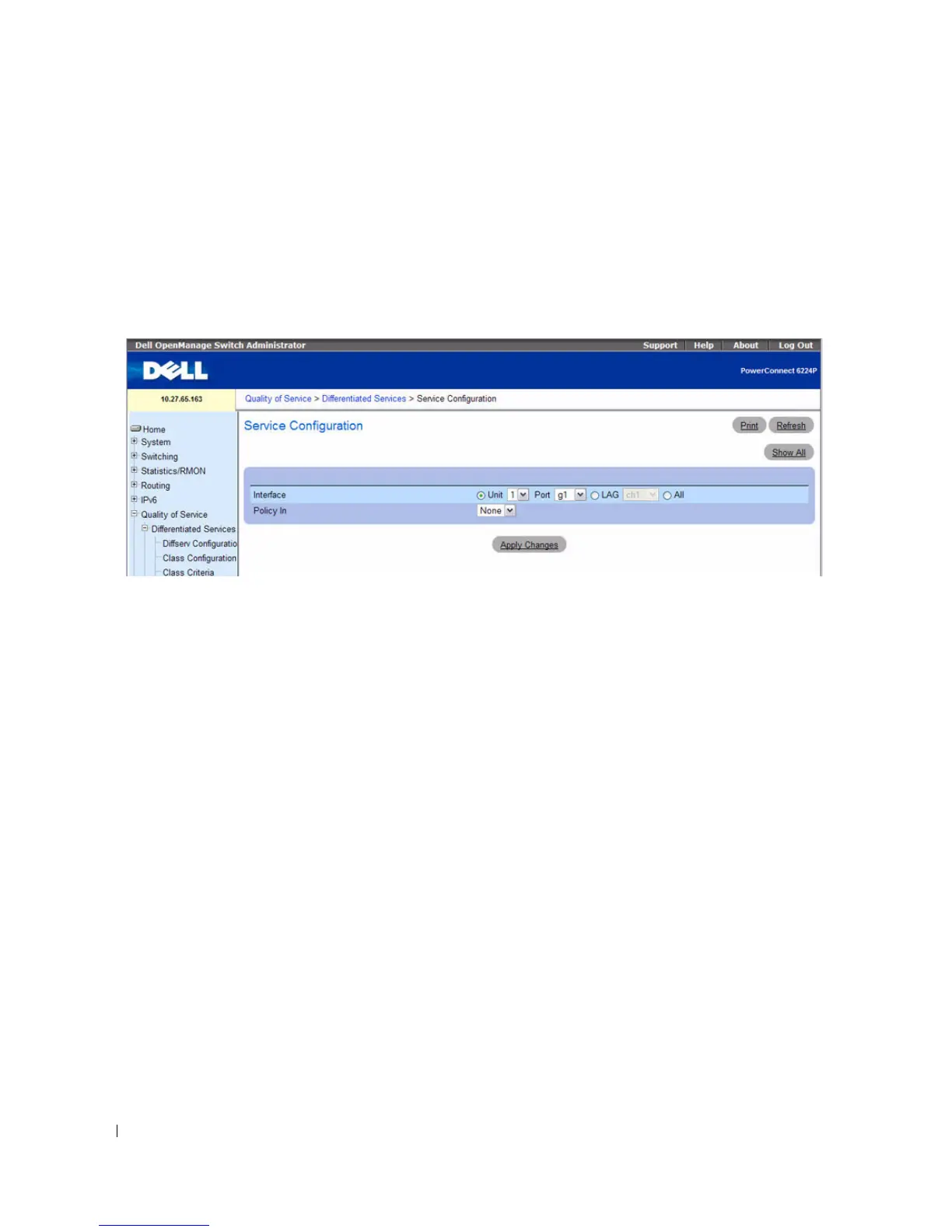

Figure 11-13. Diffserv Service Configuration
The Diffserv Service Configuration page contains the following fields:
• Interface — Selects the interface (Unit/Port, LAG, or All) to be affected from drop-down menus.
•
Policy In — Selects the policy to be associated with the port from a drop-down menu.
Activating a Policy on a Port
1. Open the Diffserv Service Configuration page.
2. Select the interface from the drop-down menus.
3. Select the policy from the drop-down menu.
4. Click Apply Changes .
The policy is activated on the interface, and the device is updated.
Displaying Diffserv Service Summary
1. Open the Diffserv Service Configuration page.
2. Click Show All .
The Diffserv Service Summary page displays.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
