52 Cable and Port Information
Bay 1 and Bay 2 Interfaces
The Dell™ PowerConnect™ 6200series switches support dual 10 Gb slot interfaces. These interfaces can
operate at 10 Gbps when supporting optional SFP+, CX4, XFP, and 10GBase-T modules.

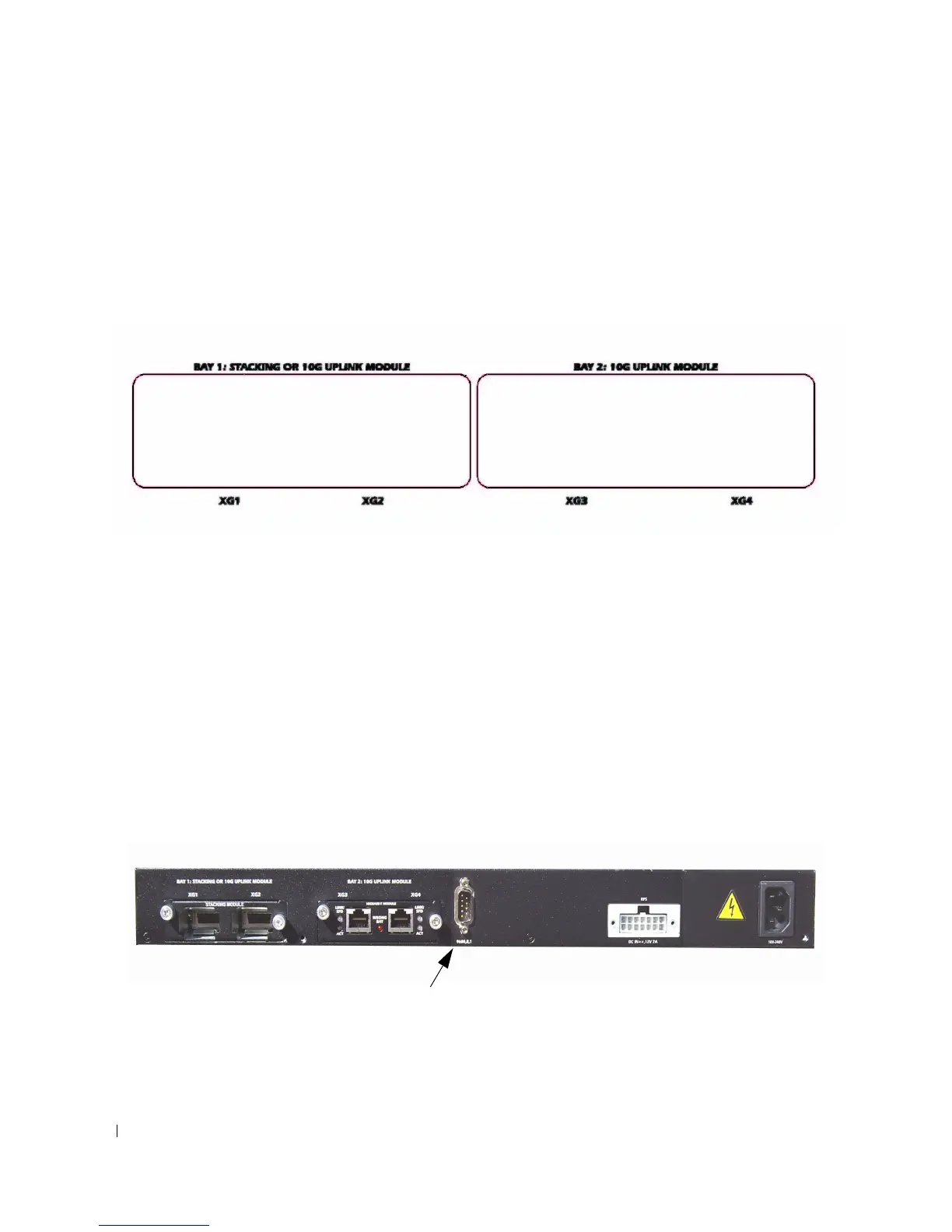

Figure 3-3. Bay 1 and Bay 2 PowerConnect 6200 Series 10 Gb Slots
Serial Cable Connection
You can use the supplied serial cable (null-modem) to connect the switch to a terminal for initial setup
and configuration (You can also use a computer running terminal emulation software). The switch’s
serial cable is a female to female DB-9 crossover cable.
Connecting the Switch to a Terminal
1. Connect the serial cable to the terminal (console) ASCII DTE RS-232.
2. Connect the serial cable to the switch’s serial port.
3. If you are configuring a stack, connect the interface cable to the serial port of the Master switch.
Figure 3-4. Serial Connection to Switch
Serial Connector to Console

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
