Dell PowerConnect 6224 User Manual

528 Configuring Routing
Interface Configuration
Use the OSPF Interface Configuration page to configure an OSPF interface.
To display the page, click Routing
→ OSPF → Interface Configuration in the tree view.

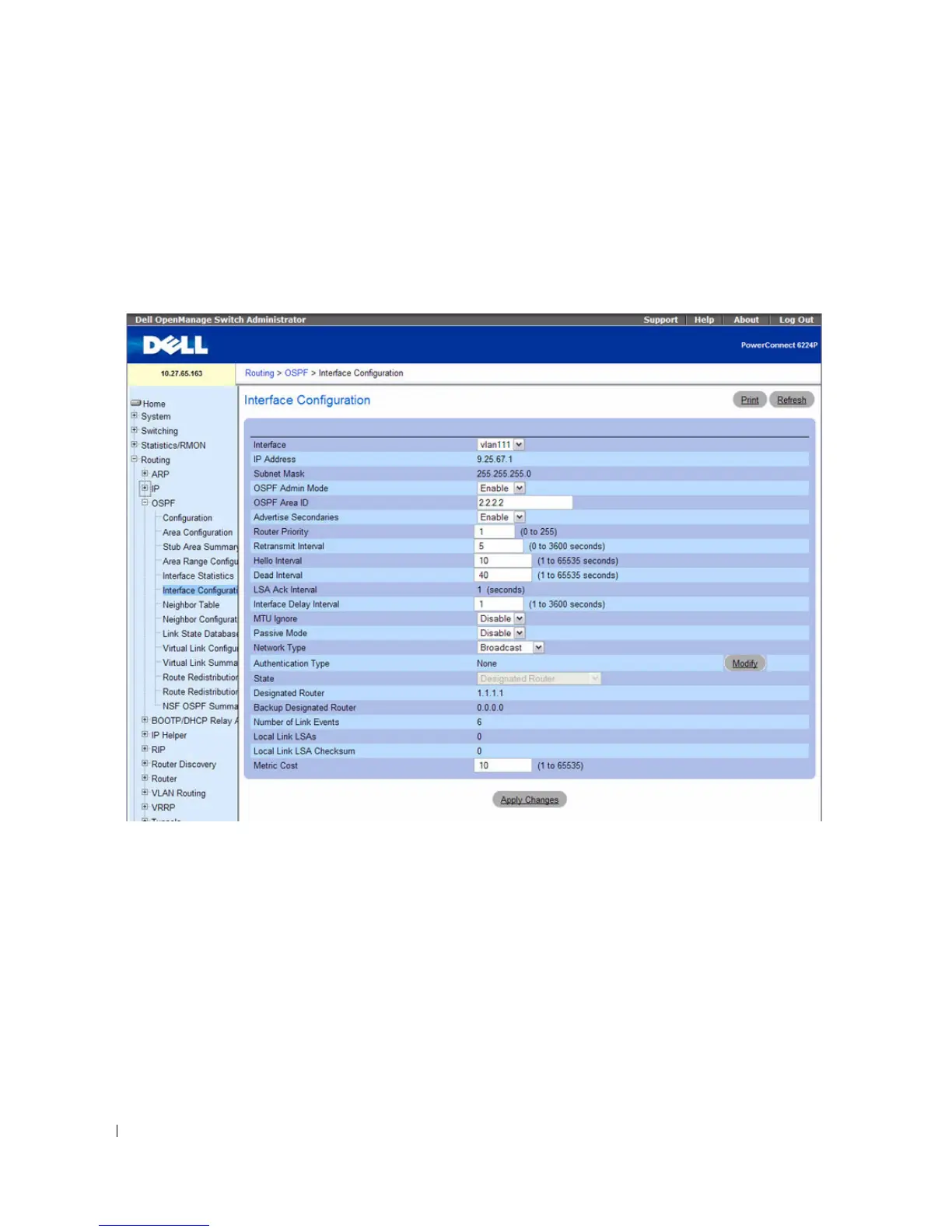

Figure 9-11. OSPF Interface Configuration
The OSPF Interface Configuration page contains the following fields:
• Interface — Select the interface for which data is to be displayed or configured from the drop-down
menu.
•
IP Address — Displays the address of the VLAN Interface.
•
Subnet Mask — Displays the subnet mask of the VLAN Interface.
•
OSPF Admin Mode — You may select Enable or Disable from the drop-down menu. The default
value is
Disable . You can configure OSPF parameters without enabling OSPF Admin Mode, but they
have no effect until Admin Mode is enabled. The following information is displayed only if the Admin
Mode is enabled:
State , Designated Router, Backup Designated Router , Number of Link Events , LSA
Ack Interval
, and Metric Cost . For OSPF to be fully functional, you must enter a valid IP Address and
Subnet Mask through the IP Interface Configuration page.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
