Configuring IP Multicast 717
Multicast Interface Configuration
Use the Multicast Interface Configuration
page to configure the TTL threshold of a multicast interface.
You must configure at least one router interface before fields display on this page.
To display the page, click IPv4 Multicast
Multicast
Interface Configuration in the tree view.

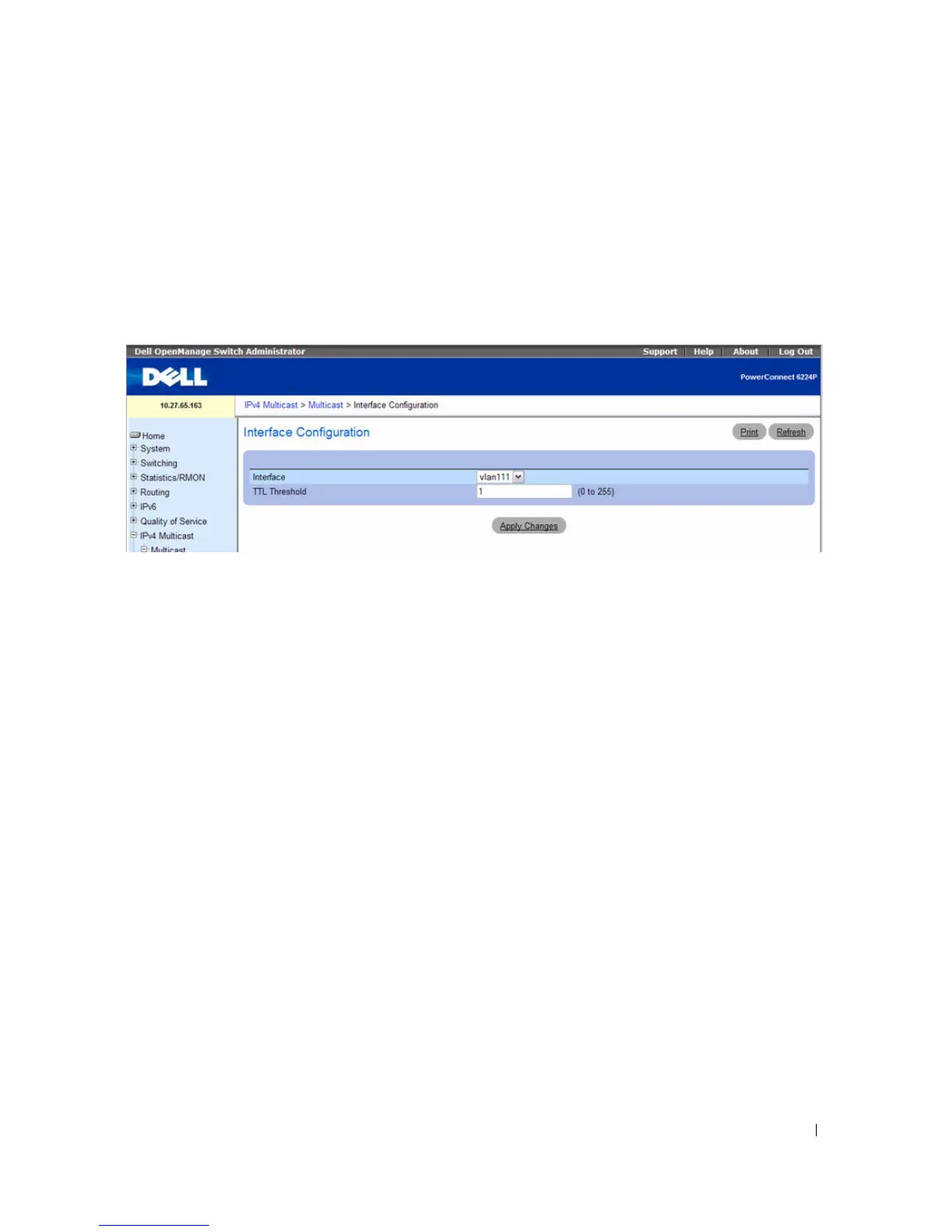

Figure 12-2. Multicast Interface Configuration
The Multicast Interface Configuration page contains the following fields:
Interface
— Select the routing interface you want to configure from the drop-down menu.
TTL Threshold
— Enter the TTL threshold below which a multicast data packet is not forwarded
from the selected interface. Enter a number between 0 and 255. If you enter 0, all multicast packets for
the selected interface are forwarded. You must configure at least one router interface to see this field.
Configuring a Multicast Interface
1.
Open the
Multicast Interface Configuration
page.
2.
Select the interface to configure from the
Interface
drop-down menu.
3.
Enter the desired
TTL Threshold
.
4.
Click
Apply Changes
.
The multicast interface configuration is saved, and the device is updated.
Configuring a Multicast Interface Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
Multicast Commands
