Dell PowerConnect 6224 User Manual

304 Configuring Switching Information
MAC ACL Configuration
The MAC ACL Configuration page allows network administrators to define a MAC-based ACL. For an
explanation of ACLs, see "IP ACL Configuration."
To display the MAC ACL Configuration page, click Switching
→ Network Security → Access Control
Lists
→ MAC Access Control Lists → Configuration in the tree view.

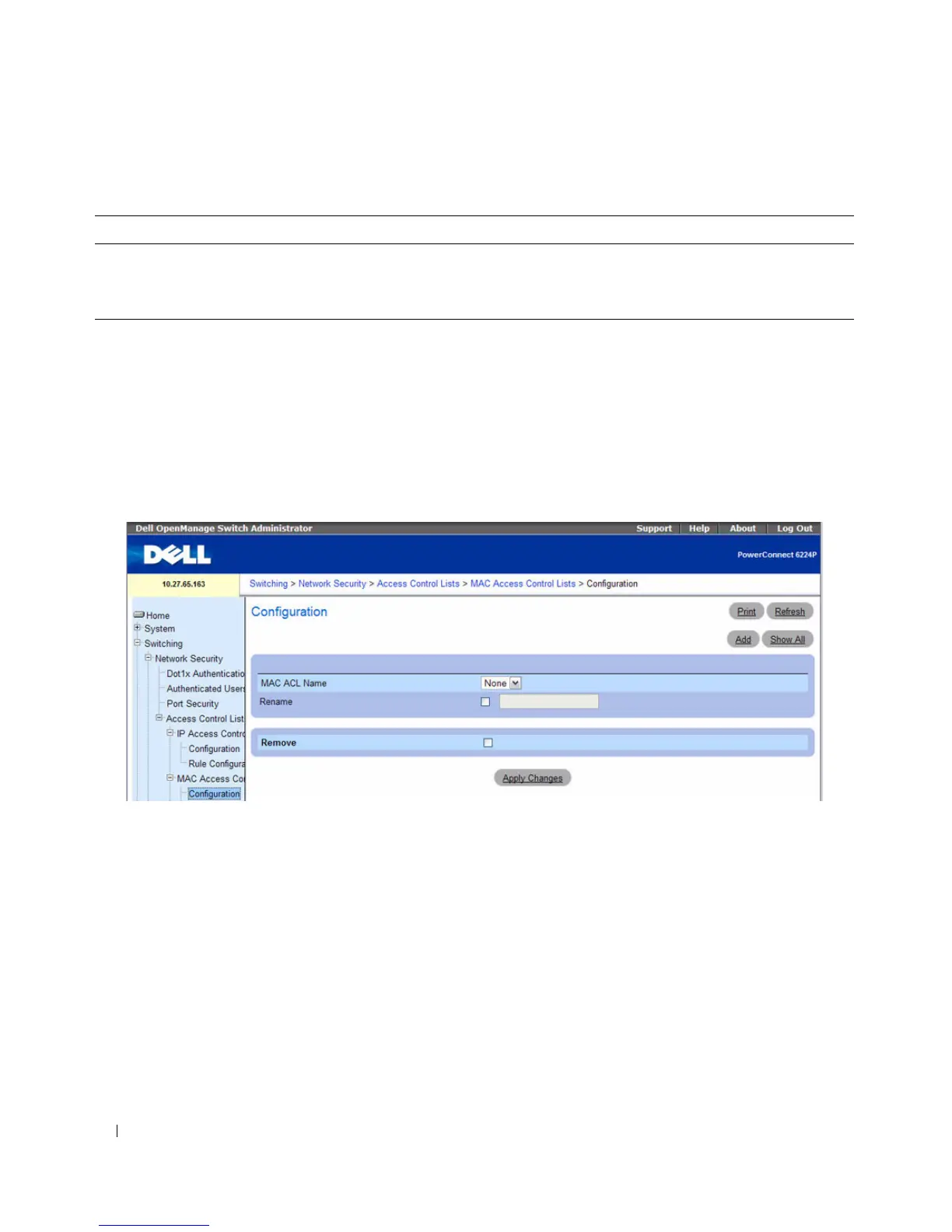

Figure 7-10. MAC ACL Configuration
The MAC ACL Configuration page contains the following fields:
• MAC ACL Name — User-defined ACL name.
•
Rename MAC ACL — To rename the MAC ACL, select the check box and enter a new MAC ACL
name in the field.
•
Remove — Click this field, then click the Apply Changes button to delete the MAC ACL listed in the
MAC ACL field.
Adding a MAC-based ACL
1. Open the MAC ACL Configuration page.
2. Click Add to display the Add MAC ACL page.
Table 7-5. IP Access Rule Command
CLI Command Description
access-list Use this command to specify rules for the IP access list.
show ip access-lists Displays an Access Control List (ACL) and all of the rules that are
defined for the ACL.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
